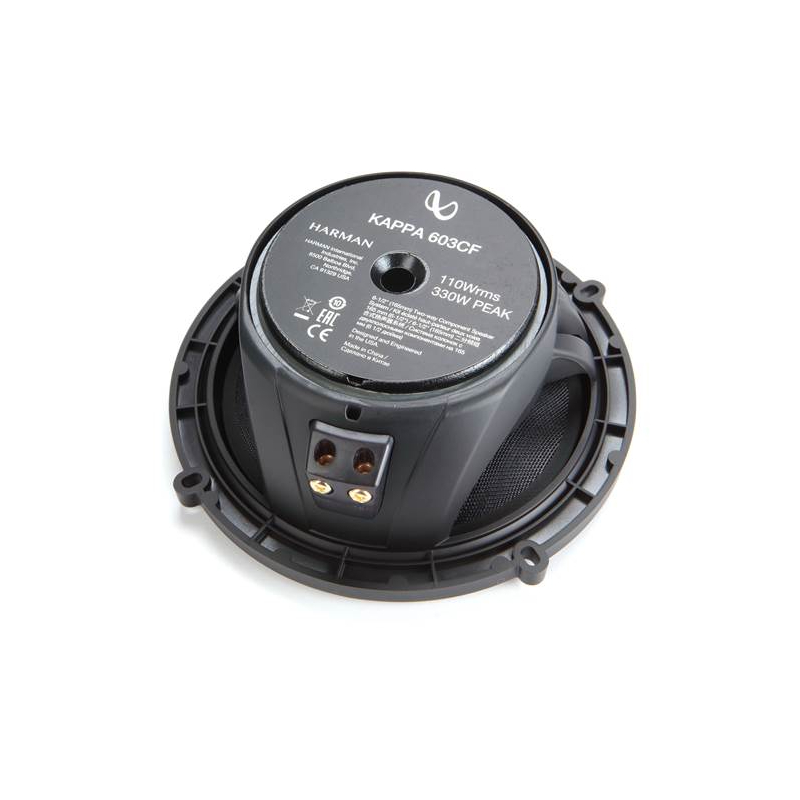

Infinity Kappa 603CF 6.5” 110W RMS (330W Peak Power Handling) 2-Way car audio component system w/gap switchable crossover / No grill
We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

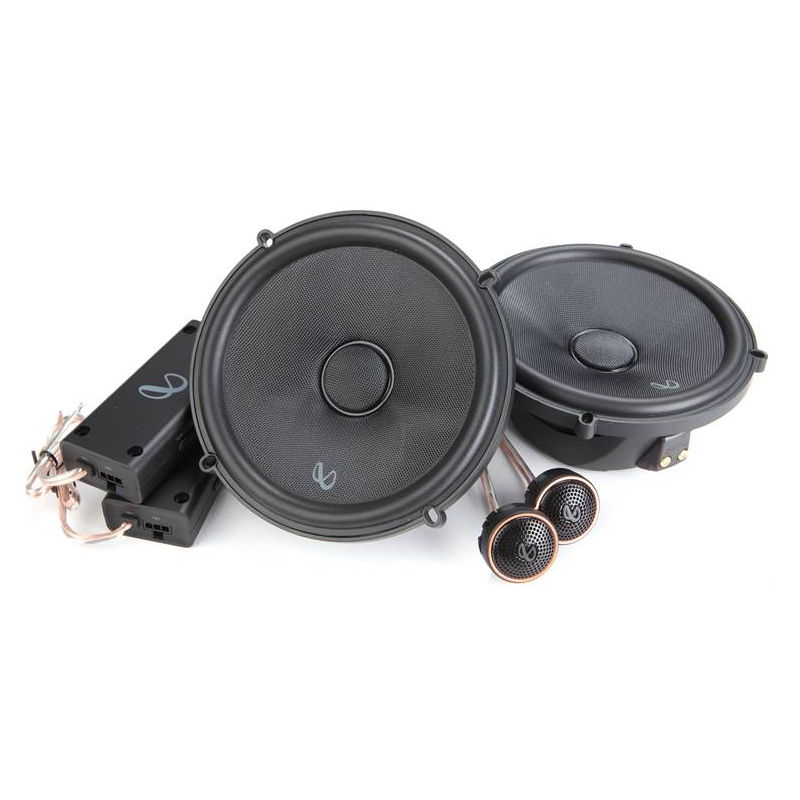

What's Inside?
- • 2 Woofers
- • 2 Tweeters (each has a 6" speaker lead attached terminated with male quick-slides)
- • 2 Woofer adapter brackets
- • 2 Crossovers
- • 2 Threaded flush-mount cups
- • 2 Plastic locking nuts
- • 2 Surface-mount cups
- • 2 Starfish mounts
- • Eight 1-1/2" Allen head screws
- • 3mm Allen head bit
- • Eight 1-3/8" Screws
- • Eight 1/2" Screws
- • Six 3/8" Flat head screws
- • 16 Speed clips
- • 2 Adhesive backed Infinity logo badges
- • 2 Adhesive backed foam gaskets
- • Template on box
- •Installation instructions
2-way Component Speaker System
Car audio systems have been getting more sophisticated with time, and the Infinity Kappa 603CF has largely benefited from that. With its new and improved design, this 2-way component speaker system has become sought-after for car audiophiles who love to listen to excellent music performances while on the road. Thanks to its high-quality materials, you get a high-end full-range frequency reproduction without breaking the bank.
Woofer Cone and Surround

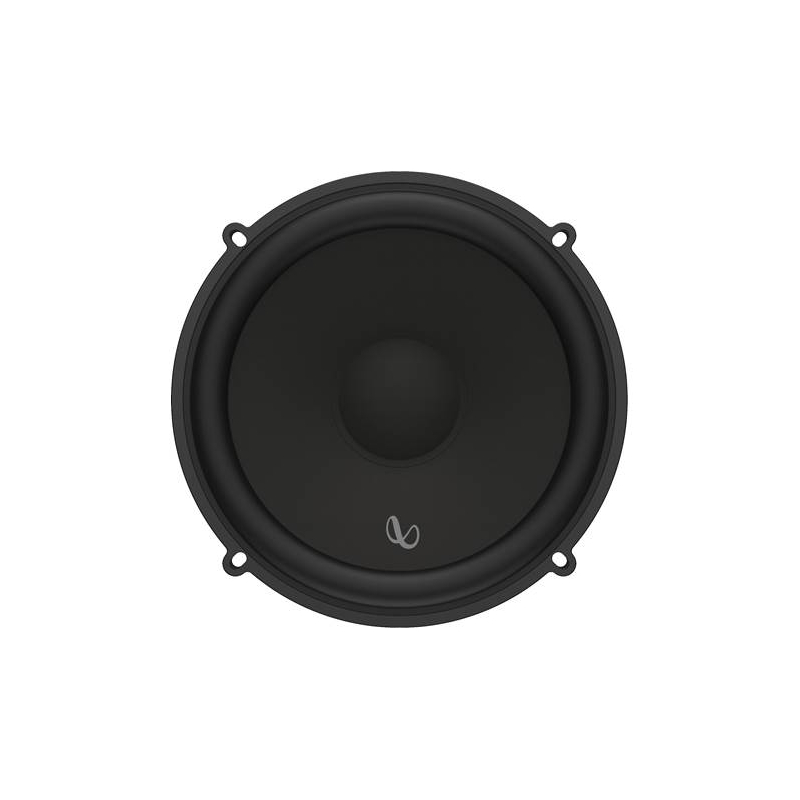

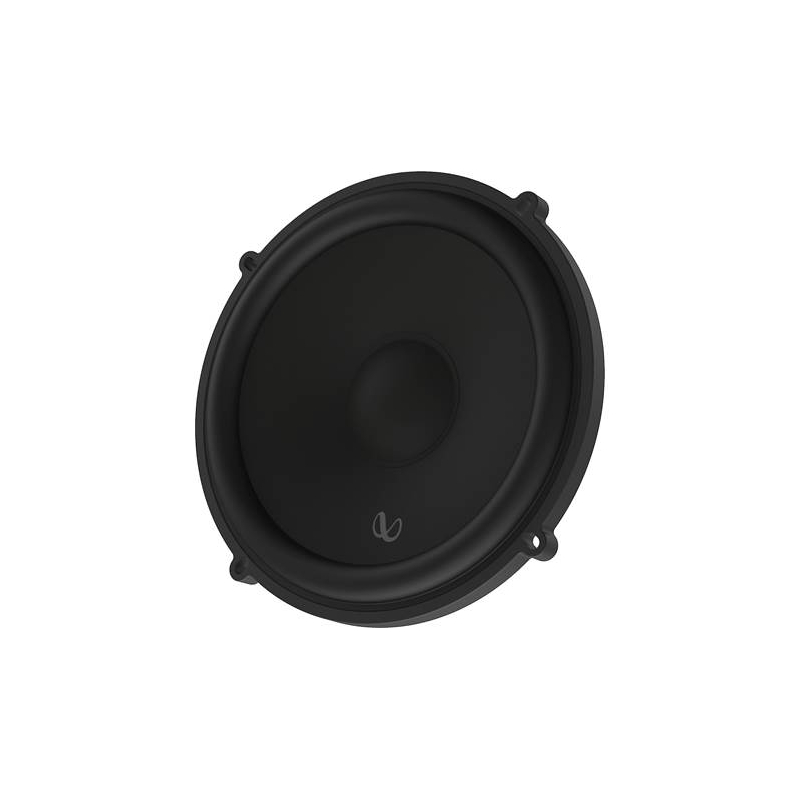

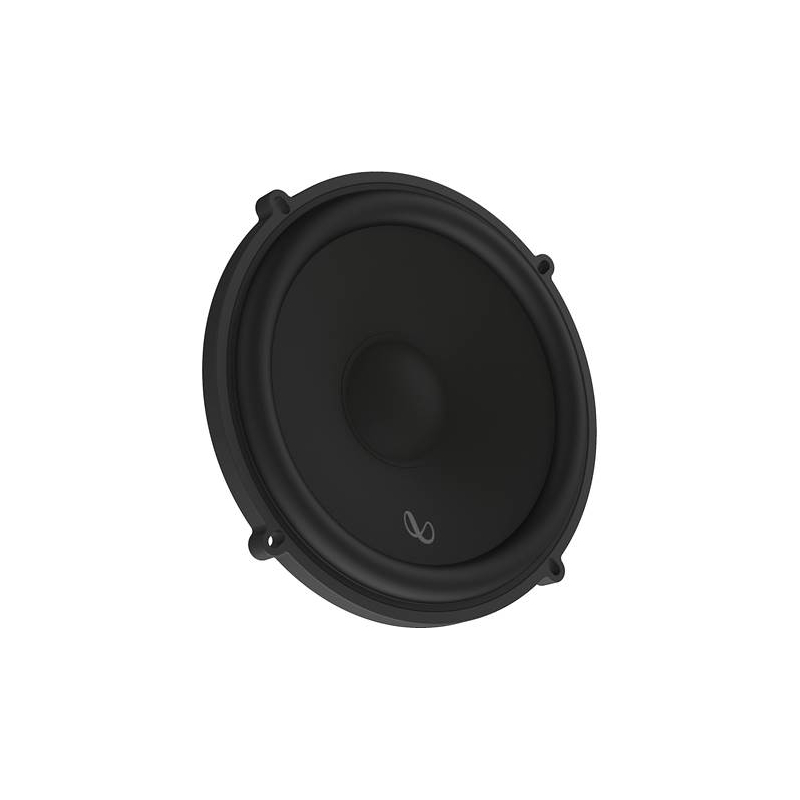

The Infinity Kappa 603CF’s woofer is made of glass fiber and comes with a rubber surround to ensure that you still get an accurate and punchy bass performance even if you are using it at high volume levels for an extended period. The cone also extends right up to the basket, giving it a larger cone area, resulting in a bigger bass sound that perfectly matches its high-frequency production.
Power Handling
The Infinity Kappa 603CF can handle a power output of 220 Watts RMS per set and can go up to 660 Watts of peak power at a 3-ohm impedance. It has a frequency response of 40 Hz up to 40 kHz, which is a pretty extensive high-frequency response for a 3/4-inch tweeter, and it also has a sensitivity rate of 93 dB, allowing the speaker to go loud quickly and easily with minimal distortion.
- Diameter : 6.5 Inch
- Sensitivity : 93 dB
- Frequency Response : 500-7000 Hz
- Peak Power Handling : 330 Watts
- Woofer Composition : Glass Fiber
- Tweeter Composition : Silk
- RMS Power Handling : 110 Watts
Features:

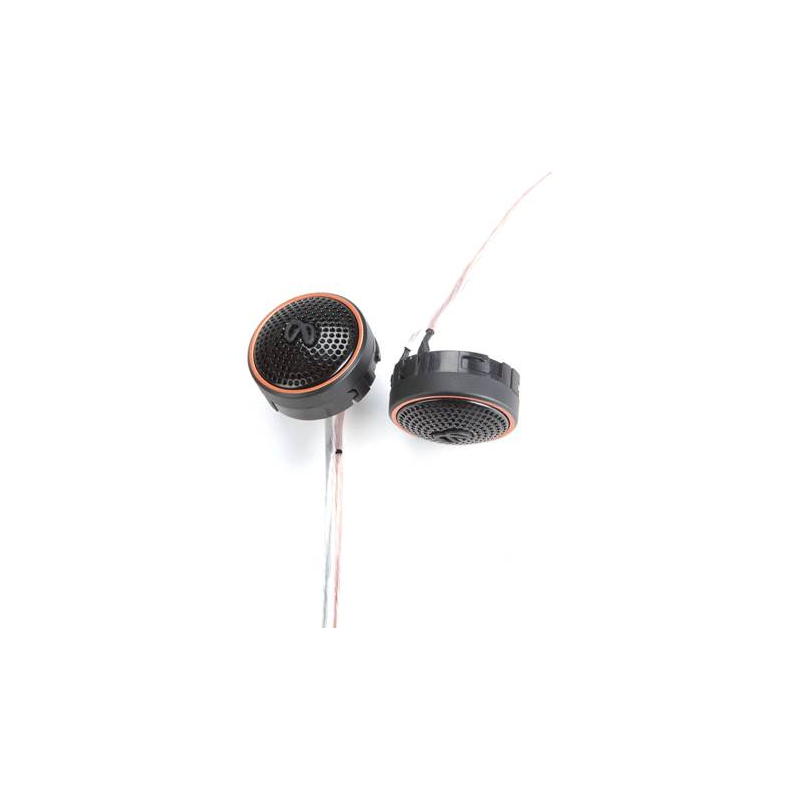

- 40kHz High-resolution Silk Dome Tweeter: Kappa edge-driven silk dome tweeters equipped with oversized voice coils deliver silky smooth highs with impressive thermal power handling and 40kHz high resolution.
- Patented Plus One™ Glass Fiber Woofers: Infinity’s glassfiber woofer cones are lighter and stiffer with more cone-area than the competition, delivering increased low-frequency output and higher efficiency. Hearing is believing .
- 0dB or -3dB Tweeter Output Level Control: The push-button on the angled tweeter allows tweeter output level control of 0dB or -3dB to optimize system linearity based on installation location.
- UniPivot and Angled Tweeter: For 5-1/4”, 6-1/2” and 6”x 8” coaxial models, the tweeters are angled and can be rotated 270° after installation on most models. This gives you imaging options and the ability to elevate the soundstage on low mounted speakers.
- 3-way Upgradability: Kappa 2-way component system crossovers are compact and equipped with 2-way and 3-way selections to accommodate a 2” or 3” midrange upgrade. The optional 2” or 3” midrange includes a bandpass crossover to upgrade a two-way system into a three-way system with perfect tonal balance.

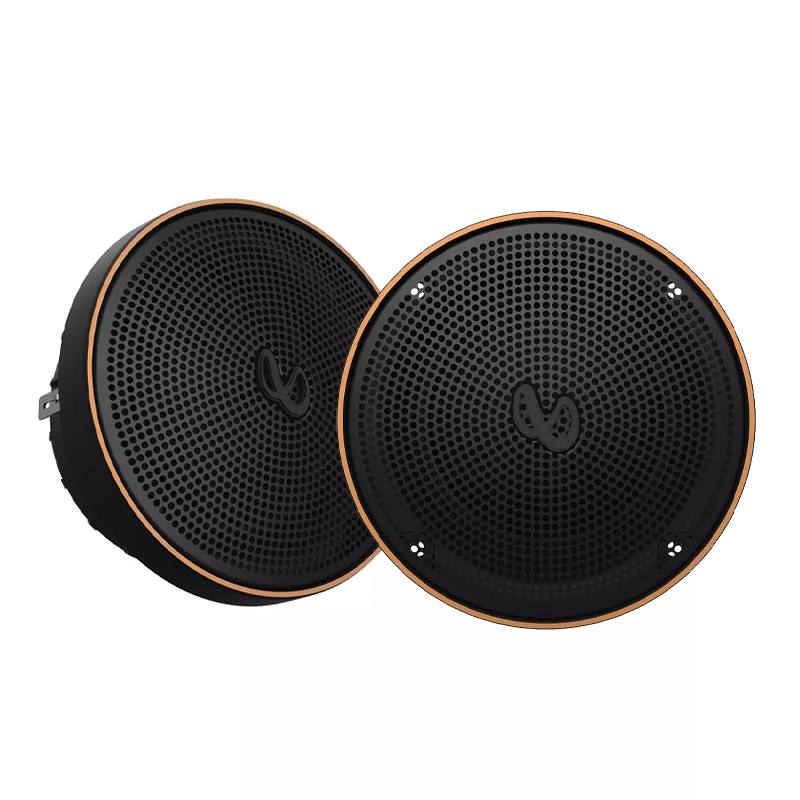

- Super Compact Design and High Sensitivity 3” Midrange Speaker: Kappa 3” midrange delivers low-frequency response to 300Hz while keeping high sensitivity over 89dB.The super compact design and premium performance allows the midrange to fit more vehicles without sacrificing any of your audio experience.
- Sleek and Powerful Industry Design: The essence of form and function, Kappa tweeters are elegantly designed deliver a car audio experience as powerful as it is beautiful

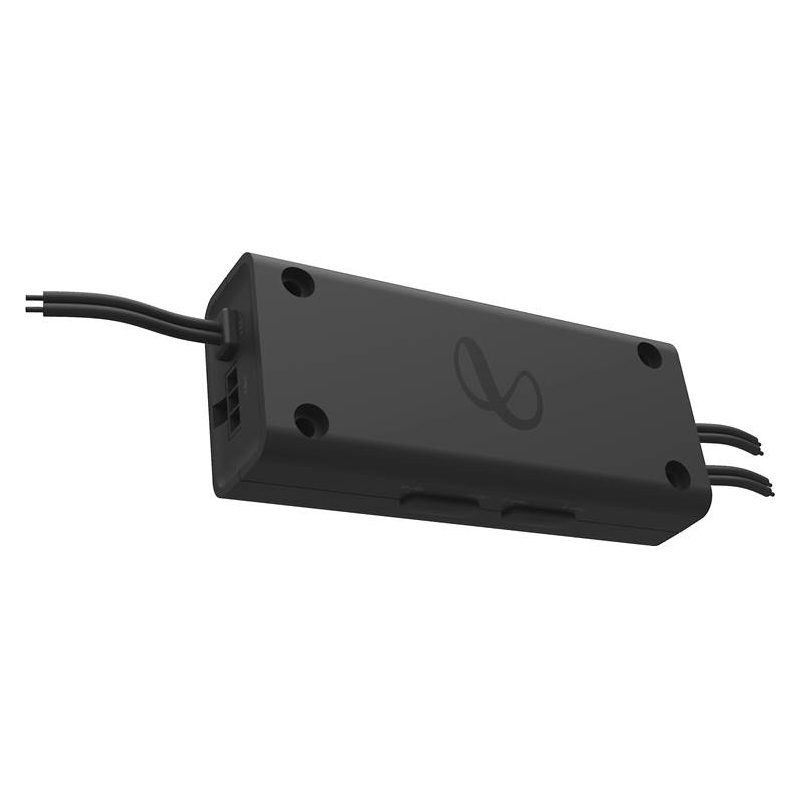

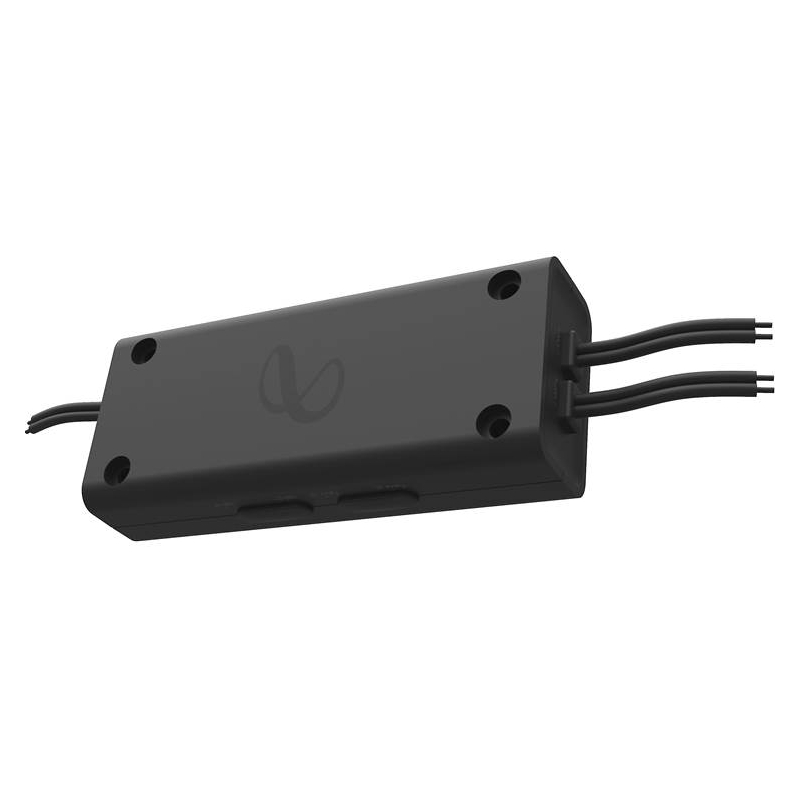

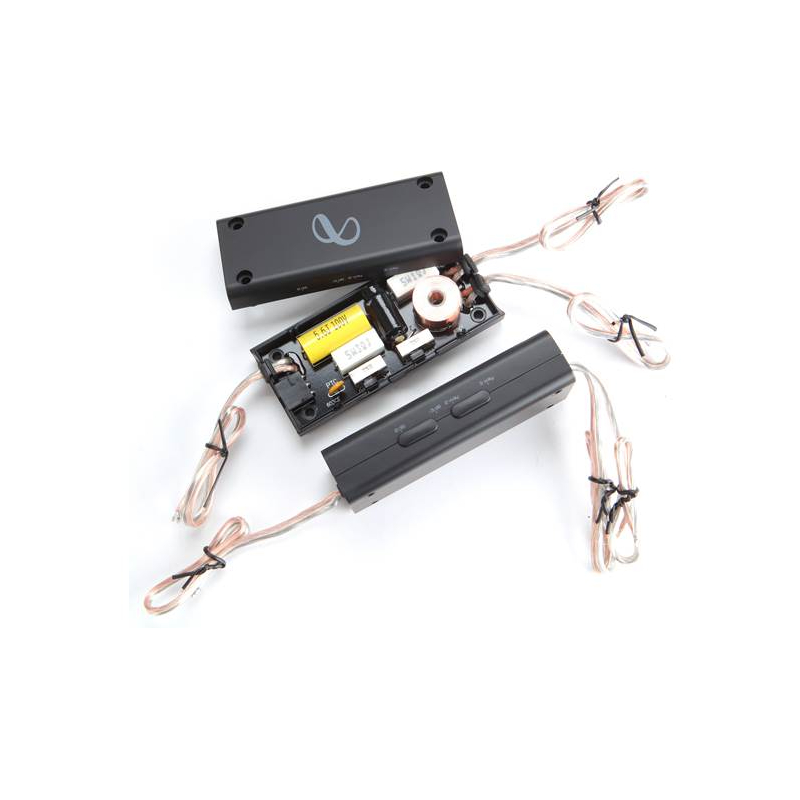

- Slim and Smart Crossover Design: Kappa component systems all have very slim crossovers, which equipped with connection cable for easy installation. The push-button on crossover allows tweeter output level control of 0dB or -3dB to optimize system linearity based on installation location.
Specifications:
- Speaker Size: 6 1/2
- Design: 2-way
- Tweeter Design Edge-Driven Dome
- Impedance (Ohms): 3
- Tweeter Composition: Silk
- Woofer Composition: Glass Fiber
- Woofer Surround: Rubber
- Parts Warranty: 3 Years
- Labor Warranty: 3 Years
- Sensitivity at 2.83 volts:93
- Frequency Response: 45 - 40k Hz
- Maximum RMS Wattage: 110
- Peak Power Handling (Watts): 330

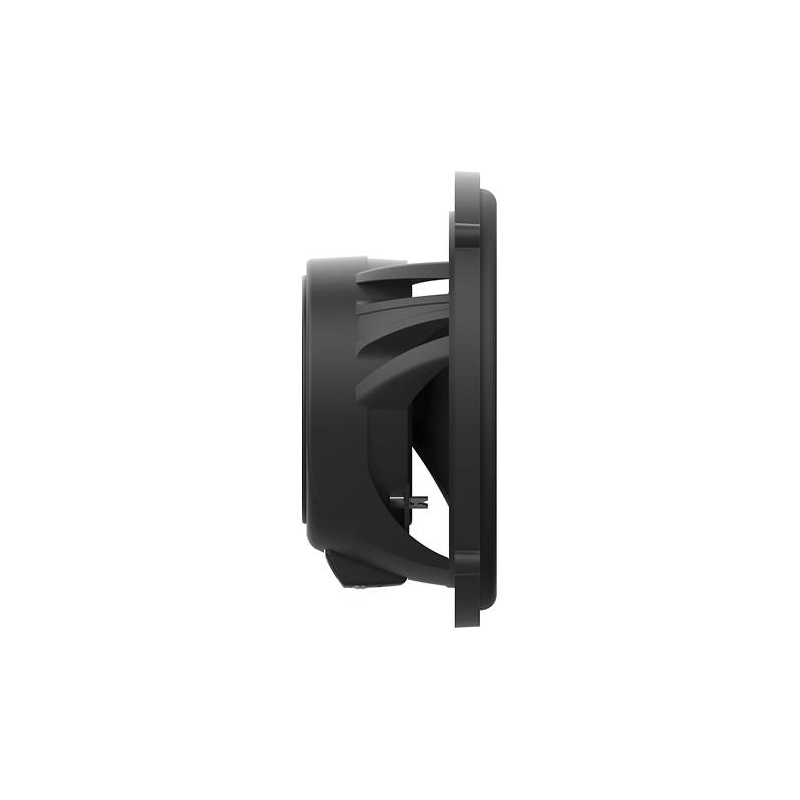

- Top-mount Depth (Inches): 2 1/8
- Bottom-mount Depth (Inches): 2 1/2
- Cutout Diameter or Length (inches): 5 3/16
- Mounting Height (Inches): 0.564
- Frame Width: 6.138
- Frame Length: 6.138
- UPC: 050667376949
- Weight: 12
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
