Orion :: XTR500.4 :: $120.00

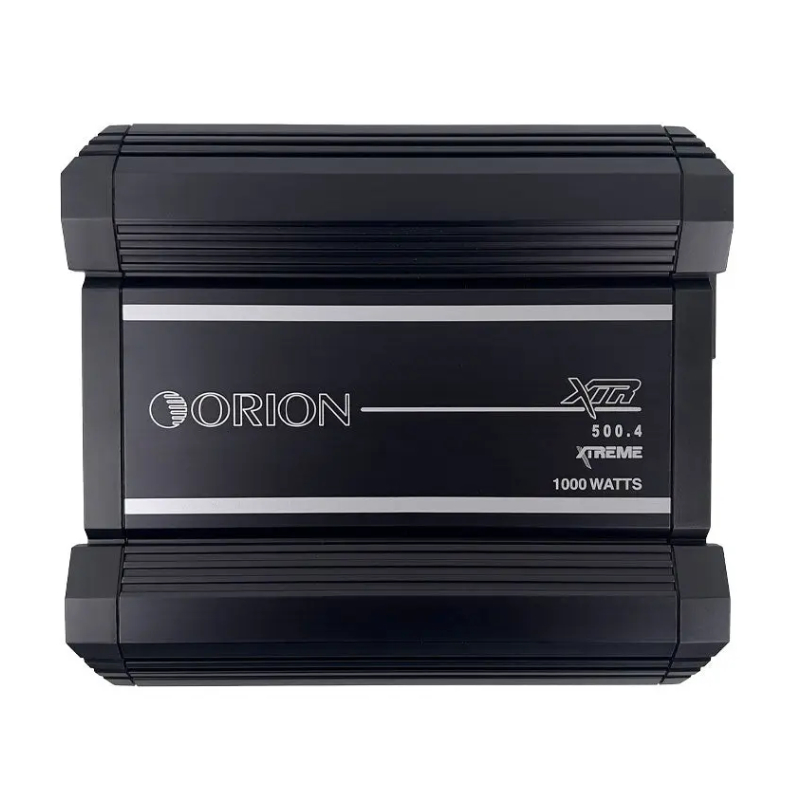

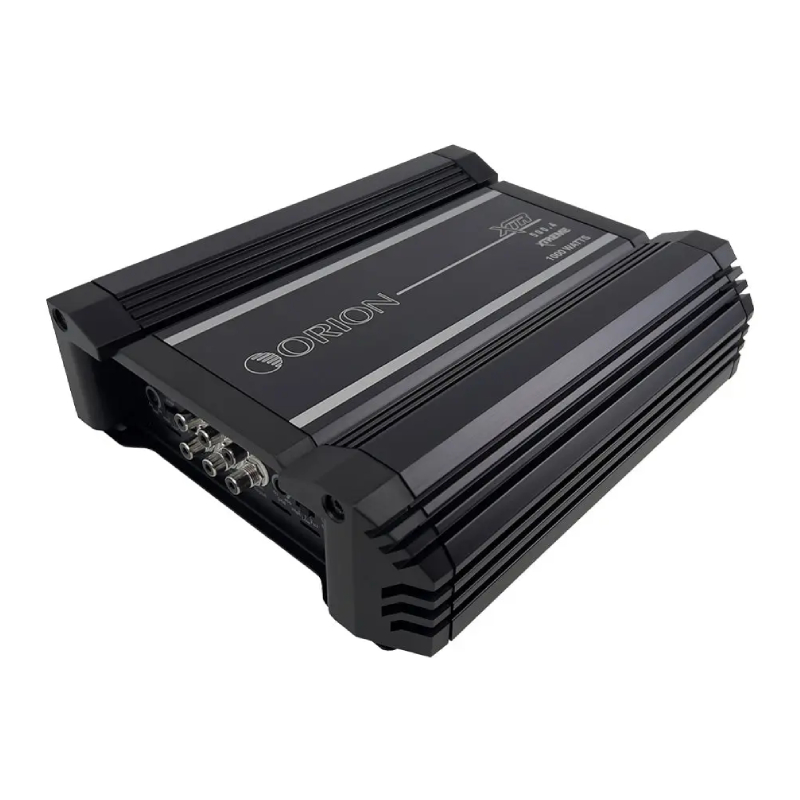

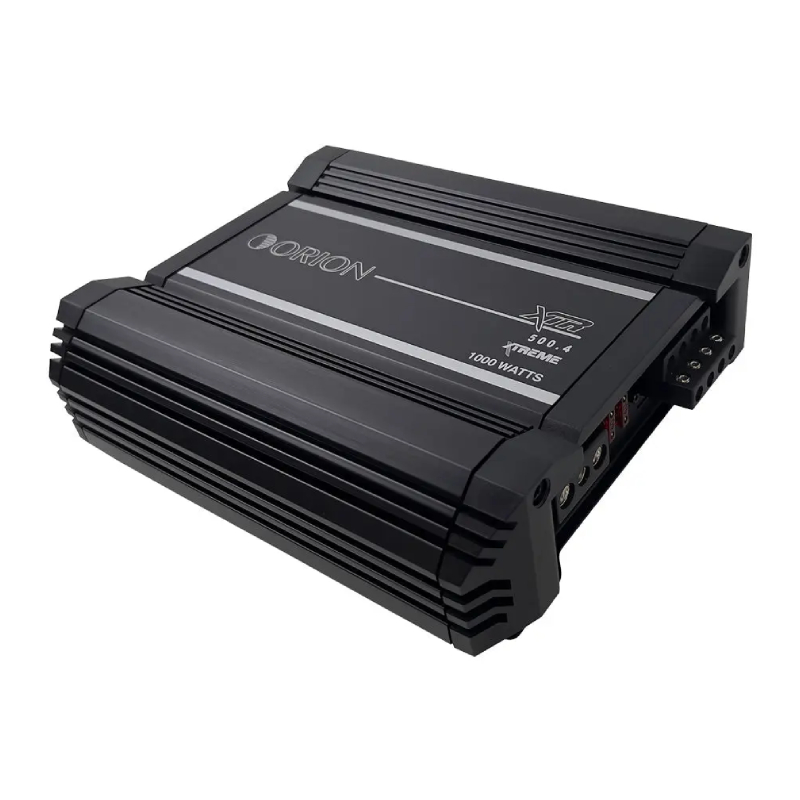

Orion XTR500.4

Item# 11230

XTR Series 1000 Watts Max Power 4-Channel Amplifier with Crossover

Sorry, this product is no longer available.

Highly Recommended Alternatives

The new XTR™ Amplifier line offers more models than before to adjust to the requirements of the installer. The XTR™ series innovates by offering the best power in their Class D Mono Subwoofer Amplifier series.

  • RMS Power Rating:
    • 4 ohms: 80 watts x 4 chan.
    • 2 ohms: 125 watts x 5 chan.
    • Bridged, 4 ohms: 500 watts x 1 chan.
  • Max power output: 1000 watts
  • MOSFET Power supply and output stage
  • Power and protection LED Indicators

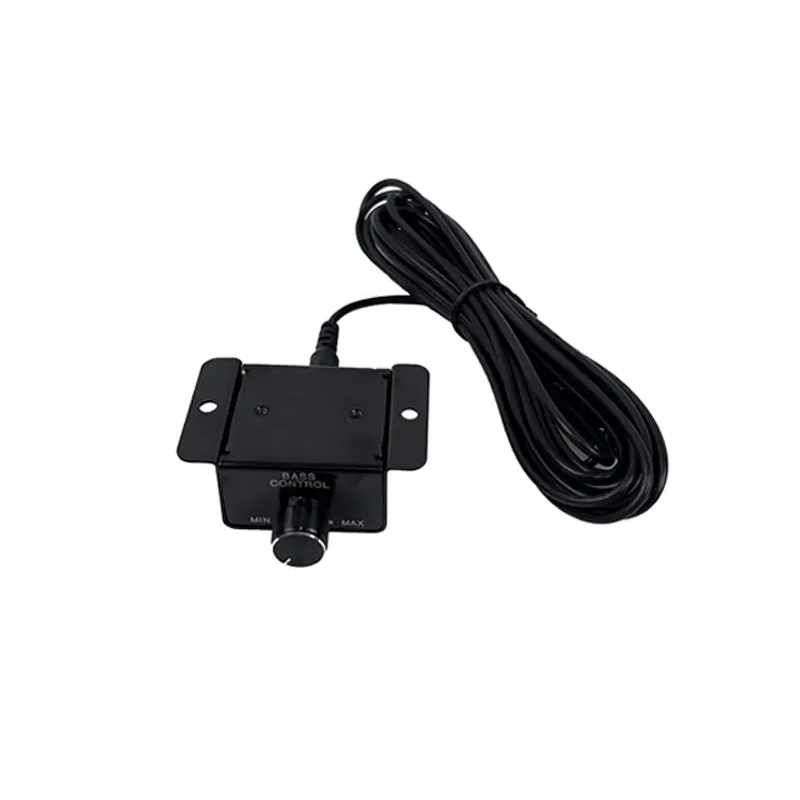

  • Remote gain control
  • Gain control continuously adjusts for full power output
  • IntelliQ Bass optimization circuit

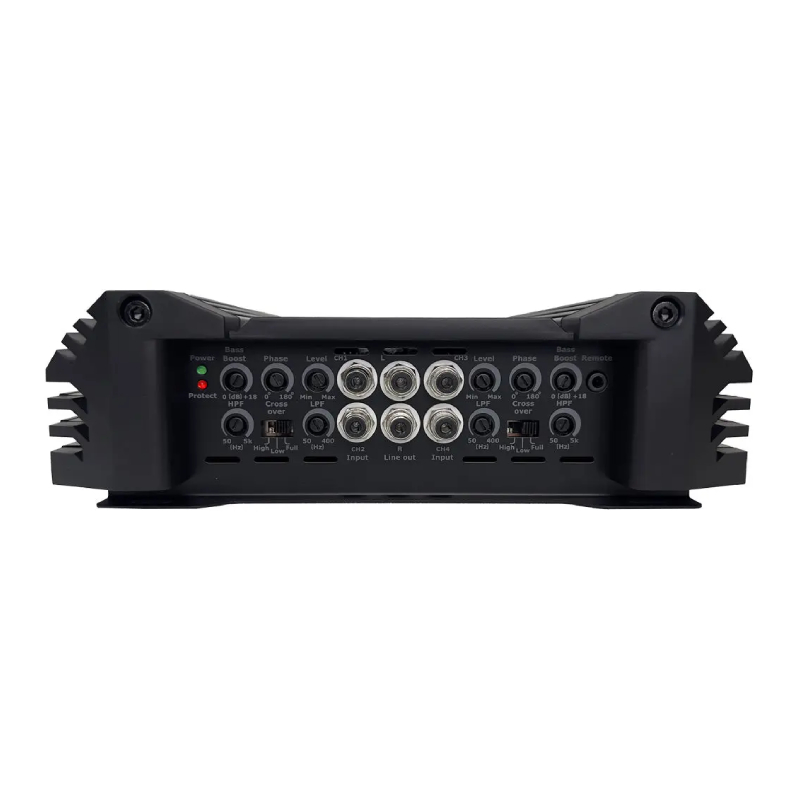

  • Low-level RCA Inputs
  • Accepts high-level speaker inputs from an OEM stereo
  • Thermal, DC offset, short protection and under-voltage protection
  • 6/5/4/3/2 Channel operation
  • X-Over (crossover) activates the low-pass, FLAT and high-pass crossovers
  • X-Over frequency control adjusts the frequency for the high- and low-pass filters
  • Silver-plated RCA level inputs

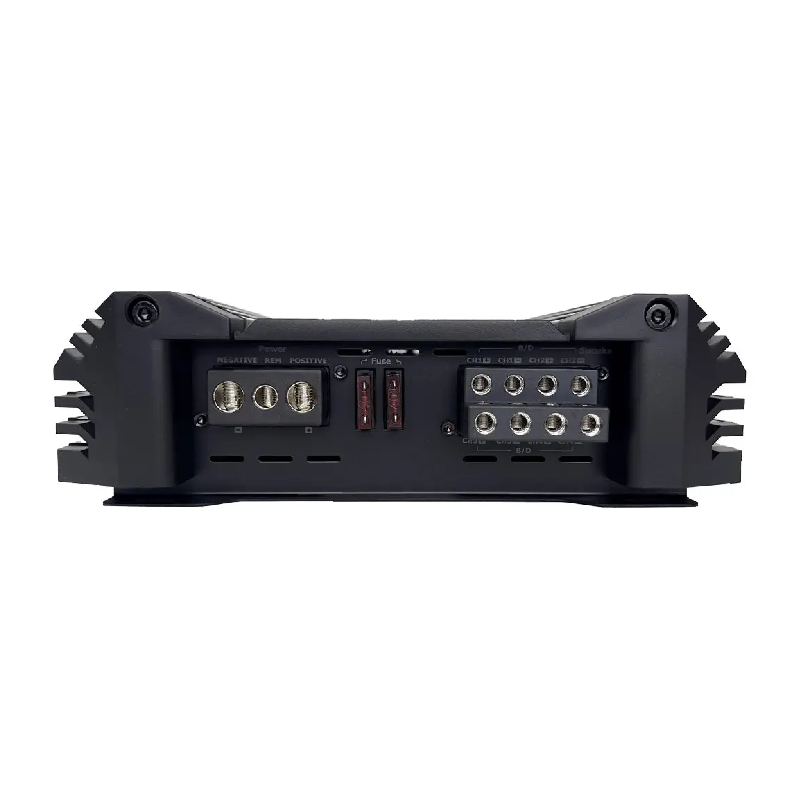

  • Silver-plated screw terminals
  • Variable high-pass filter (50-2,000 Hz, 12 dB/octave)
  • Variable Low-pass filter (50-2,000 Hz, 12 dB/octave)
  • Subsonic Filter (12 dB at 24 Hz)
  • Frequency response: 20-20,000 Hz
  • CEA-2006 compliant amplifier
  • Dimensions: 9.3"L x 14.5"W x 2.5"H
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • UPC: 093207061011
  • Weight: 15
  • Authorized Internet Dealer
*Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to for replacement within 30 days from the original date of purchase with proper return authorization. After the 30 day time period, products must be returned to their original manufacturer for the remainder of the manufacturer's warranty period.
