 Technical Specification |
|
|
| Features |
- RMS Power @ 4 Ohms: 200W x 2
- RMS Power @ 2 Ohms: 400W x 2
- Bridged RMS Power @ 4 Ohms: 800W x 1
- THD at 4-Ohm RMS Power: <1 %
- Preamp Outputs
- HP/LP Built-In Crossovers
- Bass Boost: 0-10 dB
- Frequency Response: 20-20,000 Hz
- Signal to Noise Ratio: 78 dB
- Fuse Rating: 100 amps

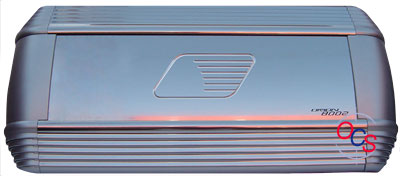

- Polished gunmetal heatsink with etched Orion logo
- Mil-Spec double-sided circuit boards
- Massive power supply
- Complementary bipolar output stage transistors
- Variable 20-3,000 Hz high-pass or low-pass crossover
- INTELLi Q Bass processing
- Variable 0-10 dB INTELLi Bass equalization
- Variable subsonic filter
- Satin finish direct-wire power and ground connections
- Proprietary Copy/Master feature for multi-amp systems
- Selectable preamp outputs
- Copy/Master switch for gain and crossover matching
- Separate variable crossover for preamp outputs
- Combine crossovers for band-pass operation
- Removable end caps
- Built-in MAXI high current fuse
- Full CEA-2006 compliant specifications
- Optional RGC-1 remote gain control
| Warranty: 1 Year Onlinecarstereo.com warranty. |
|
1 Year warranty from Onlinecarstereo.com implies that repairs must be returned to Onlinecarstereo.com, not the manufacturer. More information can be found in our help section under returns & warranties.
|
|
| Customer Reviews - Orion 8002 |
 Jeremy DuBose From Buna, Tx |
| This amplifier is awesome, I have had an X-plod 500 watt, and a Rockford Fosgate Power 750 watt, and neither of them could touch the Orion 8002, but I will tell you, the amp that I have had that performed like this one is the 1000 watt MB Quart, which is made by Fosgate... The bass hits hard, with no mercy, but with good sound quality, I pushed 4 Kicker Competition 15's in ported boxes with this amp... and it hammered them to the max. Also, it is unbelievable, but this amp is CEA rated, and it really puts out 350 watts x 2 @ 4 ohmns stereo and 1400 watts x 2 @ 2 ohms stereo, I have never had this amp over heat on me or anything, and I would reccomend that you get ported boxes, that way you get the use out of the intelli Q subsonic filter... So dont read what it says on the specs on this website, and if I were you, I would check into it... |
|
 Myron From Austin, Tx |
| This amp is a beast. I have it pushing two kicker cvr 12's in a ported box, and the sound quality is amazing, especially for this price. DONT SLEEP ON THIS ONE!! |
|
| mike From dayton oh |
| this amp is real good i have 2 audiobahn 12's on it and it bangs.but i going to up grade to 15's 2oh and bring out the beast in ORION i give this amp a big T-----E-----N |
|
Read more reviews [4]»
|
|
