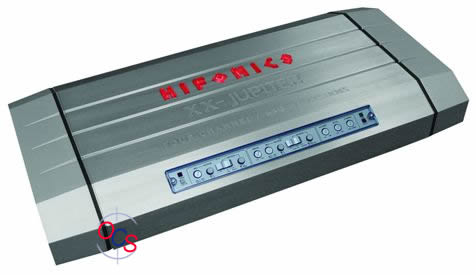

Hifonics  XX-Jupiter

4 Channel 4x75Watts A/B Amp.

Item #13983

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:



Huge Saving on Other items:



SPECIFICATIONS


  • Number of Channels : 4

FEATURES


  • Super A/B Design
  • 4-Ohm Power Rating: 4x75W
  • 2-Ohm Power Rating: 4x110W
  • 1-Ohm Power Rating: 4x140W
  • Mono Bridged at 4-Ohm (Power Rating): 2x250W
  • Mono Bridged at 2-Ohm (Power Rating): 2x350W
  • System Configurations Possible: 4/3/2-Channel
  • Turn-On Delay/ Mute
  • Frequency Response -3dB: 2Hz to 70kHz
  • Damping Factor: > 200
  • Signal To Noise Ratio: > 93 dB
  • THD + Noise: < 0.03%
  • Channel Separation at 1 kHz: >70 db
  • Variable Input Level Contol (RCA/Unbalanced): 0.2V - 9V
  • Variable Input Level Contol (Mini DIN Balanced): 0.4V - 18V
  • Variable Input impedance (RCA/Unbalanced): 0.6k - 47k-Ohm
  • Input Impedance, Balanced: 20k-Ohm
  • Hi Output Whisper Fan
  • Power and Specific Diagnositics LEDs
  • Protection DC, Short Circuit, Overload
  • Power Supply - All MOSFET
  • Power Output Circuit Type: Ultra-Fi MOSFET
  • Crossover and Switching for Channels 1/2: LP-BP/Full/HP
  • Variable High-Pass 12 dB Octave: 10Hz - 4kHz
  • Variable Low-Pass 12 dB Stereo, 24 dB Mono: 40Hz - 4kHz
  • Bass EQ: 0 - +18 dB
  • Variable High-Pass 12 dB Stereo: 10Hz - 4kHz
  • Variable Low-Pass 12 dBStereo, 24 dB Mono: 40Hz - 4kHz
  • Stereo/Mono Switch
  • Variable Phase Shift: Mono/Stereo
  • Phase Change in Degrees: 0 - +180
  • Channel Specific Phase Controls: CH-1/2 & 3/4
  • Balanced Inputs (DIN) for Optional XX BLD Line Driver
  • Unbalanced Input (RCA)
  • Line Output (RCA): CH-1/2/3/4 Full-Range
  • Gold Plated Power Terminal Blocks: 4-GA
  • Gold Plated Speaker Terminal Blocks: 10-GA
  • Dimensions - WxHxL (Inches): 11.10x2.75x17.4
  • UPC:
  • Weight: 0
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.

Do you own this product?

Write a review!
  • i am an expierenced audio fanactic hifonics has always made real good amps especially in the generation xx series and the jupiter is no exception this is one hell of an amp at 75x4 @4ohms it is underrated i recently hook it up 2 the Rainbow cmx 465.25 6.5components and it is clean,crisp,clear 1 fine amp.

    italianrivera1
    5/15/2007
