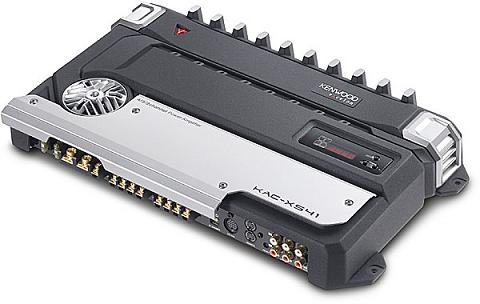

Kenwood Excelon  KAC-X541

960 Watts 4-Channel Power Amplifier

Item #14029

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:



Huge Saving on Other items:



SPECIFICATIONS


  • Maximum Power : 960 Watts
  • Number of Channels : 4

FEATURES


  • Bridged Power Output at 12V (1kHz, 0.5% THD): 180 Watts x 2
  • Bridged Power Output at 14.4V (1kHz, 0.5% THD): 240 Watts x 2
  • Maximum Output Power: 960 Watts
  • Power Output at 2 Ohms, at 12V (1kHz, 0.5% THD): 90 Watts x 4
  • Power Output at 2 Ohms, at 14.4V (1kHz, 0.5% THD): 120 Watts x 4
  • Power Output at 4 Ohms, at 12V (20Hz-20kHz, 0.05% THD): 45 Watts x 4
  • Power Output at 4 Ohms, at 14.4V (20Hz-20kHz, 0.05% THD): 60 Watts x 4
  • 5-Line Input for A.M.S. Control (from Receiver)
  • A.M.S. Amplifier Management System
  • A.M.S. In-Dash Receiver Interface
  • Balanced Isolation Circuit
  • Bass EQ Frequency Control: 60Hz/80Hz/100Hz/200Hz
  • Bass EQ Level Control: -15dB - +15dB
  • Bass Extension
  • Bass Q Factor Control: 1.00/1.25/1.50/2.00
  • Quiet Turn-On
  • RCA Audio Inputs: Gold-Plated
  • RCA Line Outputs: Gold-Plated
  • Selectable Infrasonic Filter: Off/15Hz, 24dB per Octave (B Channel)
  • Speaker Connectors: Gold-Plated, Large Screw-Type
  • Speaker Relay Protection
  • Stereo, L + R, Mono, or Tri-Mode Operation
  • Treble EQ Frequency Control: 10kHz/12.5kHz/15kHz/17.5kHz
  • Treble EQ Level Control: -15dB - +15dB
  • Variable High-Pass Electronic Crossover: 50Hz - 200Hz, 12dB per Octave, A and B Channel
  • Variable Low-Pass Electronic Crossover: 50 - 200Hz, 24dB per Octave (B Channel)
  • LCD Display: Voltage/Current/Temp/Cooling Fan Speed/A.M.S. Adjustment Value
  • 2-Ohm Stable
  • Cooling Fan: 3 (2-Speed)
  • Copper-Shielded EE Core Transformer
  • Large Secondary Capacitors
  • Large Toroidal Noise Suppression Filter
  • Microprocessor-Controlled Operation
  • Power Input Terminals: Gold-Plated, Large Screw-Type
  • Power MOSFET Switching Power Supply
  • Power Supply Primary Stage Buss Bars
  • 17-9/16"W x 2-7/16"H x 10-7/16"D
  • UPC:
  • Weight: 0
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.

Do you own this product?

Write a review!
  • Overall this is a great amp. I have it powering my door and rear speakers (MB Quart) which are each rated at 60-130W rms. This amp feeds them 88W rms which is pretty close to the middle of that range which is where MB Quart recommends. Having all the connections on one side is an awesome revision by Kenwood. Makes the install so much prettier! If your deck does not have crossover settings then this amp will do that for you. However the A(Front) ch is severly limited in functionality compared to the B(Rear) ch. I believe this is because this amp is targeted at people who will be running a sub off the B ch. But if you use it like I am to feed all that power to your fronts and rears, you wont be dissapointed! I have the gain (Input Sensitivity) set all the way DOWN to 5V to match the preout level of my X979 deck and I still can't turn the volume all the way up without it starting to hurt my ears! :-)

    Dave G.
    7/18/2004

  • I have many seen amps but I found it unique. A friend of mine who is a car audio system seller comments that it's really superb. It is far better than any other products that we normally see or use in our car, esp. better than those chinese local products. As a music lover I would recommend Kenwood excelon KAC-X541 as one of the best multi channeled amp on earth.

    Kaiser Bhai
    8/8/2004

  • This amp will blow your mind away by how clear it is! I was just amazed after I first hooked it up to my front and rear speakers (infinity kappas) and I dont even have to turn up the volume hardly at all before my ears start ringing =) I would recomend this amp to anyone who wants top sound performance at a low cost. You just cant get this high of quality at such a great price! This amp deserves and earns a 10 on my scale.

    Cara Brown
    9/5/2004

  • fantastic amplifer highly recomended, you wo'nt be disapointed

    michael perticone
    6/17/2005

  • This amp is amazing. I hooked it up to my KDC-X889 Excelon head unit and the sound I am getting is super clean, even at ear drum piercing volume levels. What can I say, every time I turn my radio on,I can't help but smile (I have Alpine 5 X 7 type R speakers front and rear). Controlling the amp from the head unit is also pretty cool, just remember that you need to purchase an extra cable that does not come with stereo or amp (cable part no. CA-C6LN). If you want clean sound at a great price, this amp cannot be beat!

    Noe
    10/18/2005
