Soundstream :: PQ-7 :: $79.00

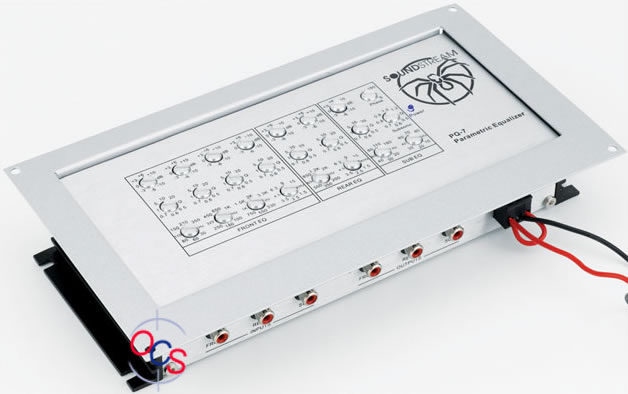

Soundstream PQ-7

Item# 16342

Parametric EQ w/ crossover

Sorry, this product is no longer available.

  • Inputs/Outputs: front/rear/subwoofer
  • Variable front EQ frequencies: (30~350Hz), (100~1K Hz), (330~3.3K Hz), (1.5K~15K Hz)
  • Variable rear EQ frequencies: (200~2K Hz), (1.5K~15K Hz)
  • Variable subwoofer EQ frequency: 20~180 Hz
  • Q-Factor control for each band: 0.5~20
  • Gain control for each band: +/-10dB
  • Subwoofer Channel: 24dB crossover slope
  • Phase Control: 0~1800
  • Variable Sub Sonic Filter: 10~80Hz w/Q-factor (0.5~1.2)
  • Max Input Level: 10V
  • Max Output Level: 10V
  • Frequency Resp: 10Hz-50KHz
  • THD: 0.01%
  • S/N ratio: >110dB
  • Input Imp: 10K ohm
  • Output Imp: 150 ohm
  • Authorized Internet Dealer
*Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to for replacement within 30 days from the original date of purchase with proper return authorization. After the 30 day time period, products must be returned to their original manufacturer for the remainder of the manufacturer's warranty period.

Do you own this product?  Write a review

   fred From the moon
not as many features as i would have expected but still a good buy there are better active crossovers on this site for cheaper
