Visonik :: V30EQ :: $149.00

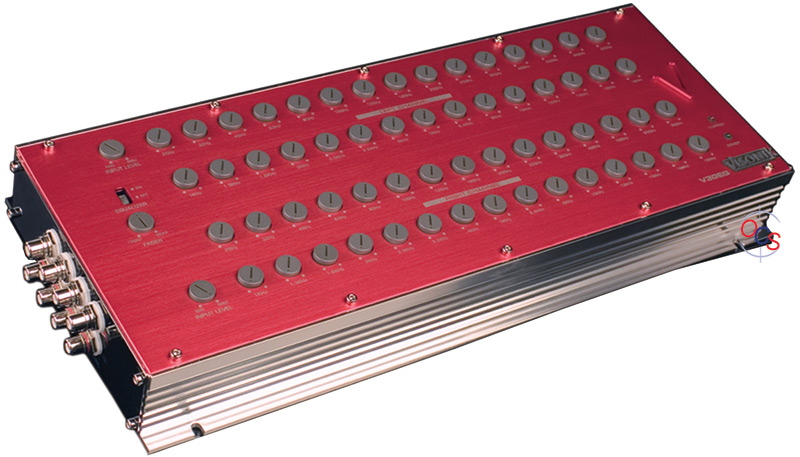

Visonik V30EQ

Item# 17941

30-Band Graphic Equalizer

Sorry, this product is no longer available.

  • Heavy duty heatsink
  • PWM switching power supply
  • Power & clip indicators
  • Variable input gain control
  • Variable fader control
  • Equalization switch (on/off)
  • 0-12dB Equalization boost/cut
  • THD: 0.05%
  • S/N Ratio: 89dB
  • Input impedance: 20000 Ohms
  • Output impedance: 150000 Ohms
  • RCA output level: 200mV-8V
  • Adjustable Equalization Ranges: 25Hz, 32Hz, 45Hz, 63Hz, 80Hz, 100Hz, 125Hz, 180Hz, 200Hz, 250Hz, 325Hz, 400Hz, 500Hz, 650Hz, 800Hz, 1kHz, 1.3kHz, 1.6kHz, 2kHz, 2.5kHz, 3.2kHz, 4kHz, 5kHz, 6.4kHz, 8kHz, 10kHz, 12kHz, 14kHz, 16kHz, 18kHz
  • Dimensions (H x W x L) 1.875" x 6.75" x 10.125"
  • Authorized Internet Dealer
*Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to for replacement within 30 days from the original date of purchase with proper return authorization. After the 30 day time period, products must be returned to their original manufacturer for the remainder of the manufacturer's warranty period.

Do you own this product?  Write a review

   Ron Orton From Hackleburg, Alabama
good EQ.Do wish there where 3 sets of RCA inputs, outputs and a built-in crossover but can manage without them.Run front RCAs on left side and the rear RCAs on the the top grey.
