JL Audio :: 10W3v3-8 :: $189.00

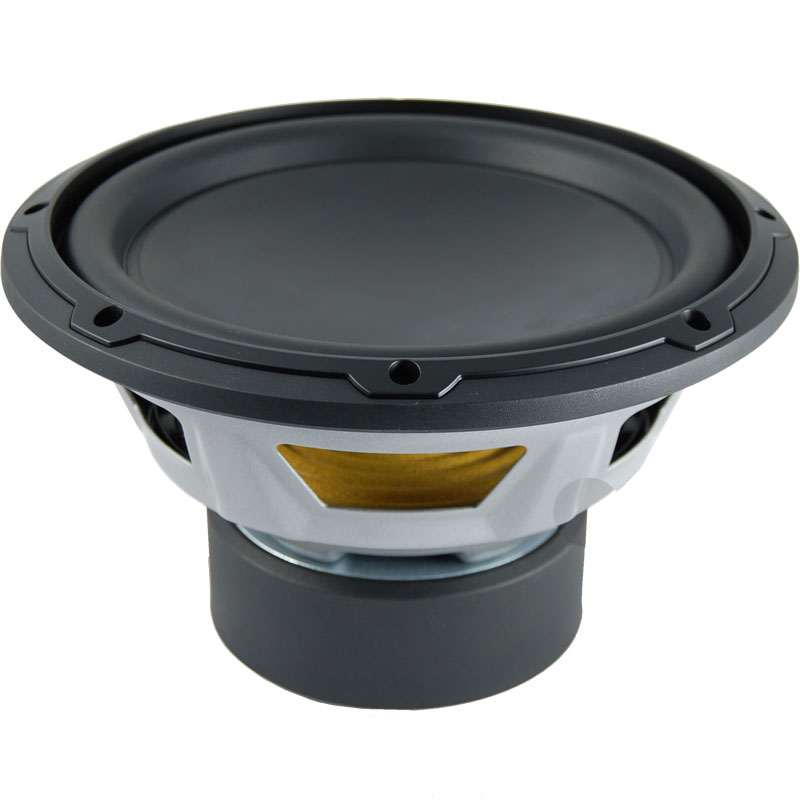

JL Audio 10W3v3-8

Item# 18624

10" 600W 8-Ohm Subwoofer

Sorry, this product is no longer available.

  • DMA-optimized, long linear excursion capability to virtually eliminate distortion and increase sound output
  • Perform outstanding in compact sealed or ported enclosures
  • DMA (Dynamic Motor Analysis) modeling to deliver unsurpassed dynamic stability and low-distortion operation within intended power range
  • Mineral-filled polypropylene upper cone with a metallic JL Audio medallion logo gives the W3's a whole new, classy and sophisticated look
  • Vented Reinforcement Collar
  • Insert Molded Suspension / Coil / Terminal Sub-Assembly
  • Customizable Trim Ring
  • Elevated Frame-Cooling
  • Floating Cone Attach Method
  • Surround Stress-Relief
  • Free Air Resonance (Fs): 31.49 Hz
  • Electrical "Q" (Qes): 0.523
  • Mechanical "Q" (Qms): 7.017
  • Total Speaker "Q" (Qts): 0.485
  • Equivalent Compliance (Vas): 1.138 cu. ft. / 32.23 liters
  • One-Way, Linear Excursion (Xmax): 0.550 in. / 14.0 mm
  • Reference Efficiency (no): 0.185%
  • Efficiency (1W/1m): 84.87 dB SPL
  • Effective Piston Area (Sd): 53.475 sq. in. / 0.0345 sq. m.
  • DC Resistance (Re): 3.567 ohm
  • Nominal Impedance (Znom): 8 ohm
  • Thermal Power Handling (Pt): 300W
  • Driver Displacement: 0.049 cu. ft. / 1.39 liters
  • Net Weight: 12.25 lbs. / 5.56 kg
  • Priced per speaker
  • Subwoofers are usually sold as a single unit unless otherwise noted.
  • Authorized Internet Dealer
*Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 30 days from the original date of purchase with proper return authorization. After the 30 day time period, products must be returned to their original manufacturer for the remainder of the manufacturer's warranty period.
