- Low Frequency Response : 10 Hz
- High Frequency Response : 35000 Hz
- Number of Channels : 2
- Built In Crossovers : Yes
- Channel Separation : Yes
- RMS Power Range : 110-360 Watts

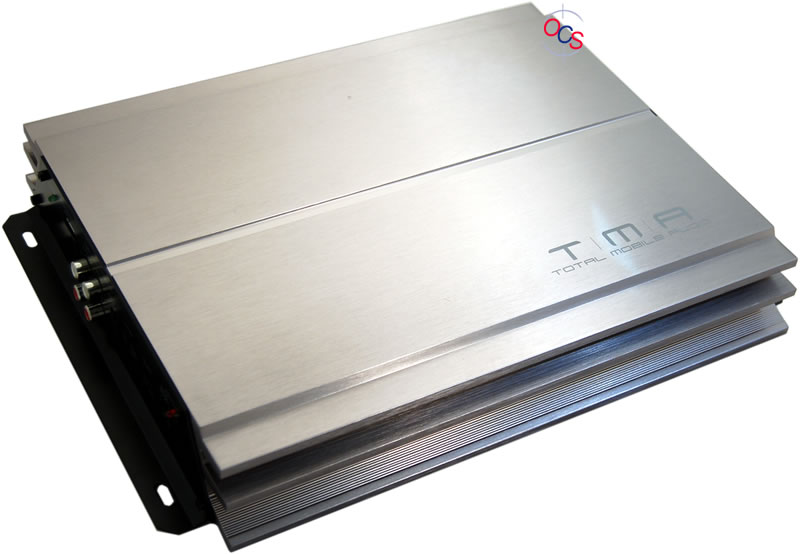

- Two-Channel Full-Range Amplifier
- Rated Power 14.5 V: 110W x 2 @ 4 ohm
- Rated Power 14.5 V: 180W x 2 @ 2 ohm
- Rated Power 14.5 V (Bridged): 360W x 1 @ 4 ohm
- Linear MOSFET Design
- High and Low Level Inputs
- Inputs: One Stereo Pair (RCA Low-Level or Multi-Pin High-Level)
- Input Sensitivity : Low-Level 200mV - 4V
- High-Level 2V - 10V
- Preamp Output : Pass-through type with unity gain
- Amplifier Filter: 12dB/octave High-Pass or Low-Pass with continuously variable cutoff frequency selection from 50 Hz - 500 Hz
- Variable EQ-Bass Boost: 0 - +9dB @ 45 Hz
- Frequency Response: 10 Hz - 35 kHz +/- 0.5 dB
- Bandwidth: 11.25" x 9.69" x 1.93"
- Dimensions (L x W x H): 11.25" x 9.69" x 1.93"
- A JL Audio Company
- UPC:
- Weight: 0
- Authorized Internet Dealer
Warranty: 1 Year Onlinecarstereo.com warranty.
1 Year warranty from Onlinecarstereo.com implies that repairs must be returned to Onlinecarstereo.com, not the manufacturer. More information can be found in our help section under returns & warranties.
What's not covered : Misuse, abuse, defacement, physical damage of any kind, and improper installation / operation. Video and multimedia equipment with damaged or cracked screens.Subwoofers and speakers are not warrantied if the defect is due to physical damage.
Do you own this product?
Write a review!
-
I bought one of these from a local car audio shop for $150, and it was well worth it. It makes my rear 6x9 boston acoustics put out extremely loud and clean sound. All the features you would need, and it's made by JL audio. I would definantly recommend this amp to anyone looking for louder highs or powering low end subs.
-
My friend has this amp with the exact speakers as me (12" W1v2). i have a JL eseries amp, and he has this TMA and there is really no difference in the sound and loudness/clarity of the two amps. this is a great product, especially for the money.
-
I have 2 of these amplifiers, running 2 JL Audio XR650csi component systems; I am VERY pleased.
-
i had this amp running two MTX 4500 sounded great you could hear me coming
-
i got this running two alpine type-r components. Also have a 500W mono for my eclipse 10". Very good product.
