 Product Description |

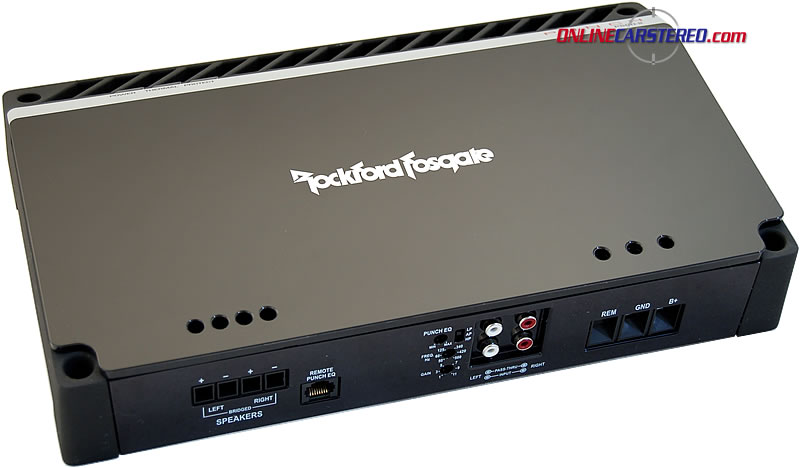

| The P500-2 is an excellent way to PUNCH up your sound system without monopolizing your entire trunk - that way you have more room for subs! With its massive output stage, this amplifier is best suited for driving a pair of 8-ohm SVC subwoofers or four 2-ohm DVC subwoofers. Remember to utilize the recommended power and speaker cables to optimize power delivery. |
| Technical Specification |
|
|
| Features |
- RMS Power @ 4-Ohms: 125W x 2
- RMS Power @ 2-Ohms: 250W x 2
- RMS Power bridged @ 4-Ohms: 500W x 1
- Crossover Controls High-Pass (HP): 50-500Hz 12dB/octave Butterworth, Low-Pass (LP): 50-500Hz 12dB/octave Butterworth
- Dynamic Thermal Management cooling system
- 1 RCA pair Input
- 1 RCA pair Output
- Class A/B Circuit
- Cast aluminum Heat Sink
- 12dB/octave crossover
- 4 Gauge power/ground connections
- Audiophile grade speaker connections
- MOSFET output stage
- MOSFET power supply
- RCA pass-thru
- Top Mounted LED Indicators
- Dimensions (HxWxL): 2.25 x 7.625 x 13.02 (in)
| Warranty: 1 Year Onlinecarstereo.com warranty. |
|
1 Year warranty from Onlinecarstereo.com implies that repairs must be returned to Onlinecarstereo.com, not the manufacturer. More information can be found in our help section under returns & warranties.
|
|
| Customer Reviews - Rockford Fosgate Punch P500-2 |
 C. From TX. |
| This is my 1st punch series. I was running one 12" T1 2dvc @ 500 X 1 @ 4ohms. Birthsheet was 733rms.
It hit good and had alot of bass bridged!! However my headlights were dimming slightly so I only used 1 channel @ 125w x 1 @ 4ohms, birthsheet was 227w x 1 @4ohms and even that was bumping!
I like this amp BUT this thing runs REALLY hot!! When I had it bridged I was in my car I had to go on a long drive and an hour into it the amp cut off due to heat! My gain was just over half way and bass boost was half way up. Theres no reason for this amp to get this hot.
If you put your gain less than half you get no bass what so ever. With the amp now im running only 1 channel and the gain is still a little over half and its still hot. It gets so hot you cant keep your hand on it for more than 2-3 seconds. If you read around you will see this amp DOES run hot so be warned.
I think im trying the JL 250/1 next, its a class D and should help w/ heat and obviously put out more than this RFs 1 channel.
** Ive had a RF power series amps before and that thing rocked, never got hot. (551S) |
|
