JL Audio :: M2250 :: $179.00

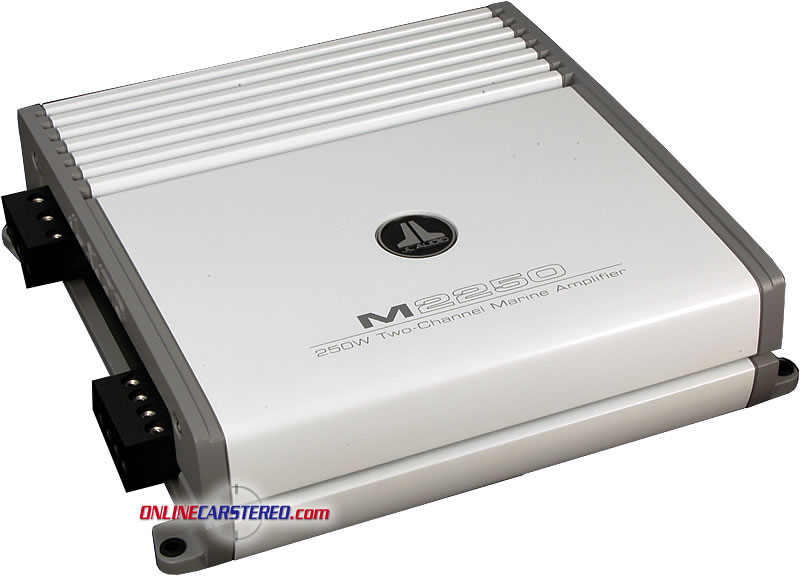

JL Audio M2250

Item# 19807

80W x 2 Class A/B Two-Channel Full-Range Amplifier

Sorry, this product is no longer available.
  • Class A/B Two-Channel Full-Range Amplifier
  • Unregulated MOSFET switching type power supply
  • RMS Power @ 4-ohms: 80W x 2
  • RMS Power @ 2-ohms: 125W x 2
  • RMS Power @ 4-ohms Bridged: 250W x 1
  • RMS Power @ 8-ohms Bridged: 160W x 1
  • Signal to Noise Ratio: >104 dB
  • Damping Factor: >200 @ 4 ohms per ch./50 Hz, >100 @ 2 ohms per ch. /50 Hz
  • Absolute Symmetry™ Class A/B Circuit (U.S. Patent #6,294,959)
  • Differential-Balanced Input Topology: For superior noise immunity, RCA jack inputs
  • On-board Crossover: State-variable, 12dB / octave Butterworth with continuously variable cutoff frequency selection from 50 – 200 Hz. Configurable as Low-Pass or High-Pass
  • Preamp Output: Pass-through type
  • Bass EQ: +6 dB fixed frequency, fixed 'Q' (defeatable) with port for optional remote bass control (RBC-1)
  • Speaker output connections: Accept up to 8 AWG wire
  • +12V and Ground connections: Accept up to 4 AWG wire
  • Dimensions(LxWxH): 9.8" x 9.25" x 2.50" (250mm x 235mm x 63.5mm)
    *Warranty: 1 Year warranty.
    1 Year warranty from implies that repairs must be returned to, not the manufacturer. More information can be found in our help section under returns & warranties.
    What's not covered : Misuse, abuse, defacement, physical damage of any kind, and improper installation / operation. Video and multimedia equipment with damaged or cracked screens.Subwoofers and speakers are not warranted against being blown, burned or abused.
