JL Audio :: M6600 :: $389.00

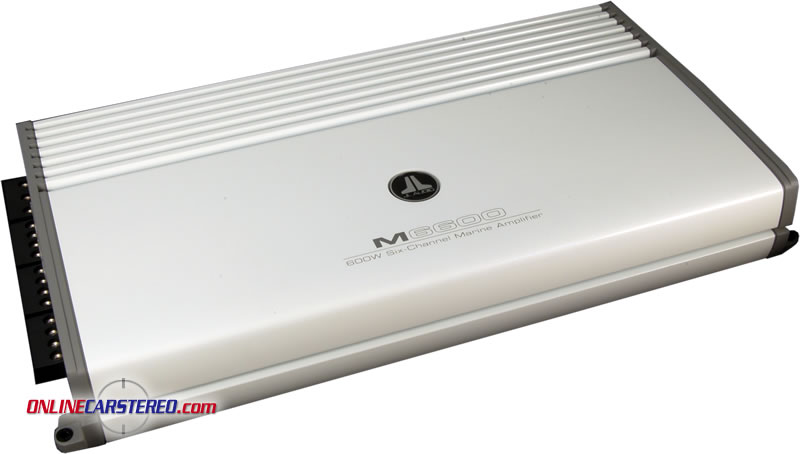

JL Audio M6600

Item# 19808

75W x 6 Class A/B Six-Channel System Amplifier

Sorry, this product is no longer available.

  • Class A/B Six-Channel System Amplifier
  • Unregulated MOSFET switching type power supply
  • RMS Power @ 4-ohms: 75W x 6
  • RMS Power @ 2-ohms: 100W x 6
  • RMS Power @ 4-ohms Bridged: 200W x 3
  • RMS Power @ 8-ohms Bridged: 150W x 3
  • Signal to Noise Ratio: >104 dB
  • Patented Technology: Absolute Symmetry™ Class A/B Circuit (U.S. Patent #6,294,959)
  • Differential-Balanced Input Topology: For superior noise immunity, RCA jack inputs
  • On-board Crossover: State-variable, 12dB / octave Butterworth with continuously variable cutoff frequency selection from 50 – 200 Hz. Configurable as Low-Pass or High-Pass
  • Bass EQ (Channels 5&6 only): +6 dB fixed frequency, fixed 'Q' (defeatable) with port for optional remote bass control (RBC-1)
  • Speaker output connections: Accept up to 8 AWG wire
  • +12V and Ground connections: Accept up to 4 AWG wire
  • Dimensions(LxWxH): 17.7" x 9.25" x 2.50" (450mm x 235mm x 63.5mm)
  • Authorized Internet Dealer
*Warranty: 2 Years Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 30 days from the original date of purchase with proper return authorization. After the 30 day time period, products must be returned to their original manufacturer for the remainder of the manufacturer's warranty period.
