The smoothness and transparency of a high-end silk dome tweeter combines with top-flight woofer performance to create a coaxial loudspeaker system with exceptional refinement and dynamic capability.

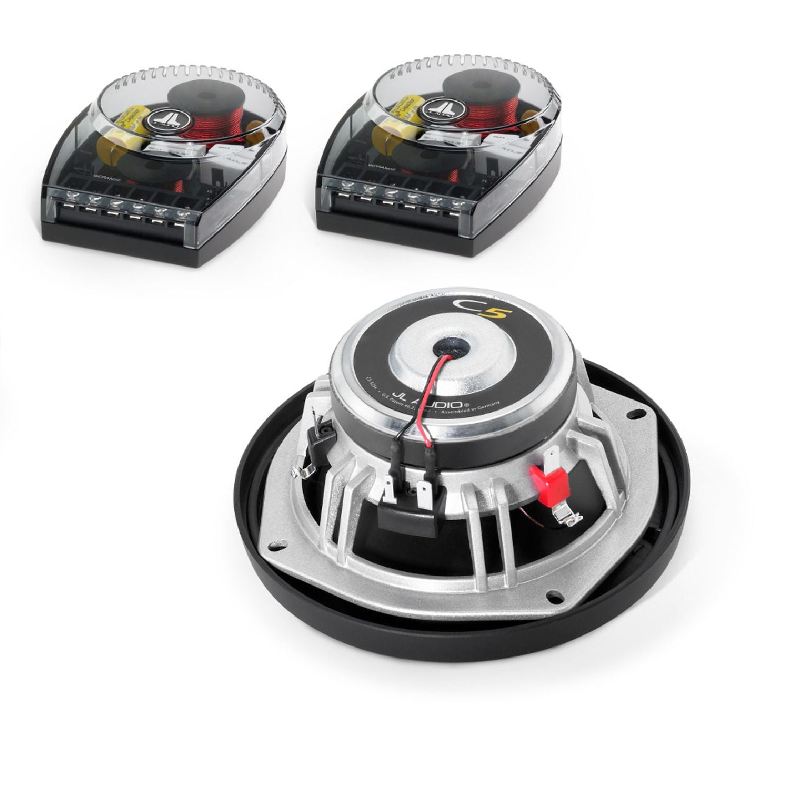

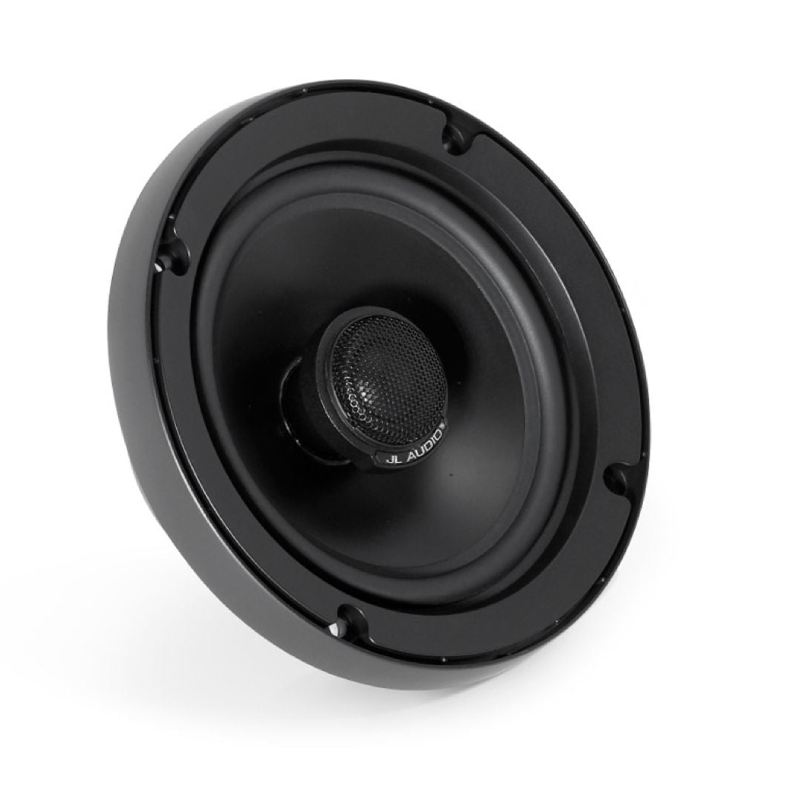

The C5-525x system features 5.25-inch (130 mm) woofers with die-cast alloy baskets and Kurt Müller cones and suspensions. The woofer benefits from JL Audio's vast woofer design experience and advanced modeling systems. Tweeters are coaxially mounted and built with 0.75-inch silk dome diaphragms that deliver smooth, extended response, on and off axis.

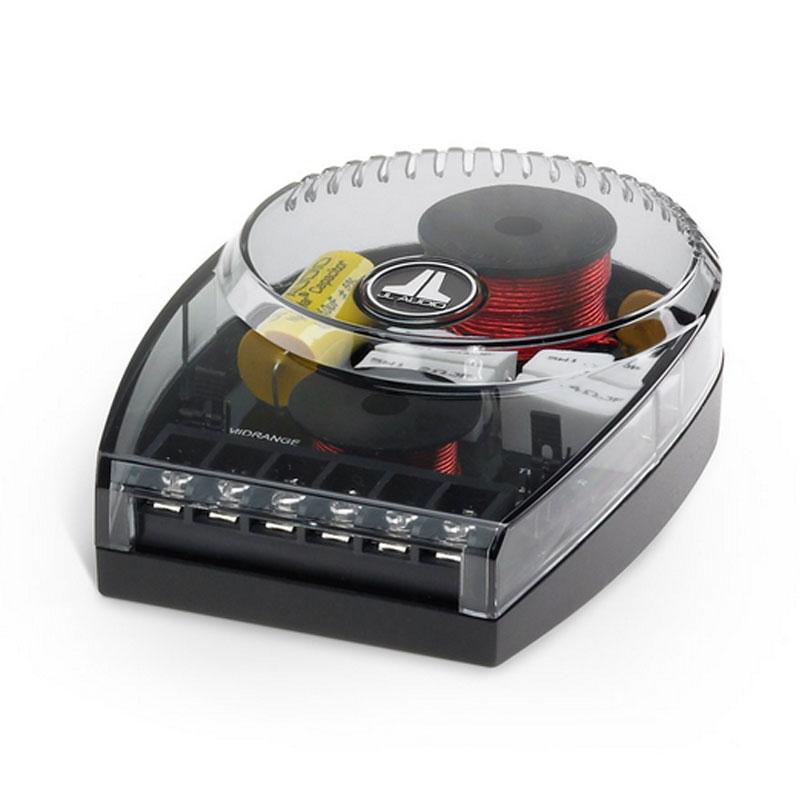

The small size of the C5 tweeter minimizes tweeter protrusion, allowing C5 coaxials to easily fit behind most factory speaker grilles. C5 crossover networks are compact and built with premium component parts, including Mylar® capacitors and segmented air-core inductors.
Four levels of tweeter attenuation are provided, as well as three levels of mid-range presence adjustment, for twelve possible voicing combinations! Speaker grilles are included, each consisting of a black grille tray and a black steel mesh grille with an electroformed JL Audio logo.

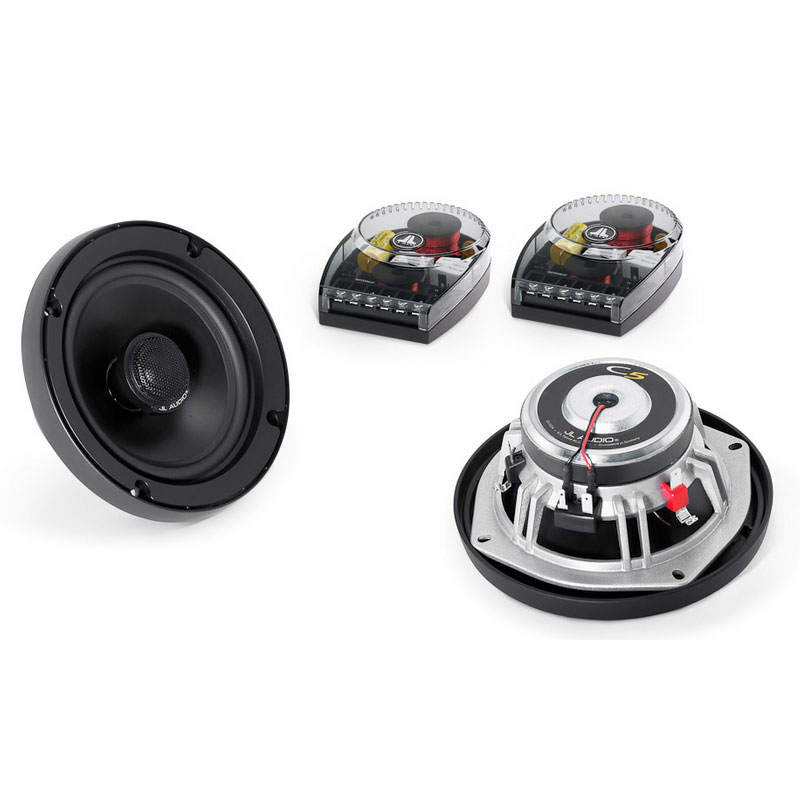

- 5.25" Evolution C5 Series 2-way Coaxial Car Speakers
- Power Handling:
- Peak: 450 watts per set / 225 watts per channel
- RMS: 150 watts per set / 75 watts per channel
- Woofer Dimensions:
- Top-mount depth: 2.27"
- Cutout Dimensions: 4.48"
- Crossover Dimensions:
- Width: 3.36"
- Height: 1.44"
- Depth: 4.72"
- Nominal Impedance: 4 ohm
- Efficiency: 88.5 dB @ 1 watt / 1 meter
- Frequency Response: 53 Hz - 25 KHz ± 3 dB
- Recommended Power Range: 25 - 150 watts per channel
- Mineral-Filled Polypropylene Cone
- Butyl Rubber Surround
- Cast Alloy Frame/Basket
- Elevated Frame Cooling
- Ferrite Woofer Magnet
- 1.00" Voice Coil on Kapton® Former
- Low-Profile, Symmetrical Roll Spider
- Dynamic Motor Analysis (DMA) Optimized Motor
- 0.75" Silk Soft Dome Tweeter
- Ferrofluid Cooling/Damping Neodymium Tweeter Magnet
- 2-way Crossover Network w/ 2nd Order Low-Pass and 2nd Order High-Pass Circuit
- Premium Mylar® Capacitors w/ Air-Core Inductors
- 4-Position Adjustable Tweeter Output Level
- 3-position Mid-range Presence Control
- Polyswitch Tweeter Protection
- Black Steel Mesh Grille with An Electroformed JL Audio Logo Included
- Product Highlights:
- 2-way 5-1/4" speakers (pair)
- mineral-filled polypropylene woofer
- butyl rubber surround
- cast alloy frame with Elevated Frame Cooling
- 3/4" silk dome tweeter
- 2-way external crossover with 4-position tweeter level and 3-position midrange control
- 4-ohm impedance
- power range: 2-75 watts RMS (225 watts peak power)
- frequency response: 53-25,000 Hz
- sensitivity: 88.5 dB
- depth: 2-5/16"
- Car speakers are usually sold as a pair unless otherwise noted.
- UPC: 699440991018
- Weight: 6
- Sku: 99101
