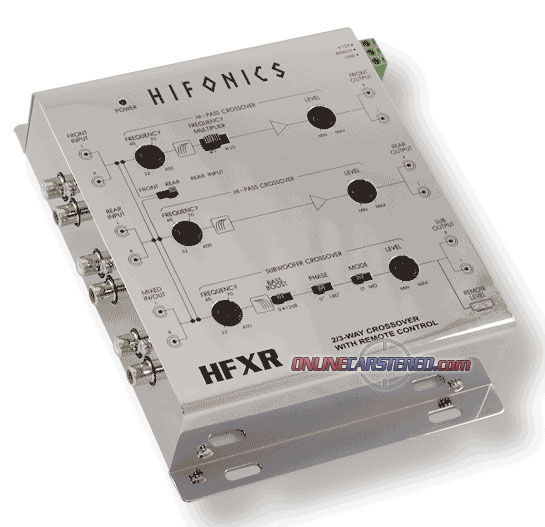

2-way / 3-way Active Crossover with Remote Bass Control. 8.5 Volt Line Driver.
General Features:
- Frequency response: 10-30,000Hz
- Total harmonic distortion: > 0.01%
- Signal-to-noise ratio: > 95 dB
- Channel separation: > 60dB
- Output gain ratio: 1:2
- Dimensions: 6-3/4"D x 5-3/4"W x 1-3/4"H
- Low Frequency Response : 10 Hz
- High Frequency Response : 30000 Hz
- Frequency Response : 10-30000 Hz
- Crossover Type : Passive
- Product Highlights:
- 2-Way/3-Way Electronic Crossover
- Select 2-channel or 4-channel inputs with switch
- Bass boost (0-12dB @ 45Hz)
- Maximum pre-amp output: 8.5-Volts RMS
- 45Hz Bass boost with quasi-parametric EQ
- Can be used with mono or stereo woofers
- 180-degree phase-shift switch
- Front channel high-pass frequency: 32-400Hz in the x1 position, 640-8,000Hz in the x20 position
- Rear channel high-pass frequency: 32-400Hz
- Front, rear and subwoofer level adjustments
- Front and rear inputs with front, rear and subwoofer outputs
- 2-Channel full-range RCA Pre-amp output
- Rear signal output
- LED Power indicators
- UPC: 806576216339
- Weight: 4
- Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 year from the original date of purchase with proper return authorization.
Do you own this product?
Write a review!
-
A great 3-channel x-over. The remote gain knob is perfect for adjusting the bass volume without having to go in the trunk. The only very minor problem is that the pos/neg/remote power input is a plug in and could come loose if not correctly connected.
