Orion :: XTR500.4 :: $149.95

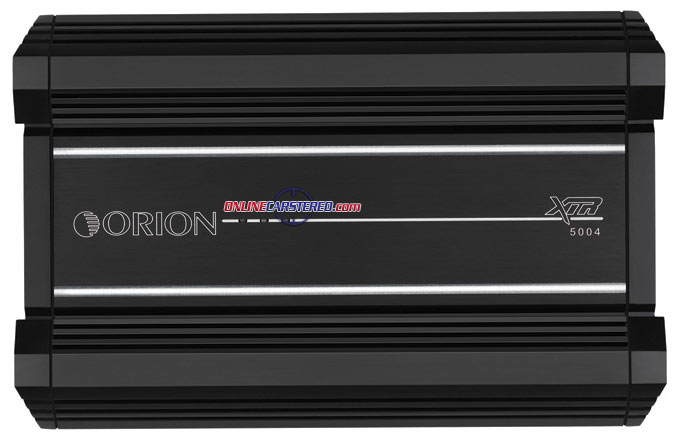

Orion XTR500.4

Item# 21134

XTR Series 4-Channel Car Amplifier 2000W Max Power

Sorry, this product is no longer available.

Highly Recommended Alternatives

What's Included:

  • Gain Remote Control
  • Owner's Manaul

Product Highlights:

  • 12dB per octave low-pass filter
  • 125 watts RMS x 4 channels @ 2 ohms
  • High-current power Speaker terminals
  • MOSFET power supply and output stage
  • All XTR amplifiers feature classic Orion industrial design
  • Variable crossover
  • Heavy-gauge direct wire
Remote Gain Control: Yes
Bass Boost Circuit
Signal to Noise Ratio: >95dB
High Pass / Low pass Filter Control: Yes
Power Supply and Outout stage: All MOSFET
12dB/Octave Low-Pass Filter
RMS Watts @ 4 Ohms Stereo at 14.4V: 90 Watts x 4ch
Soft Turn-on / Turn-off: Yes
Total Nominal Power: 1000 Watts
Power and Protection LED Indicators
RMS Watts @ 2 Ohms Stereo at 14.4V: 125 Watts x 4ch
Low Pass Crossover: 50Hz ~ 400Hz
High Pass Crossover: 50Hz ~ 5kHz
RMS Watts @ 4 Ohms Bridge at 14.4V: 250 Watts x 2ch
Total MAX Music Power: 2000 Watts
Frequency Response: 10Hz to 35kHz
THD at 1 Watts, 4 Ohm: <0.5%
Tri-Mode Capable
Dimensions: 10.3" (L) x 2.5" (H) x 9.3" (D)
  • UPC: 818550010550
  • Weight: 8.2
  • Authorized Internet Dealer
*Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to for replacement within 30 days from the original date of purchase with proper return authorization. After the 30 day time period, products must be returned to their original manufacturer for the remainder of the manufacturer's warranty period.

Do you own this product?  Write a review

   Jay From Oregon

Amp has a TON of power but has a "clicking" sound. This is the second one after having to send back the first for the same issue. Would make a good sub amp for a couple 10s but I'm not going to recommend it for door speakers. Too dirty sounding.

   jack "KJAK" From ST.LOUIS MO.
orion amps are the best /cleanest on the market today!!!..these were used in "loudfoot" to produce 19k watts!!! 9 marine batteries and 2 alternators TO POWER 9 ORION AMPS, KJAK speakers 12-12" woofers,8- 6 1/2" mids 4-bullet tweeters 147db...many first place trophy's for db but most of all superior sound quality....placeD 16th in nation 1985......need i say anymore!!

   Dale From Archer, Iowa the hell have you NEVER heard of ORION, this company has been providing HIGH QUALITY Subwoofers, HIGH CURRENT MONO BLOCK AMPS FOR OVER #) YEARS, I remember when Orion debuted there Redline High Current/Power Amplifier line in the 80's yo!!!! Some of the Best equipment anyone can purchase if you are looking for a "stabled" brand in the aftermarket auto sound industry!!!
