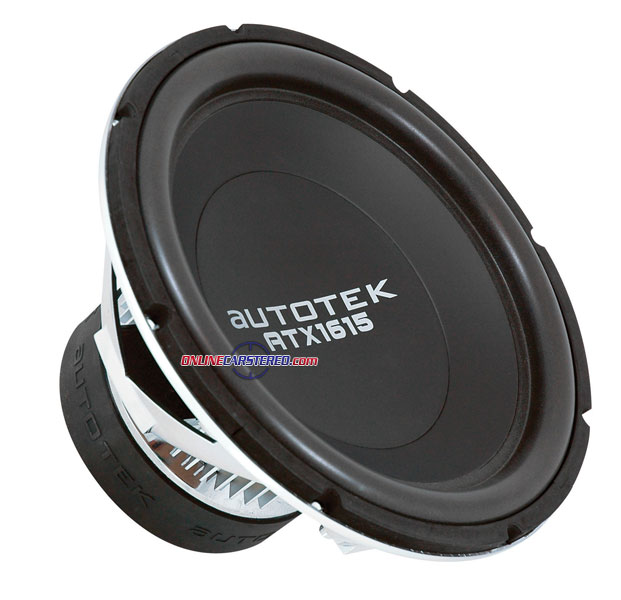

The ATX1615 offers superior sonic accuracy and intense high power sound quality at 1600-watts RMS. The 3" dual voice coil 2-Ohm high temperature black aluminum former handles intense high power, while a 1" high roll polyester foam surround provides long excursion. A large air cooled 160 oz. double stack magnet assembly adds increased motor strength. A vented enclosure is recommended while minimizing the distortion and maximizing efficiency to produce even greater sound.
- Diameter : 15 Inch
- Impedance : 2 Ohm
- RMS Power Range : 1600 Watts
- Peak Power Handling : 3200 Watts
- Number of Voice Coils : Dual
- Peak Power - 3200
- RMS Power - 1600
- VC Ohms - 2 + 2
- Fs - Hz: 30.85
- Re / Ohms x 2: 1
- Qts - 0.388
- Vas - 101 Liters
- Xmax - 20 mm
- Xmax - 0.79 Inches
- SPL - [email protected]: 90.36
- 3 DVC 2-Ohm High-Temperature Black Aluminum Former
- 1 High Roll Polyester Foam Surround For Long Excursion
- Large Air Cooled 160 oz. Double Stack Magnet Assembly
- Double Laminated Poly Cotton Spider w/ Woven Tinsel Leads
- FEA Structured Glass Impregnated Paper Cone
- Nickel Plated Push and Insert Speaker Terminals
- Full Press Pulp Paper Dust Cap w/ Silk Screen
- Heat Dispersing Ported Back Plate
- Ultra Rigid Aluminum Die Cast Basket w/ White Chrome Finish
- 20mm Top Magnet Plate w/ White Chrome Finish
- Evolution of Power Included
- UPC:
- Weight: 0
- Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 year from the original date of purchase with proper return authorization.
Do you own this product?
Write a review!
-
VERY GOOD SUB FOR THE PRICE. HITS REALLY HARD WITH CORRECT POWER. SMOKE A GUY WITH 4 JUGGS. SUB IS AMAZING.
