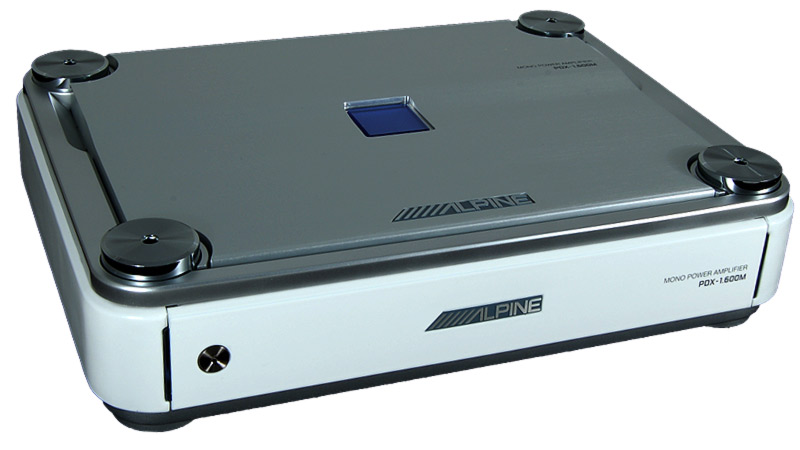

Alpine PDX-1.600M Item# 21668
600W RMS PDX Series Mono Block Power Density Digital Marine Amplifier
Alpine :: PDX-1.600M :: $389.00
MSRP: $650.00
You Save: $261.00 (40%)    Clearance
Our Price: $389.00
 Protect Your Investment (- hide options)

CPS Extended Service Plan (more info)




Condition: Brand New Avg Rating: Not Rated Yet
Free Shipping On This Item
magnifying glass

Please roll over the image to see detail.
Hint: click on the image to see larger image.

Features

Power Output
  • 600W RMS x 1 @ 1 Ohm
  • 600W RMS x 1 @ 2 Ohms
General Features
  • Amplifier Type: Class-D (Digital)
  • Channel Design: 1 Channel (Mono)
  • Thermal Control: Thermal Management Control
  • Power Supply: Resonant Mode Power Supply
  • Power Supply Design: DC-DC PWM Power Supply
  • Board Circuitry: STAR Circuit
  • Current Protection: Auto Over-Current Protection
  • Power Indicator: Top Mounted Blue LED Power/Status Indicator
  • RCA Output: Non-Fading Pre-Amp Output
  • Crossover: Adjustable Low-Pass
  • Connector Plating: Gold Plated Input, Output, Power and Speaker Terminals
  • Pre-Amp Stage: Discrete
  • Final Outputs: MOSFET
  • Board Design: 4-Layer Glass Epoxy PC Board
  • Gain Control: Adjustable
General Specifications
  • Power Requirements: 14.4V DC (11V to 16V)
  • Input Sensitivity: 0.1V to 8.0V (For Rated Power)
  • Frequency Response: 20Hz - 200Hz (20Hz/-3dB)
  • Speaker Impedance: 4 or 2 I?
  • Signal to Noise: CEA 2006 S/N Ratio (IHF A Weighted, Reference: 1W into 4I?) 80 dBA
Dimensions
  • Heat Sink (WxHxD) mm: 257mm x 192mm x 62mm
  • Heat Sink (WxHxD) in: 10-1/8'' x 7-9/16'' x 2-7/16''
Installation Features
  • Connectors: Quick Disconnect Terminals
  • Terminal Layout: One-Sided
  • Screw Mount / Wire Cover: Integrated Wire and Mounting Screw Terminals
  • Mounting Design: Easy Stacking
*Warranty: 1 Year Onlinecarstereo.com warranty.
1 Year warranty from Onlinecarstereo.com implies that repairs must be returned to Onlinecarstereo.com, not the manufacturer. More information can be found in our help section under returns & warranties.
