Sony :: CDX-H910UI  :: $299.00

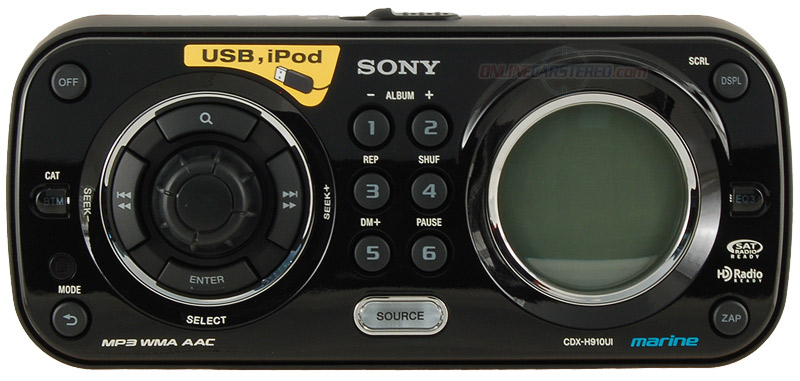

Sony CDX-H910UI

Item# 22091

Marine CD/MP3 Receiver with USB 1-wire iPod Control

Sorry, this product is no longer available.

Inputs and Outputs
  • 12V Trigger Output(s): Power antenna Amplifier turn on
  • Analog Audio Input(s) (Total): Rear Aux-In
  • Antenna Terminal(s): Aerial Input Terminal
  • Audio Out (Variable/Fixed): Speaker outputs (sure seal connectors)
  • Digital Audio Input(s): MSC (Mass Storage Class) and MTP (Media Transfer Protocol) type USB devices compliant with the USB standard
  • Infrared Port: Remote Controller Input Terminal
  • Input(s): Rear USB5 pig-tail (1.5 m), BUS audio input terminal, Rear Aux In
  • Remote Jack: Optional Wired Remote input
  • USB Port(s): USB Full-Speed
  • iPod via USB:
    • iPod Nano 1st generation (Passenger Control is not available. )
    • iPod Nano 2nd generation (aluminum)
    • iPod Nano 3rd generation (video)
    • iPod 5th generation (video) (Passenger Control is not available.)
    • iPod Classic
    • iPod Touch
    • iPhone (Passenger Control is not available. )
    • Upgrade iPod software to latest version
  • Audio Format: BTM
  • Band: AM / FM
  • CD Playback: Wow and flutter-Below measurable limit
  • Digital-to-Analog Converter: 24bit
  • Frequency Response: 10-20,000Hz
  • Output Impedance: 4-8 Ohms
  • Preout Voltage: 2 volt
  • S/N Ratio: CEA2006 S/N 82 dB
  • Sensitivity (db): FM:Usable sensitivity (75)(dBf): 10
  • Signal-to-Noise Ratio: CD: 120dB
  • Station Preset(s): FM18/AM12
  • Tone Control(s): Low: +/-10 dB at 60Hz (XPLOD) Mid: +/-10dB at 1kHz (XPLOD) High: +/-10dB at 10kHz (XPLOD)
  • Tuner Frequency Range: FM:Tuner Frequency Range(MHz): 87.5-108.0 50 kHz step), 87.5-107.9 (at 200 kHz step), AM:Tuner Frequency Range(kHz): 530-1602 (9 kHz step), 530-1710 (10 kHz step)
  • Tuner Type: SSIR-EXA
  • Volume Control: Tel/Nav Attenuation
  • Wow and Flutter: Below Measurable Limit
  • Input Power : 12 V DC car battery (negative ground (earth))
  • Output Power : 52W x4 High Power-23.2 watts per channel minimum continuous average power into 4 Ohms, 4 channels driven from 20 Hz to 20 kHz with no more than 5% total harmonic distortion.
  • Power Consumption (in Operation) : 45W
  • FM Usable Sensitivity : 10 dBf
  • Frequency Response : 20 - 15,000 Hz
  • S/N Ratio : 70 dB
  • Selectivity : Sony BUS Control with CD-Text
  • Stereo Separation : 40 dB at 1 kHz
    *Warranty: 1 Year warranty.
    1 Year warranty from implies that repairs must be returned to, not the manufacturer. More information can be found in our help section under returns & warranties.
    What's not covered : Misuse, abuse, defacement, physical damage of any kind, and improper installation / operation. Video and multimedia equipment with damaged or cracked screens.Subwoofers and speakers are not warranted against being blown, burned or abused.
