Item# 22221
JL Audio C2-525 - $249.99
Please roll over the image to zoom in. Click on the image to see larger image.

JL Audio C2-525 (99620)

Item# 22221

Condition:  Brand New

  • comments
  • email
  • Facebook
  • Twitter
  • Print

5.25" 2-Way Component Speaker System 225W Peak Power

Savings Of:
Your Price $249.99

FREE Shipping in US 48!

vehicle fit guide

The Evolution C2 systems deliver sparkling high-frequency detail, smooth mid-range and powerful mid-bass, thanks to real silk dome tweeters and long linear excursion woofer designs.

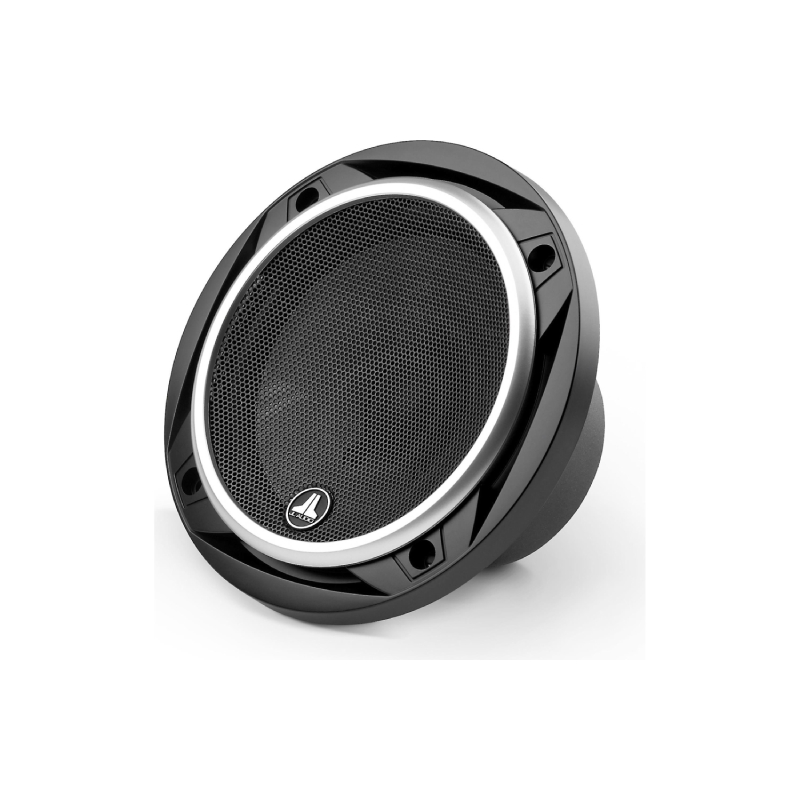

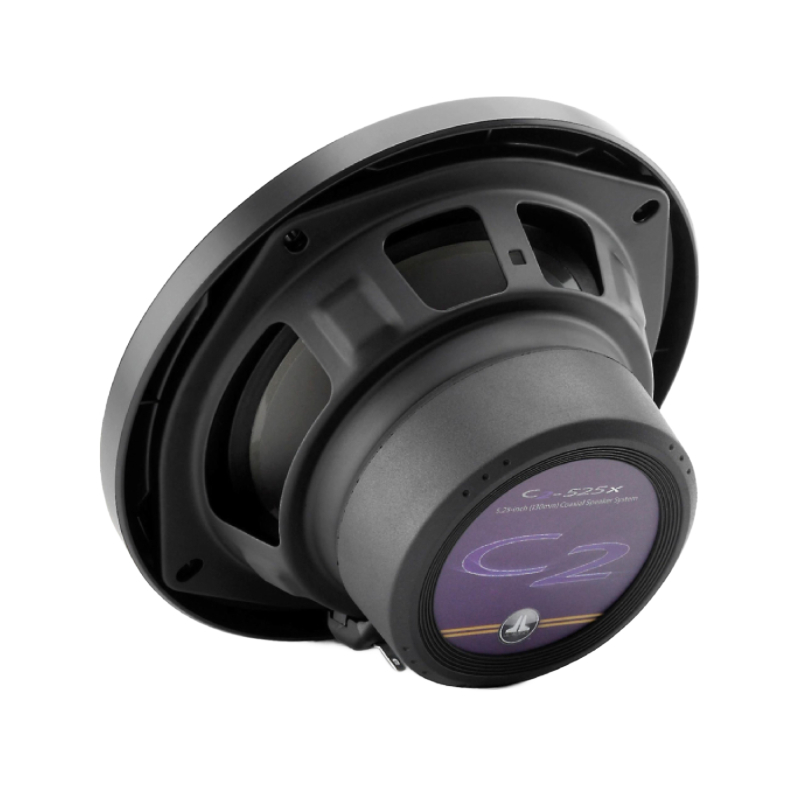

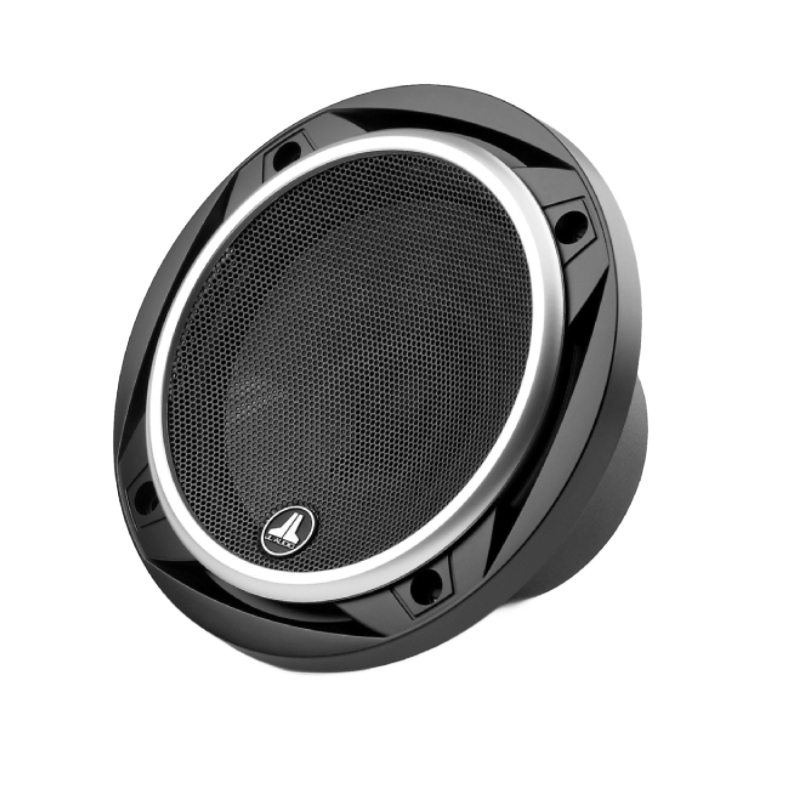

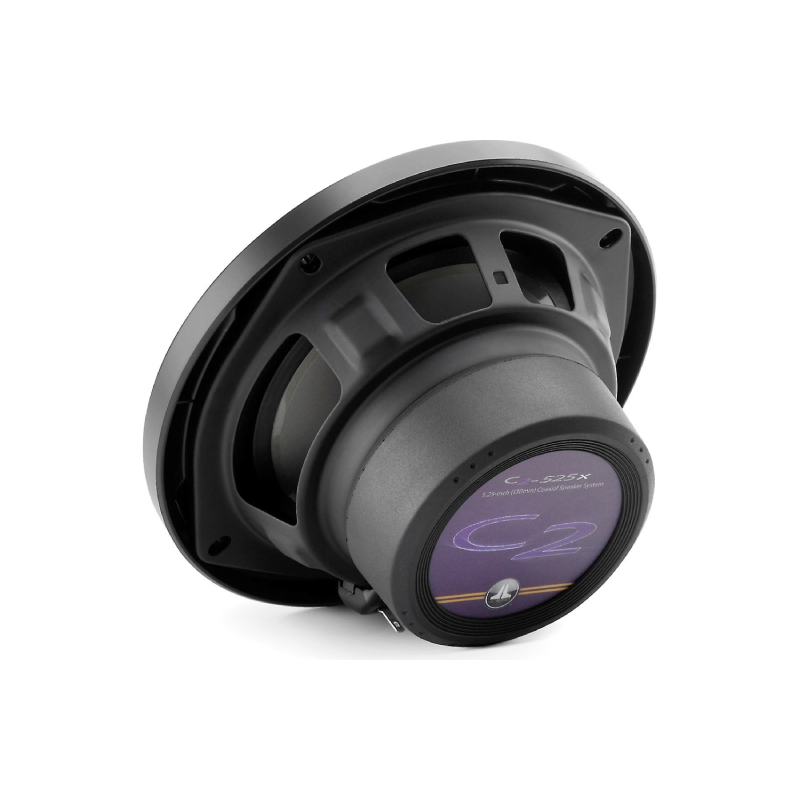

The C2-525 system features 5.25-inch (130 mm) component woofers with mineral-filled polypropylene cones, long excursion capabilities and stamped steel frames. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.

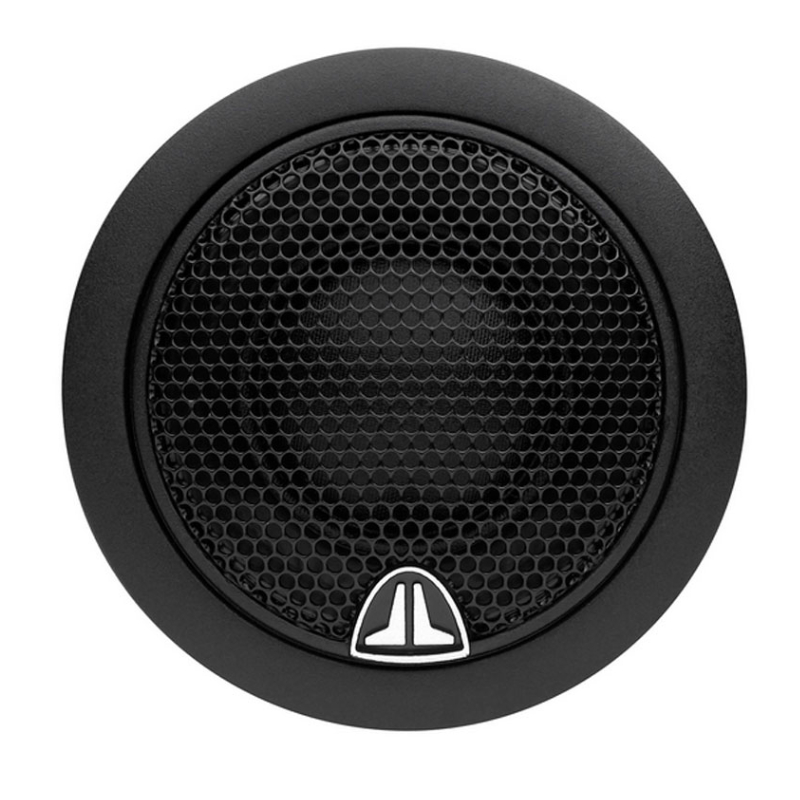

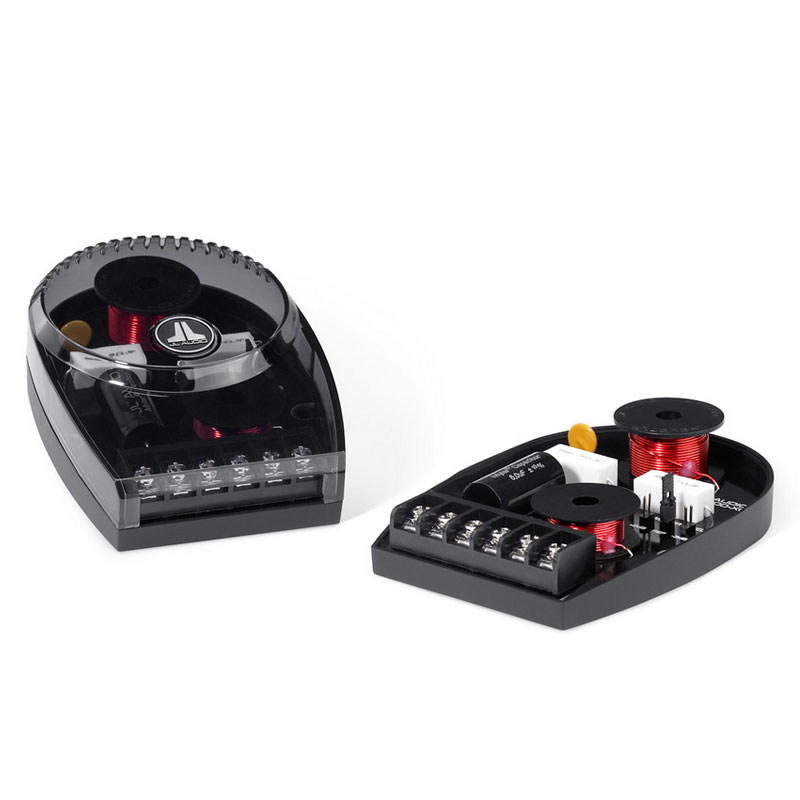

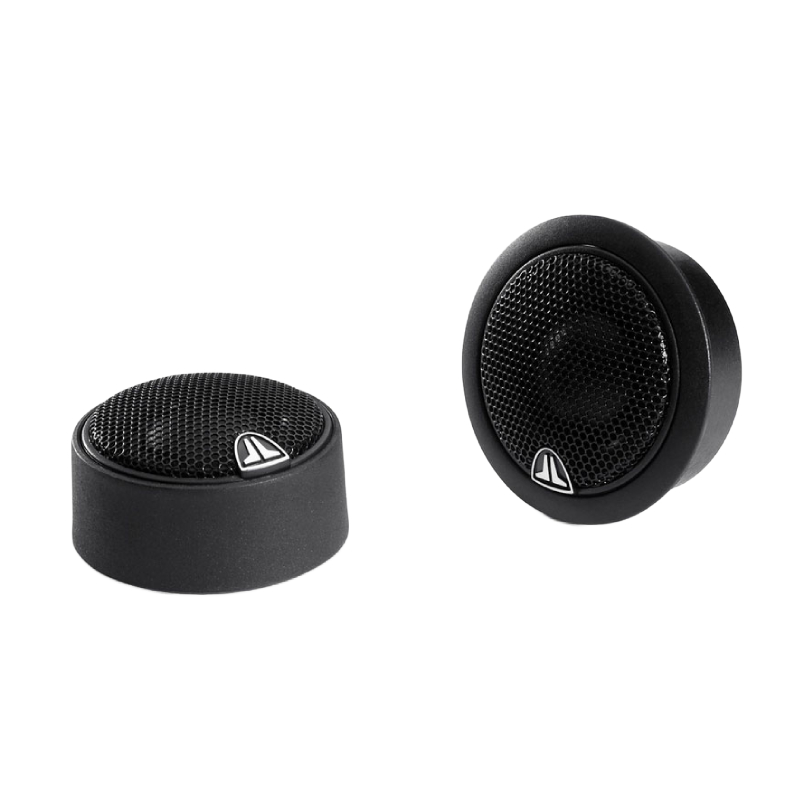

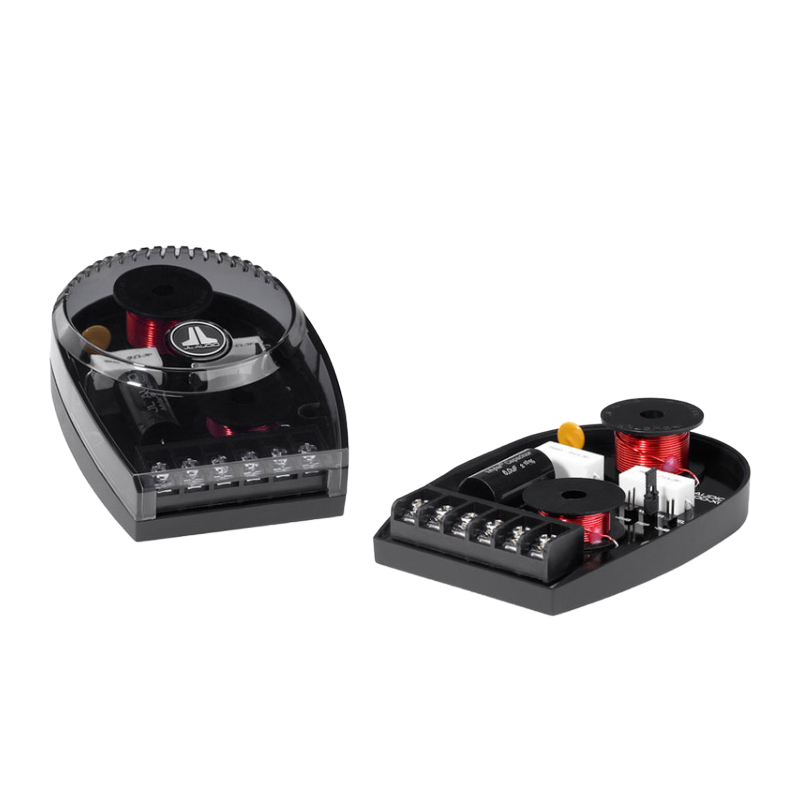

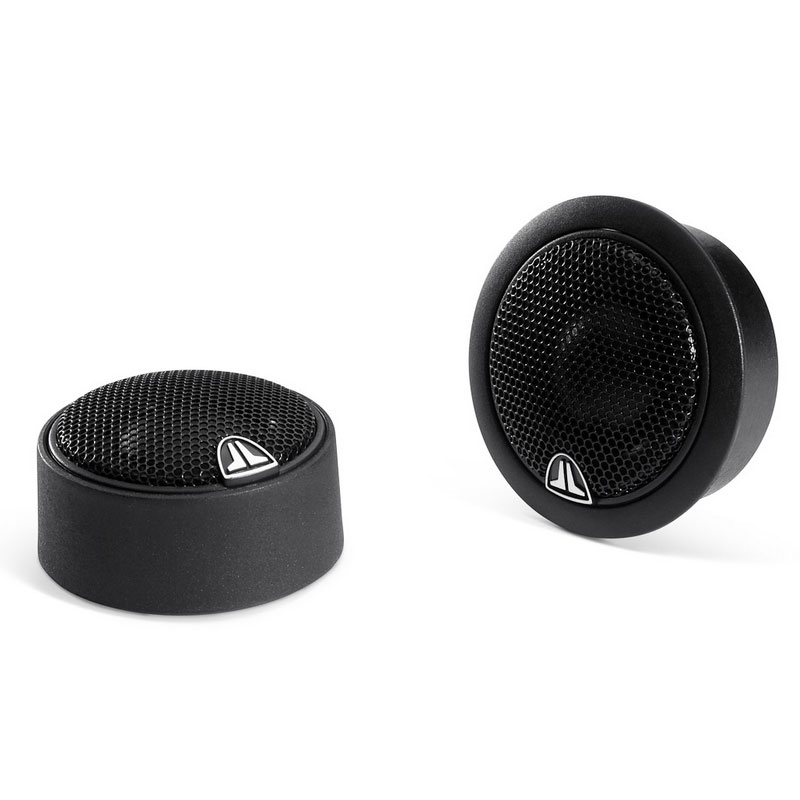

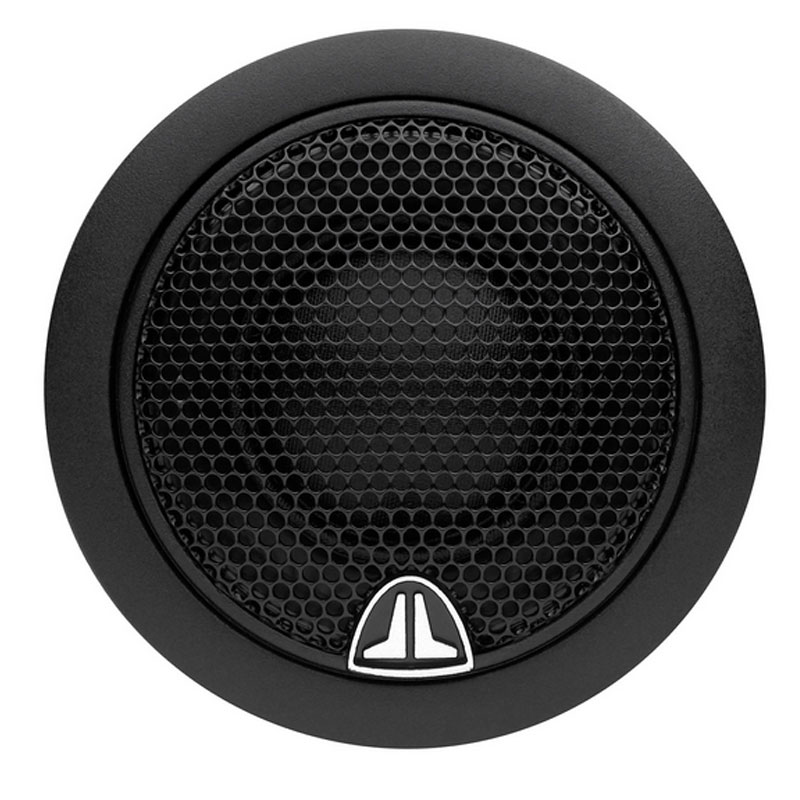

The C2 component tweeters are built with 0.75-inch silk dome diaphragms that deliver smooth, extended response, on and off axis. Flush-mounting and surface-mounting fixtures are included to fit a wide variety of installation needs.C2 crossover networks are compact and built with premium component parts, including Mylar® capacitors and segmented air-core inductors.

Three levels of tweeter attenuation are provided, as well as a tweeter protector. Woofer grilles are included, each consisting of a black grille tray with satin silver accents and a black steel mesh grille with an electroformed JL Audio logo.

General Features:

  • 5.25" Evolution C2 Series 2-way Component Car Speakers
  • Power Handling:
  • Peak: 450 watts per set / 225 watts per channel
  • RMS: 120 watts per set / 60 watts per channel
  • Woofer Dimensions:
  • Top-mount depth: 2.50"
  • Cutout Dimensions: 4.56"
  • Tweeter Dimensions: (Flush Mount)
  • Top-mount depth: 0.76"
  • Cutout Dimensions: 1.625"
  • Crossover Dimensions:
  • Width: 3.36"
  • Height: 1.44"
  • Depth: 4.72"
  • Recommended Power Range: 15 - 100 watts per channel
  • Injection Molded, Mica-filled Polypropylene Cone
  • Butyl Rubber Surround
  • 1.00" Voice Coil on Kapton® Former
  • Flat, Symmetrical Roll Spider
  • Ferrite Woofer Magnet
  • 0.75" Silk Dome Tweeter
  • Ferrofluid Cooling/Damping Neodymium Tweeter Magnet
  • Crossover: 1st Order Low-Pass Filter, 2nd Order High-Pass Filter
  • 3-Position Adjustable Tweeter Level
  • Premium Mylar® Capacitors Premium Air-Core Inductors
  • Black steel mesh grille with satin silver accents Included
  • Nominal Impedance: 4 ohm
  • Efficiency: 89.0 dB @ 1 watt / 1 meter
  • Frequency Response: 63 Hz - 22 KHz ± 3 dB
  • Product Highlights:
  • Continuous Power Handling (RMS) 60 W
  • Peak Music Power 225 W
  • Recommended Amplifier Power (RMS) 15 - 100 W / Ch.
  • System Efficiency 89.0 dB @ 1 W / 1 m
  • System Nominal Impedance 4 Ω
  • System Frequency Response 63 Hz - 22 KHz ± 3 dB
  • Continuous Power Handling (RMS) 60 W
  • Peak Music Power 225 W
  • Recommended Amplifier Power (RMS) 15 - 100 W / Ch.
  • System Efficiency 89.0 dB @ 1 W / 1 m
  • System Nominal Impedance 4 Ω
  • System Frequency Response 63 Hz - 22 KHz ± 3 dB
  • Frame Outer Diameter* (A) 5.20 in / 132 mm
  • Grille Tray Outer Diameter (B) 6.01 in / 153 mm
  • Motor Outer Diameter (C) 2.76 in / 70 mm
  • Frontal Coaxial Tweeter Protrusion (D) N/A
  • Frontal Grille Protrusion** (E) 0.72 in / 18 mm
  • Mounting Hole Diameter (F) 4.56 in / 116 mm
  • Mounting Depth (G) 2.50 in / 64 mm
  • Flush Mount Fixture Diameter (A1) 1.87 in / 48 mm
  • Surface Mount Fixture Diameter (A2) 1.69 in / 43 mm
  • Flush Mount Mounting Hole Diameter (B) 1.625 in / 41 mm
  • Flush Mount Mounting Depth (C) 0.76 in / 19 mm
  • Flush Mount Tweeter Frontal Protrusion (D1) 0.29 in / 7 mm
  • Surface Mount Tweeter Frontal Protrusion (D2) 0.92 in / 23 mm
  • Width (W) 3.36 in / 85 mm
  • Height (H) 1.44 in / 37 mm
  • Depth (D) 4.72 in / 120 mm
  • UPC: 699440996204
  • Weight: 6
  • Sku: 99620
*Warranty: 1 Year Onlinecarstereo.com warranty.
1 Year warranty from Onlinecarstereo.com implies that repairs must be returned to Onlinecarstereo.com, not the manufacturer. More information can be found in our help section under returns & warranties.
What's not covered : Misuse, abuse, defacement, physical damage of any kind, and improper installation / operation. Video and multimedia equipment with damaged or cracked screens.Subwoofers and speakers are not warranted against being blown, burned or abused.
