The Evolution C2 systems deliver sparkling high-frequency detail, smooth mid-range and powerful mid-bass, thanks to real silk dome tweeters and long linear excursion woofer designs.

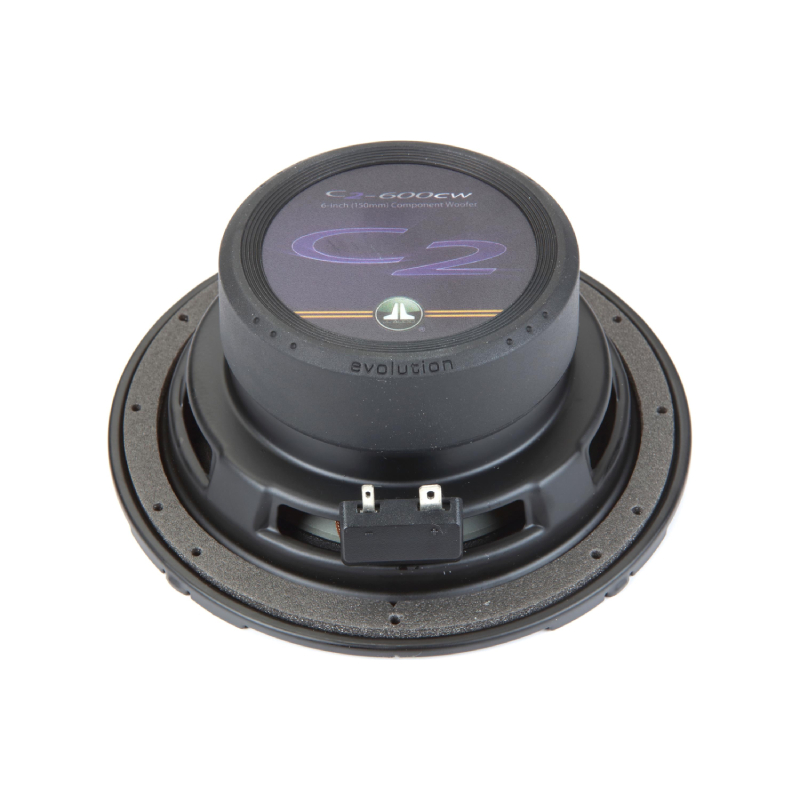

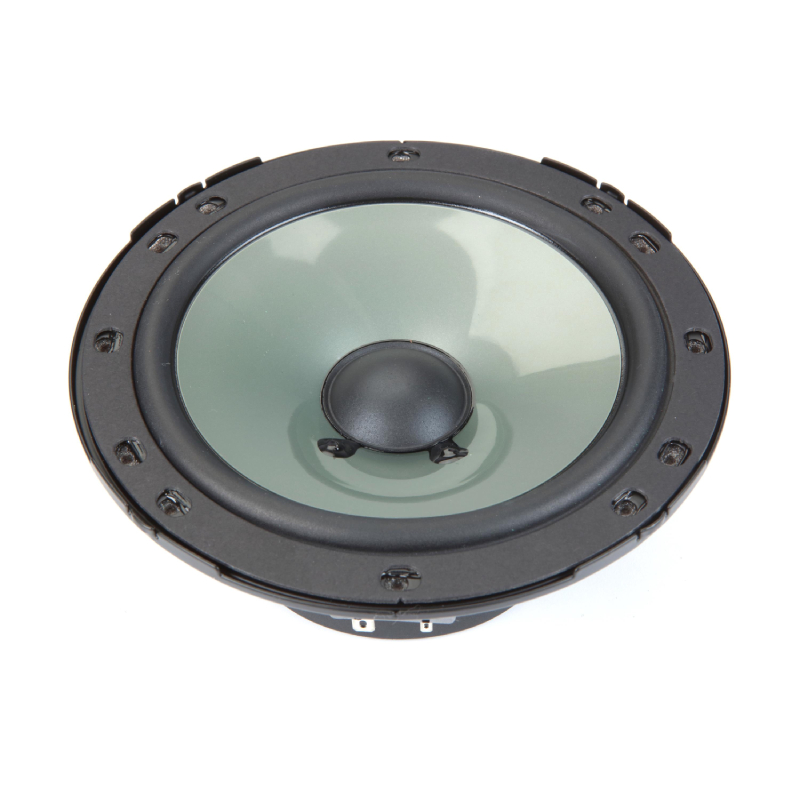

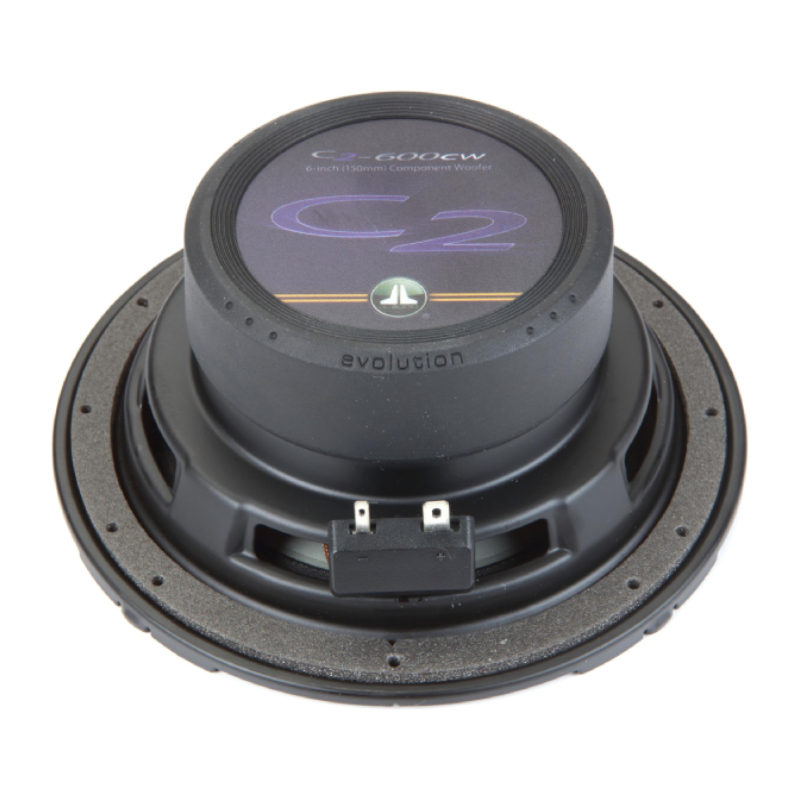

The C2-600 system features 6-inch (150 mm) component woofers with mineral-filled polypropylene cones, long excursion capabilities and stamped steel frames. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.
The 6-inch (150 mm) format is a direct fit in many Japanese vehicles where a full-size 6.5-inch speaker (165 mm) will not fit without modification. Multiple mounting patterns are provided on the woofer frame for easy installation into most vehicles that accept a 6-inch (150 mm) speaker.

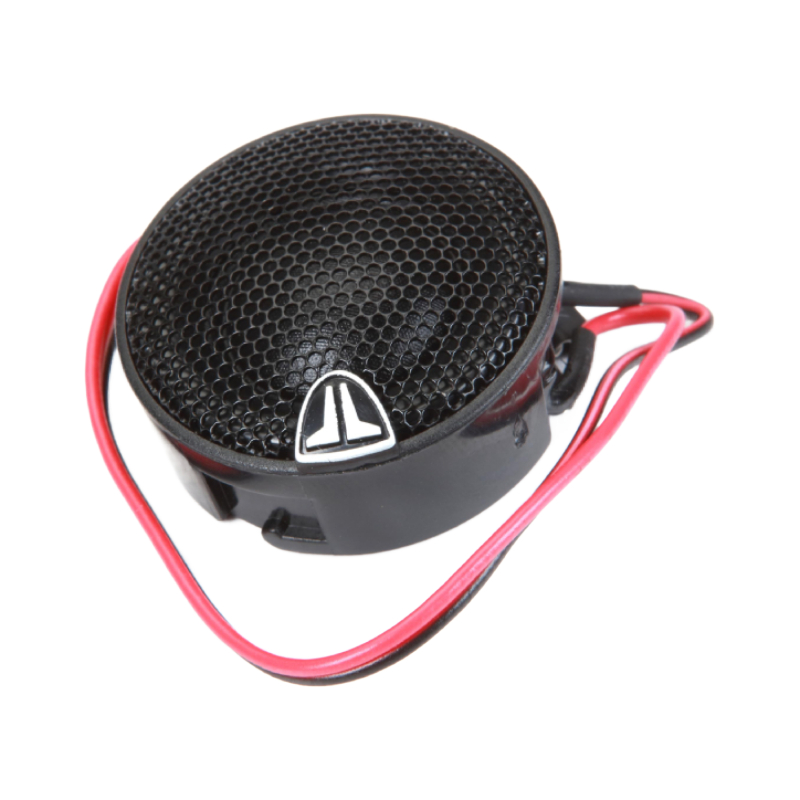

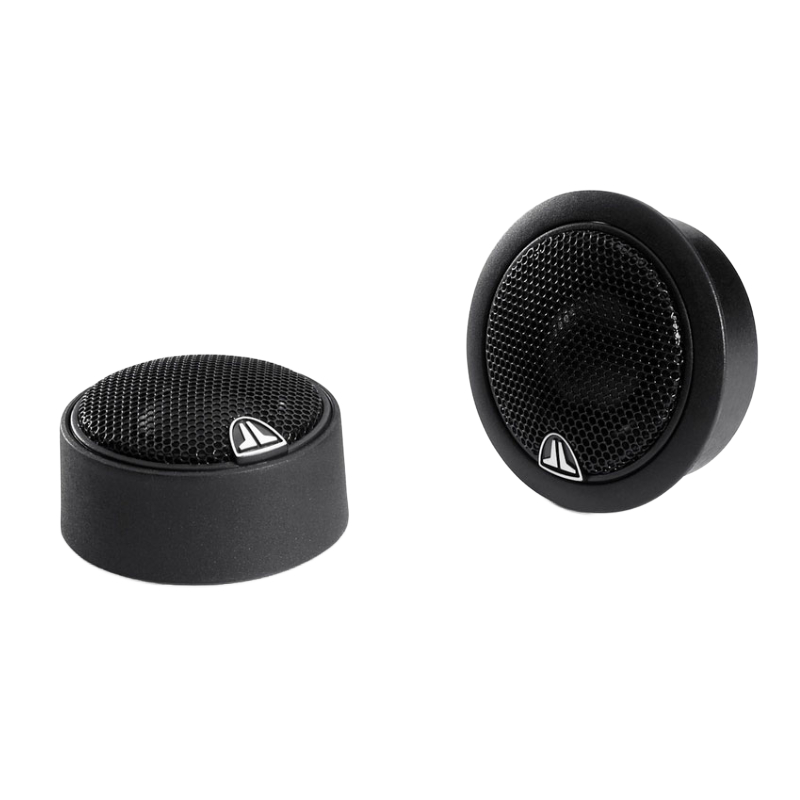

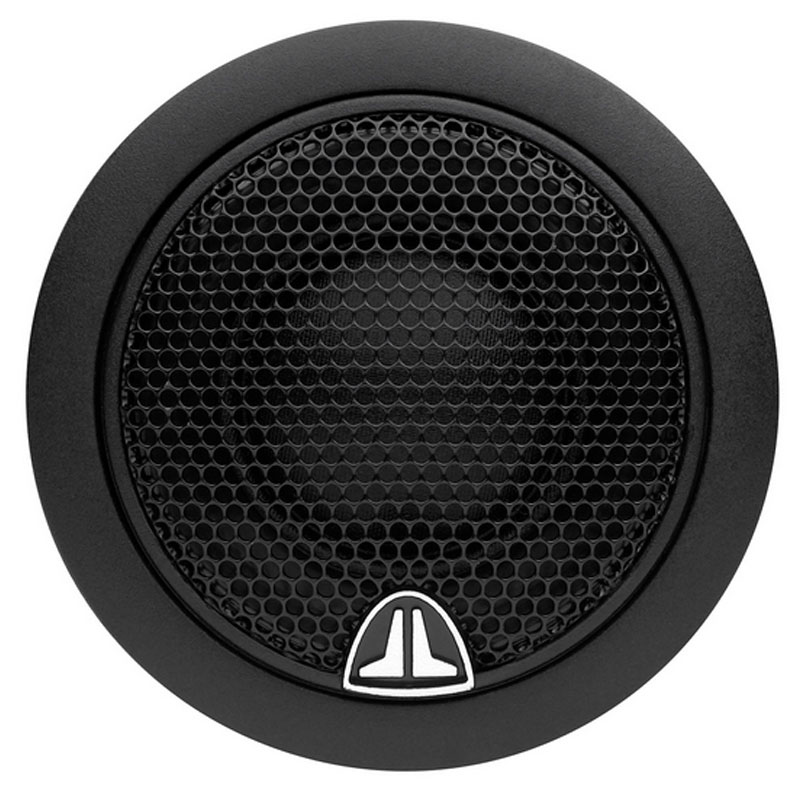

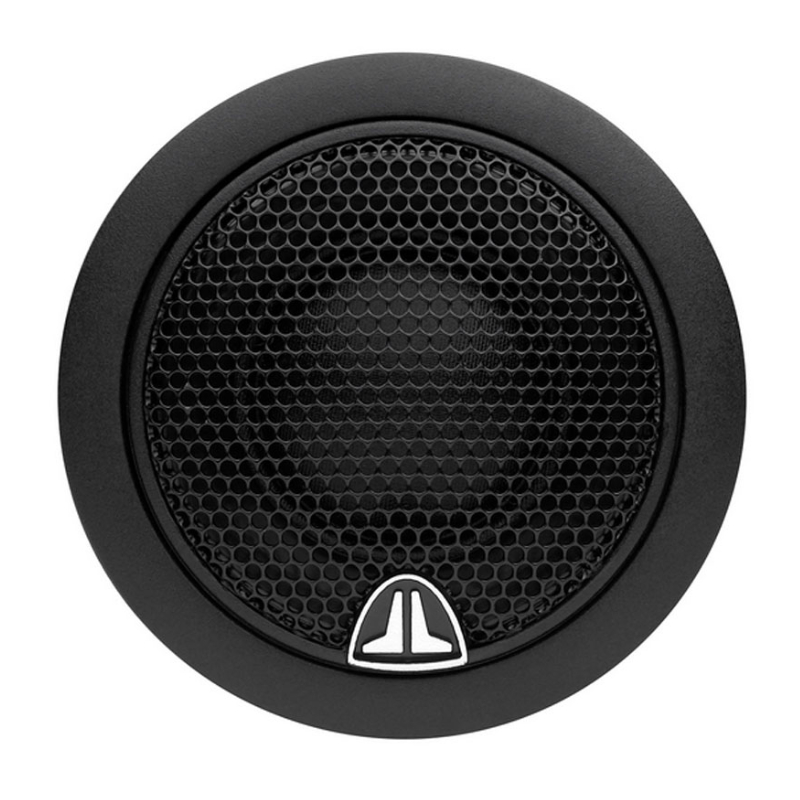

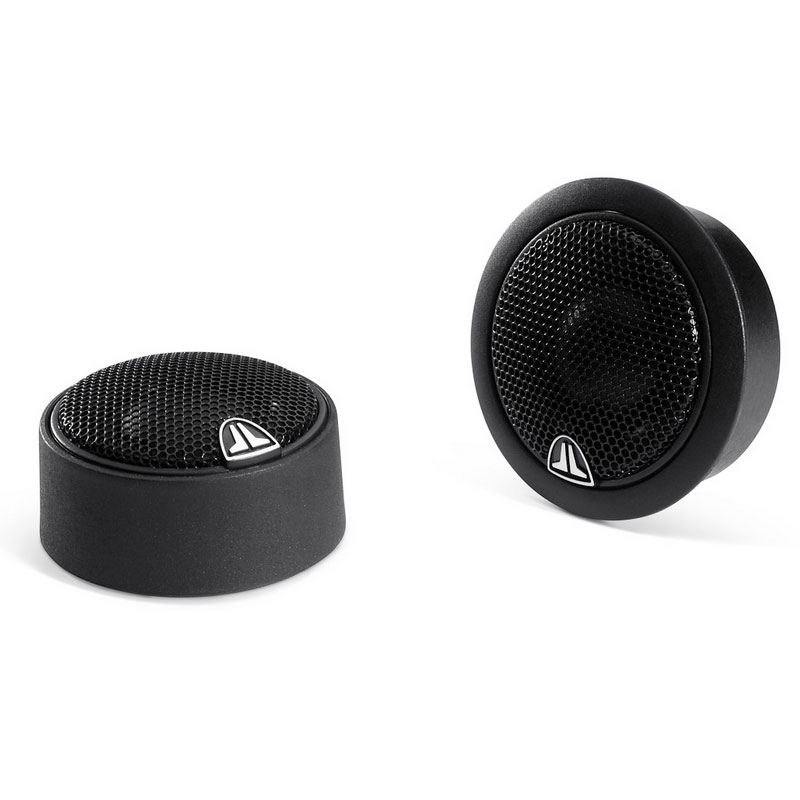

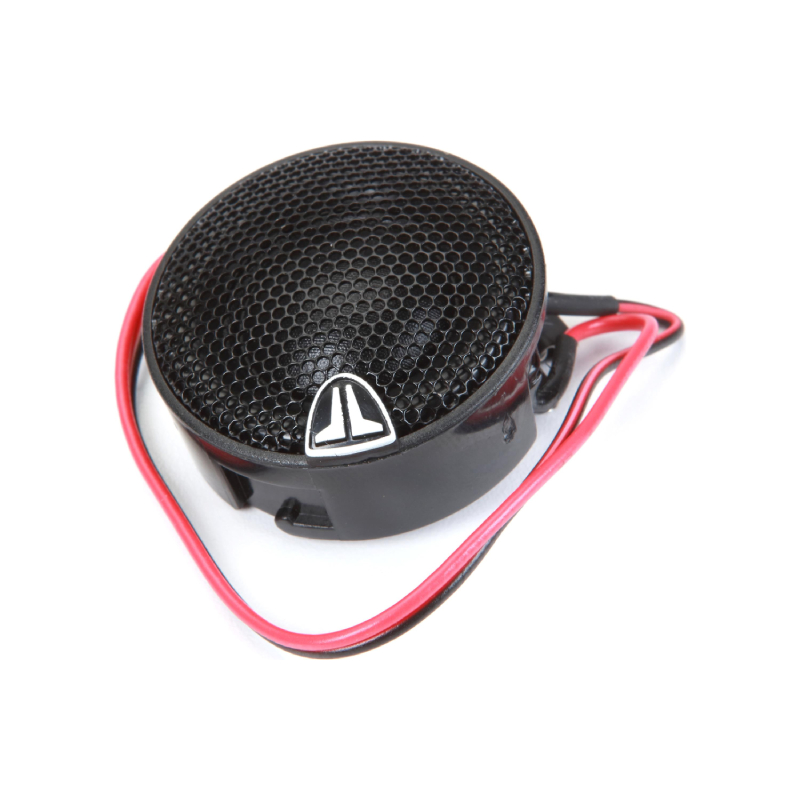

The C2 component tweeters are built with 0.75-inch silk dome diaphragms that deliver smooth, extended response, on and off axis. Flush-mounting and surface-mounting fixtures are included to fit a wide variety of installation needs.

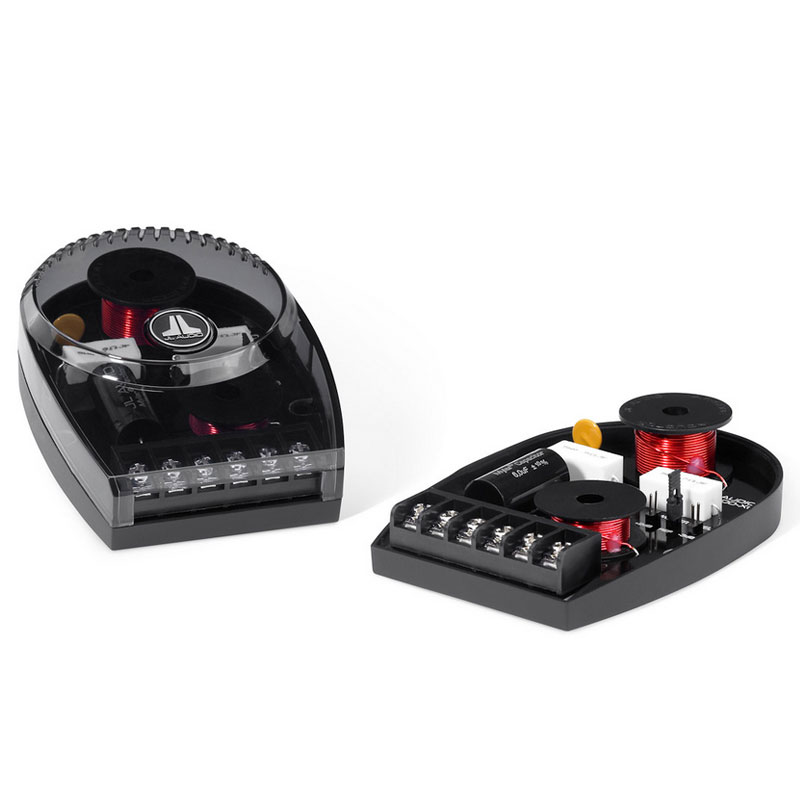

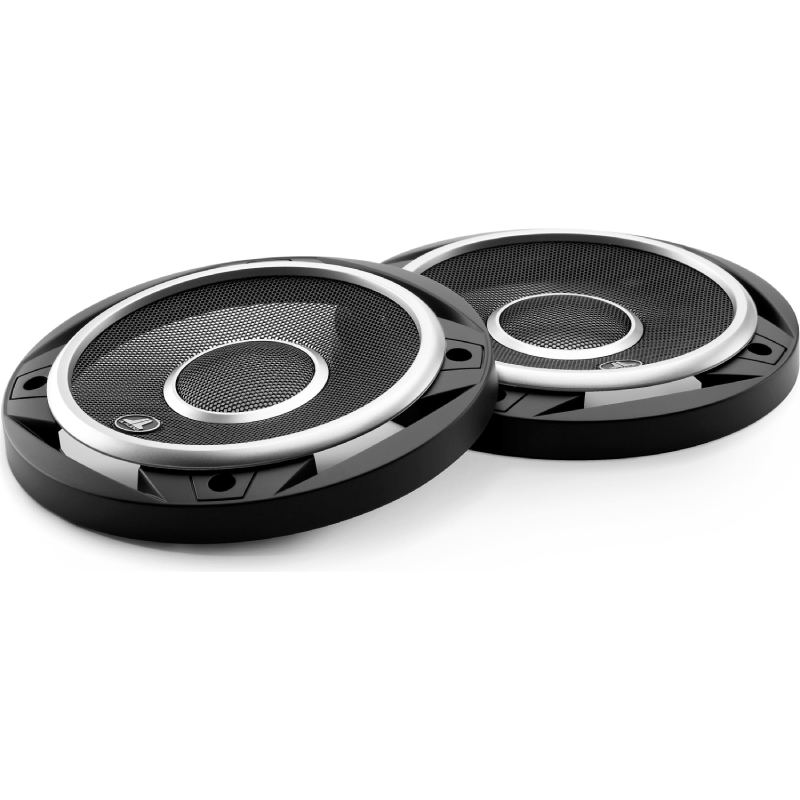

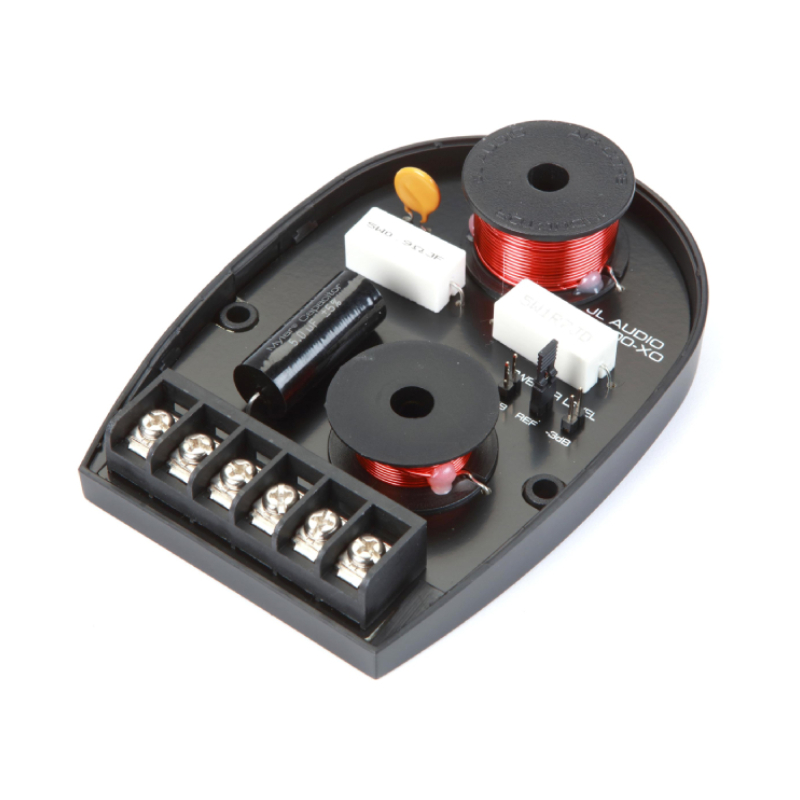

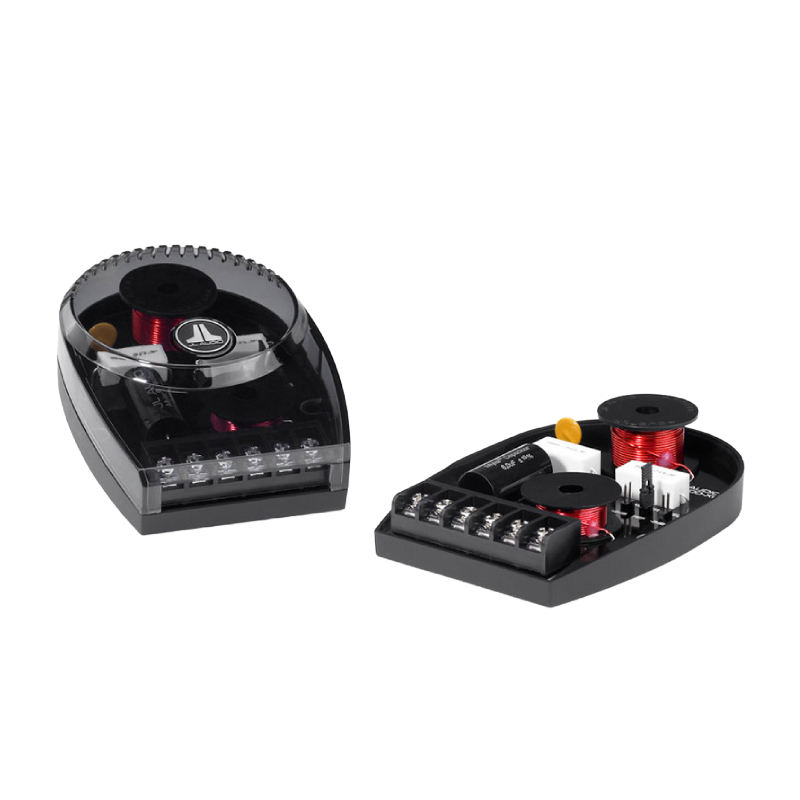

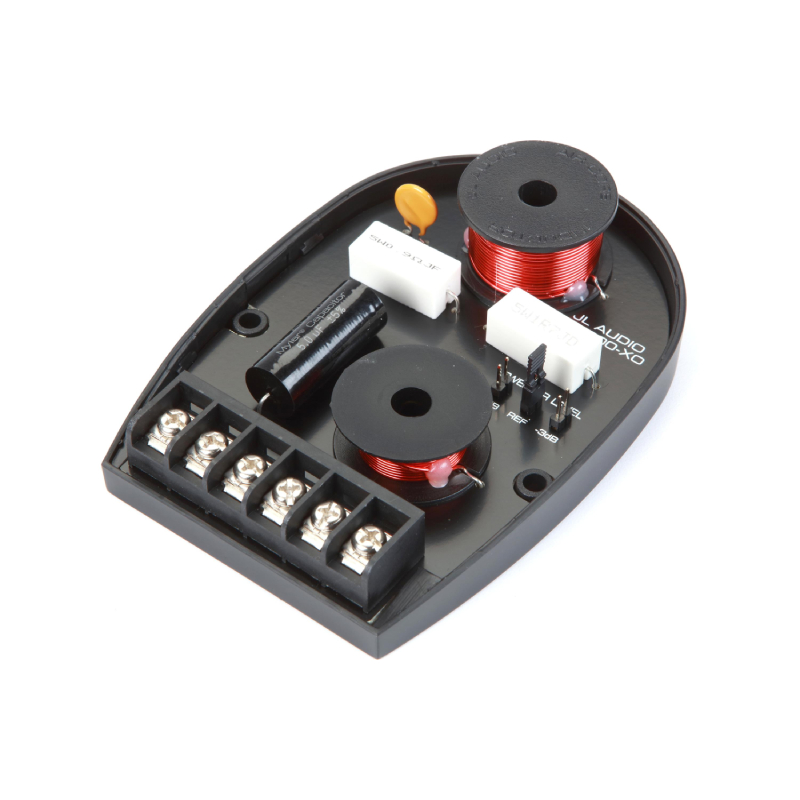

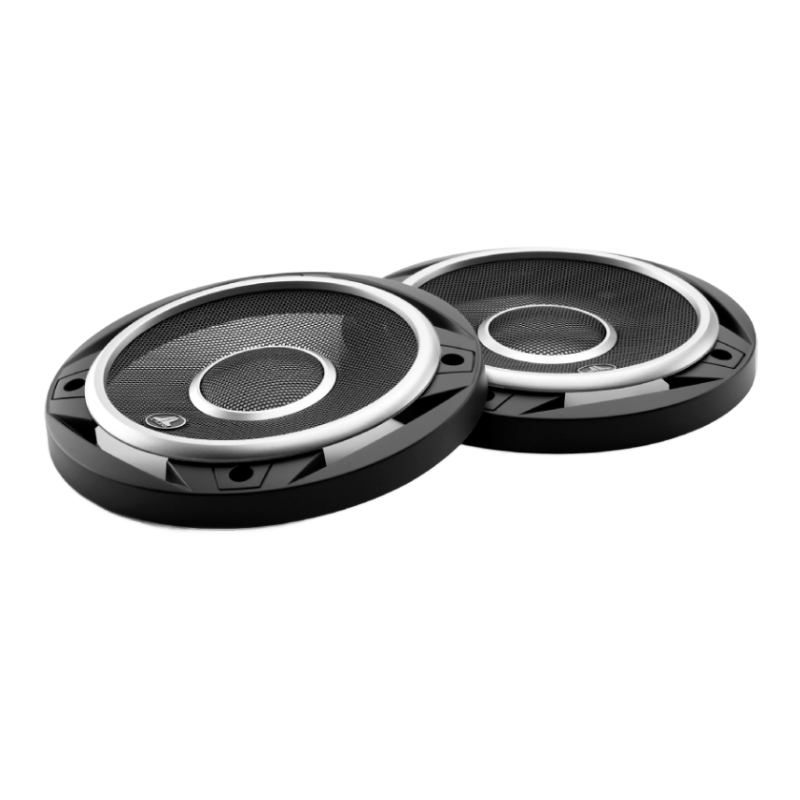

C2 crossover networks are compact and built with premium component parts, including Mylar® capacitors and segmented air-core inductors. Three levels of tweeter attenuation are provided, as well as a tweeter protector. Woofer grilles are included, each consisting of a black grille tray with satin silver accents and a black steel mesh grille with an electroformed JL Audio logo.
- 6.0" Evolution C2 Series 2-way Component Car Speakers
- Power Handling:
- Peak: 450 watts per set / 225 watts per channel
- RMS: 120 watts per set / 60 watts per channel
- Woofer Dimensions:
- Top-mount depth: 2.38"
- Cutout Dimensions: 5.00"
- Tweeter Dimensions: (Flush Mount)
- Top-mount depth: 0.76"
- Cutout Dimensions: 1.625"
- Crossover Dimensions:
- Width: 3.36"
- Height: 1.44"
- Depth: 4.72"
- Nominal Impedance: 4 ohm
- Efficiency: 90.5 dB @ 1 watt / 1 meter
- Frequency Response: 59 Hz - 22 KHz ± 3 dB
- Recommended Power Range: 15 - 100 watts per channel
- Injection Molded, Mica-filled Polypropylene Cone
- Butyl Rubber Surround
- 1.00" Voice Coil on Kapton® Former
- Flat, Symmetrical Roll Spider
- Ferrite Woofer Magnet
- 0.75" Silk Dome Tweeter
- Ferrofluid Cooling/Damping Neodymium Tweeter Magnet
- Crossover: 1st Order Low-Pass Filter, 2nd Order High-Pass Filter
- 3-Position Adjustable Tweeter Level
- Premium Mylar® Capacitors Premium Air-Core Inductors
- Black steel mesh grille with satin silver accents Included
- Product Highlights:
- Continuous Power Handling (RMS) 60 W
- Peak Music Power 225 W
- Recommended Amplifier Power (RMS) 15 - 100 W / Ch.
- System Efficiency 90.5 dB @ 1 W / 1 m
- System Nominal Impedance 4 Ω
- System Frequency Response 59 Hz - 22 KHz ± 3 dB
- Frame Outer Diameter* (A) 6.21 in / 158 mm
- Grille Tray Outer Diameter (B) 6.51 in / 163 mm
- Motor Outer Diameter (C) 3.15 in / 80 mm
- Frontal Coaxial Tweeter Protrusion (D) N/A
- Frontal Grille Protrusion** (E) 0.91 in / 23 mm
- Mounting Hole Diameter (F) 5.00 in / 127 mm
- Mounting Depth (G) 2.38 in / 60 mm
- Flush Mount Fixture Diameter (A1) 1.87 in / 48 mm
- Surface Mount Fixture Diameter (A2) 1.69 in / 43 mm
- Flush Mount Mounting Hole Diameter (B) 1.625 in / 41 mm
- Flush Mount Mounting Depth (C) 0.76 in / 19 mm
- Flush Mount Tweeter Frontal Protrusion (D1) 0.29 in / 7 mm
- Surface Mount Tweeter Frontal Protrusion (D2) 0.92 in / 23 mm
- Width (W) 3.36 in / 85 mm
- Depth (H) 1.44 in / 37 mm
- Depth (D) 4.72 in / 120 mm
- UPC: 699440996150
- Weight: 8
- Sku: 99615
