Pioneer :: GM-D8500M :: $189.00

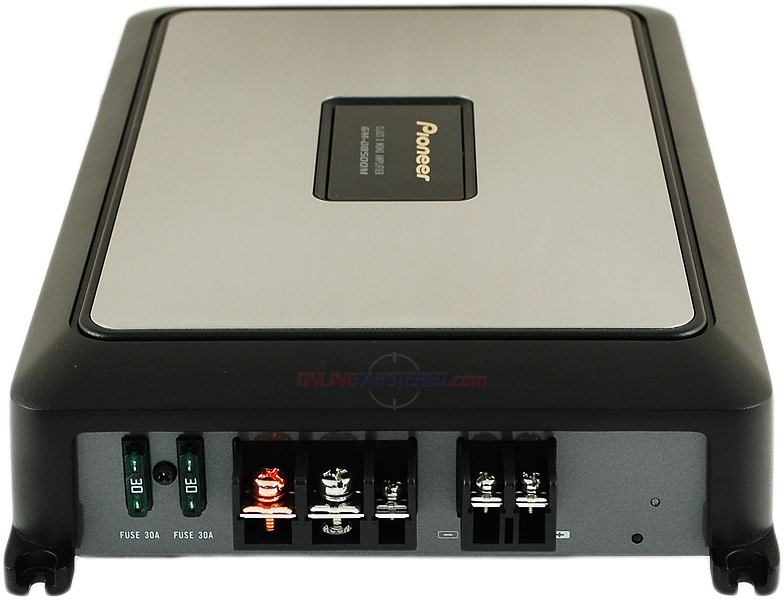

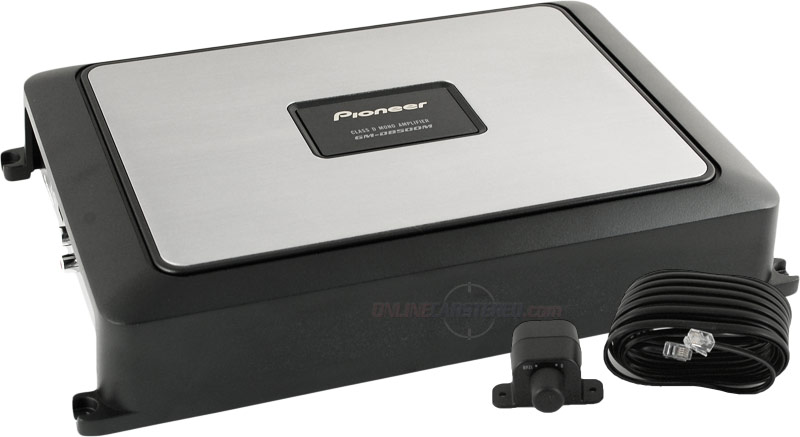

Pioneer GM-D8500M

Item# 23656

1200W Mono Block Class-D GM Digital Series Subwoofer Amplifier


Sorry, this product is no longer available.
Power Handling
  • 600 Watts x 1 @ 2 ohms
  • 300 Watts x 1 @ 4 ohms
General Features
  • Class D amplifier maximizes efficiency while minimizing heat generation
  • Extra-compact design for versatile installation
  • Variable Bass Boost with Wired Bass Remote precisely controls audio balance and impact

Same Powerful Output from a More Compact Amp
100 % of the power, 45 % of the size
The superior efficiency of a Class-D amplifier means higher power output and greater compactness than an analog amplifier offers.

Efficiently Compact, Awesome Power
Class-D amplifiers overcome the inefficiencies of traditional Class-A or AB amplifiers. Pioneer’s Class-D amps transform very little power into heat so a higher percentage of the power supply (67%) is transformed into the load. This results in a very compact amp which needs less input power to produce very high output power. The Class-D amplifier’s PWM (Pulse Width Modulator) modulates the original audio input signal with a triangulated signal wave which has a much higher fixed frequency. The result is a digital signal which contains both the input signal and a band of frequency components around the modulation frequency. A LPF (Low Pass Filter) then filters out the high frequency pulses and the resulting amplified output signal is then sent to the subwoofer and/or speakers.

Selectable 50Hz Bass Boost
Bass boost gives you more control over how your music sounds. It lets you set the optimal bass level for each speaker/sub connected to the GM-D8500M, so the tone controls from your headunit can do what they do best. And because this is selectable bass boost, you can set the level at 0dB, 6dB, or 12dB, whichever sounds best to you.

Built-In Crossover (40~240Hz Low-Pass Filter)
Built into the GM-D8500M is a very smart crossover network. It works like a gateway, routing the big bass signals (adjustable from 40 to 240Hz or lower, at -12dB/octave) and filtering out higher-frequency signals to that subwoofer. This optimizes your system's efficiency and delivers the best possible sound quality.

Speaker Level Inputs
What, you DON'T own a Pioneer headunit? Well, we won't hold it against you. In fact we'll even help you build onto your system. The GM-D8500M's speaker level inputs allow you to connect your OEM unit (or any unit that doesn't have the typical RCA-type inputs) without having to buy add-on adapters. So, the install goes faster, you save money, and you've got a Pioneer amp in your vehicle.

  • UPC: 012562969916
  • Weight: 8
*Warranty: 1 Year Onlinecarstereo.com warranty.
1 Year warranty from Onlinecarstereo.com implies that repairs must be returned to Onlinecarstereo.com, not the manufacturer. More information can be found in our help section under returns & warranties.
