Alpine :: VPA-B222 :: $449.00

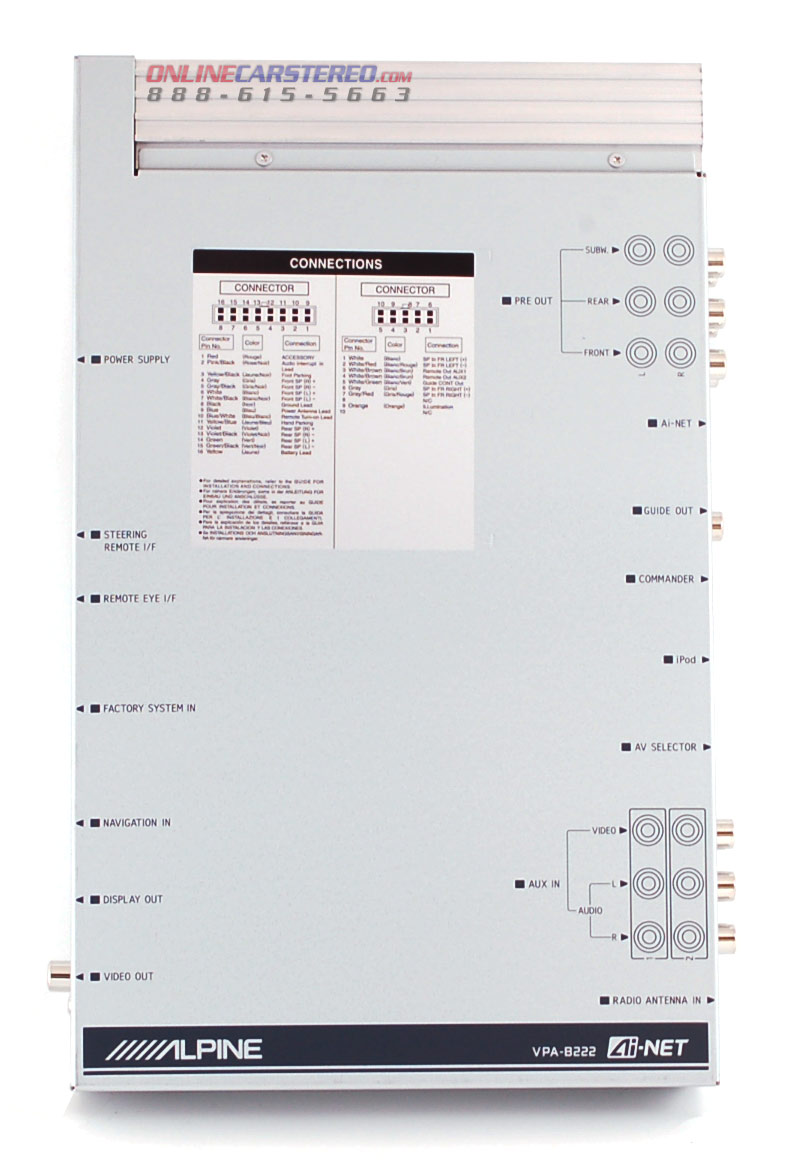

Alpine VPA-B222

Item# 26102

VehicleHub Pro Factory OEM Audio and Video Control System


Sorry, this product is no longer available.

AM/FM Radio Tuner Features:

  • HD Radio Ready
  • Preset Stations (FM:12/AM:6)
  • Auto Memory
  • Local/DX Selection
  • Preset Address Indicator
  • Up/Down Seek
  • FM Tuner Specifications:
    • Tuning Range: 87.7-107.9 MHz
    • Mono Usable Sensitivity: 9.3dBf (0.8 JV/75 ohms)
    • 50dB Quieting Sensitivity: 13.5dBf (1.3 JV/75 ohms)
    • Alternate Channel Selectivity: 80.0 dB
    • Signal-to-Noise (S/N): 80.0 dB
    • Stereo Separation: 45.0 dB
    • Capture Ratio: 2.0 dB
  • AM Tuner Specifications:
    • Tuning Range: 530-1, 710kHz
    • Usable Sensitivity (IEC Standard): 22.5/27.0 (µV/dBf)

SAT Radio Ready Features:

  • Sirius and XM Satellite Radio Compatible
  • Preset Memory, 3-Bands (18 Channels)
  • QuickSearch Function
  • Category Search
  • Text Scroll

Full Speed Connection for iPod:

  • Dedicated iPod Source Selection
  • Direct search function
  • Repeat One
  • Search Mode Selection (Playlist, Artist, Album, Song Title)
  • Shuffle (Albums, All)

CD Changer Control Features:

  • Repeat (One/Disc)
  • Music Sensor Up/Down
  • Forward/Backward
  • Disc Play/Pause
  • Elapse Time Display
  • CD Text Display/Scroll
  • MP3 Text Information Display (ID3 Tag)
  • Multi-CD Changer Control (with KCA-410C)
  • MP3 Changer Ready (CHA-S634)
  • M.I.X. One/All (Random Play One or All)

Bass Engine Sound Tuning:

  • Subwoofer Level Adjustment
  • Bass Center Frequency Control
  • Bass Width Adjustment
  • Bass Level Adjustment
  • Treble Center Frequency Control
  • Treble Level Adjustment
  • Bass Engine Sound Tuning Specifications:
    • Subwoofer Level Adjustment Range: -15dB to 0dB (1dB steps)
    • Loudness Control at 100Hz (Max): ±10dB
    • Bass Center Frequency : 60Hz, 80Hz, 100Hz, 120Hz
    • Bass Band Width Adjustment (Q): 4 choices (1 =wide, 4 =narrow)
    • Bass Level Control Range: +20dB to -14dB at 60Hz (2dB Steps)
    • Treble Center Frequency : 7.5kHz, 10.0kHz, 12.5kHz, 15.0kHz
    • Treble Level Control Range: +-14dB at 10.0kHz (2dB Steps)

General Features:

  • 2 Aux A/V Inputs and 1Aux V Out (3 AUX A/V Inputs, 2 Aux Out with Optional VPE-V431)
  • Full Speed Control
  • Remote Control Included
  • 50W x 4 High Power Amplifier
  • 3 PreOuts (2V)
  • 3-Mode Visual Enhancer / Spectrum Analyzer (with Optional VPE-V431)
  • Bass Engine
  • Subwoofer Level Control
  • Bass Center Frequency Control
  • Bass Band Width Adjustment
  • Treble Center Frequency Control
  • OEM Steering Remote Ready
  • MM Driver Ready (Hard Disc Drive Ready)
  • Separate Bass & Treble Control
  • Fader & Balance Controls
  • Loudness
  • Clock
  • Dimmer-on Input
  • Dedicated Navigation Input
  • Navigation Audio Mix
  • Power Antenna Lead
  • Remote-on Lead
  • Audio Interrupt In
  • Demo Function
  • Audio Mute
  • CD Changer Control Function
  • Limited Non-Refundable 30 Days Return Policy
  • General Specifications:
    • Chassis Size (W x H x D) mm: 275mm x 40mm x 170mm
    • Power Requirement: 14.4 (11-16)V.DC
    • Max Power Output: 50W x 4
    • CEA-2006 Power Rating (4Ohm@14.4 V =1% THD+N), S/N 80dBA (Ref: 1W into 4Ohm): 18W x 4
    • Pre Output Voltage (Before Clipping): 2V
  • UPC: 793276200518
  • Weight: 9
