Kenwood 8104D-W2512 Item# 27277

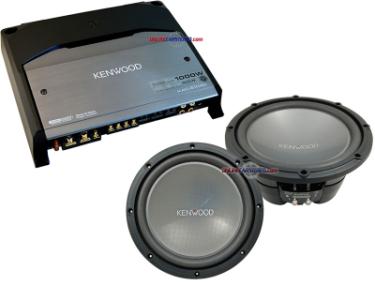

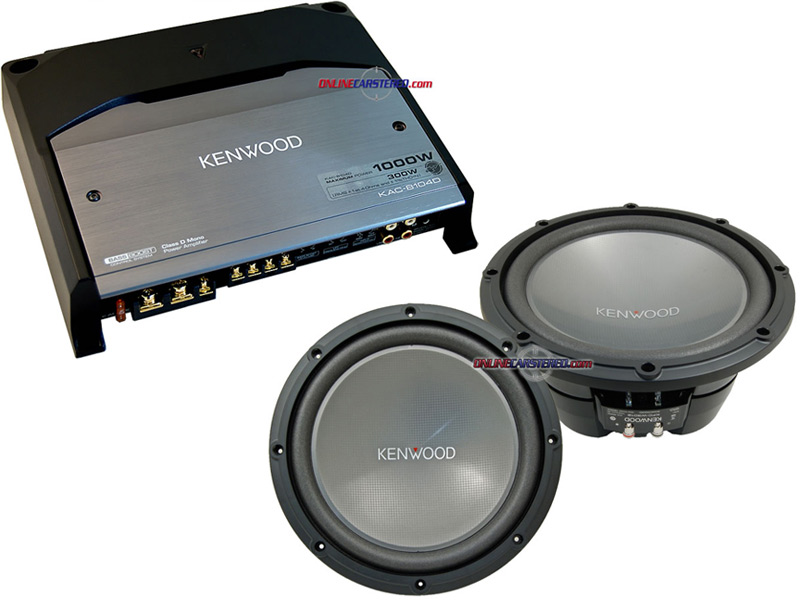

Entry Level Bass Package with KAC-8104D Mono Amplifier and Two KFC-W2512 Car Subwoofers
Kenwood :: 8104D-W2512 :: $219.00

Sorry, this product is no longer available.

Features

KAC-8104D Mono Subwoofer Amplifier
  • Mono subwoofer amplifier
  • 300W x 1 at 4ohms (20-200Hz 0.5%THD)
  • 500W x 1 at 2ohms (100Hz 0.8% THD)
  • CEA-2006 compliant
  • Bass Boost f=40Hz Gain 0 - 18dB
  • Class D Amplifier Circuit
  • Aluminum Die Cast Heat Sink
  • Power MOS-FET Switching Power Supply
  • Speaker Level Input and outputs
  • Signal Sensing Turn-On
  • 2ohm Load Capability
  • Line Output Terminals (RCA) for Extension
  • Blue Illumination
  • Gold Plated Power & Speaker Terminal
  • Built-in Variable Low-pass Filter 50-200Hz (24dB/oct)
  • Built-in Infrasonic Filter 15/25Hz (18dB/oct)
  • Fuse rating: 40A x 1
  • 8-gauge power and ground leads recommended - wiring and hardware not included with amplifier
  • 11-1/16"W x 2-3/8"H x 9-7/8"D
Power Handling
  • Max Power: 1000W
  • RMS Power: 300W
  • KFC-W2512 Subwoofer General Features
    • 10" Woofer with 4-ohm voice coil
    • Urethane Surround
    • Dragon Spider Design
    • 2-Layer Voice Coil Design
    • Dual Magnet Drive
    • 8AWG Wire Capable Push Terminals
    • Frequency Response: 37-300 Hz
    • Sensitivity: 83 dB
    • Mounting depth: 5-5/16"
    • Impedance: 4 Ohms
    • Sensitivity: 83dB
    • Free-Air Resonance: 44Hz
    • Frequency Response: 37Hz – 300Hz
    Recommended Sealed Enclosure
    • Volume: 1.0 cu.ft
    • Width: 13"
    • Height: 14-3/4"
    • Depth: 12-13/16"
    • Mounting Hole: 9-3/16"
    • Displacement: 0.098 cu.ft
    Recommended Vented Enclosure
    • Volume: 1.25cu.ft
    • Width: 19-1/8"
    • Height: 13-3/8"
    • Depth: 11-13/16"
    • Mounting Hole: 9-3/16"
    • Slot Width: 1-3/8"
    • Slot Height: 11-7/8"
    • Slot Length: 15-3/4"
    • Displacement: 0.098 cu.ft
    • Weight: 45
    *Warranty: 1 Year Onlinecarstereo.com warranty.
    1 Year warranty from Onlinecarstereo.com implies that repairs must be returned to Onlinecarstereo.com, not the manufacturer. More information can be found in our help section under returns & warranties.
