What's Included:
- 8 Large speed clips
- 2 Tweeters (each tweeter has a 5" Length of wire attached)
- 2 Flush-mount retaining clips
- 2 Flush-mount tweeter housings (installed on tweeters)
- Templates for woofers and tweeters are on the box
- 8" Strip of Dum-Dum
- 2 Wing nuts
- Two 5-1/4" Woofers
- Four 5/8" Self-tapping screws

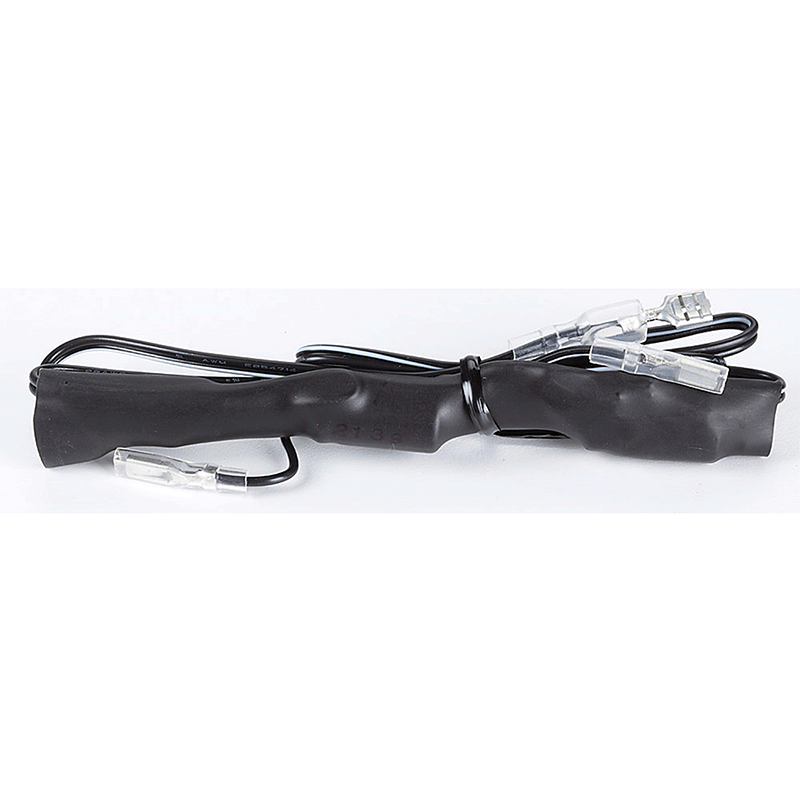

- Two 28" Tweeter wires with integrated crossovers
- 2 Woofer grilles
- 2 Plastic grille rings
- 2 OEM tweeter mounting brackets
- Eight 1" Self-tapping screws
- 4 Small speed clips
- Installation instructions (English/ French/ Spanish)
- Warranty information
Product Highlights:
- sensitivity: 86 dB

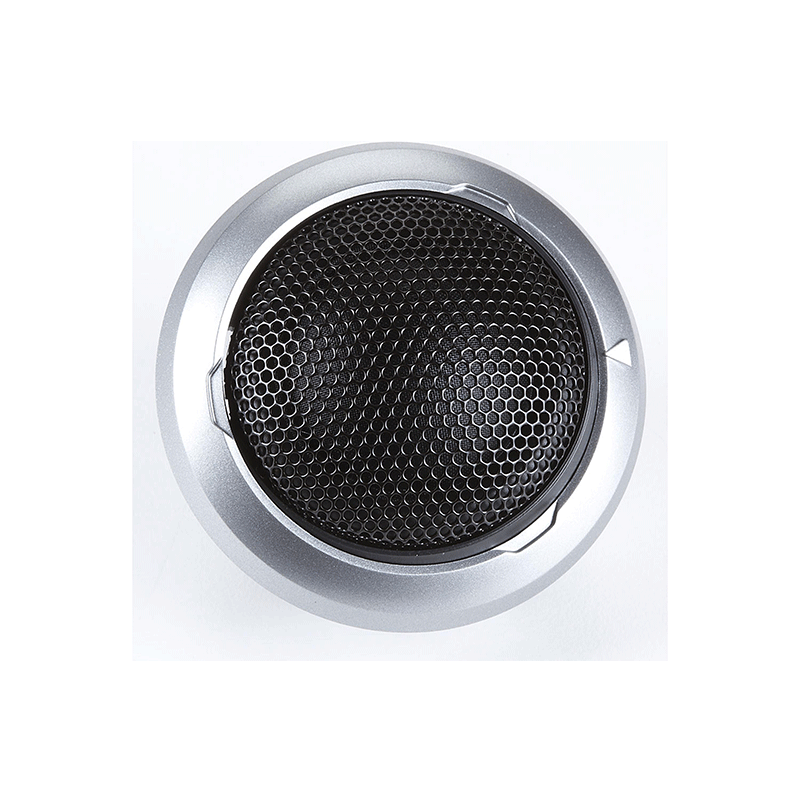

- 1" soft dome tweeter
- frequency response: 63-24,000 Hz
- in-line crossover network

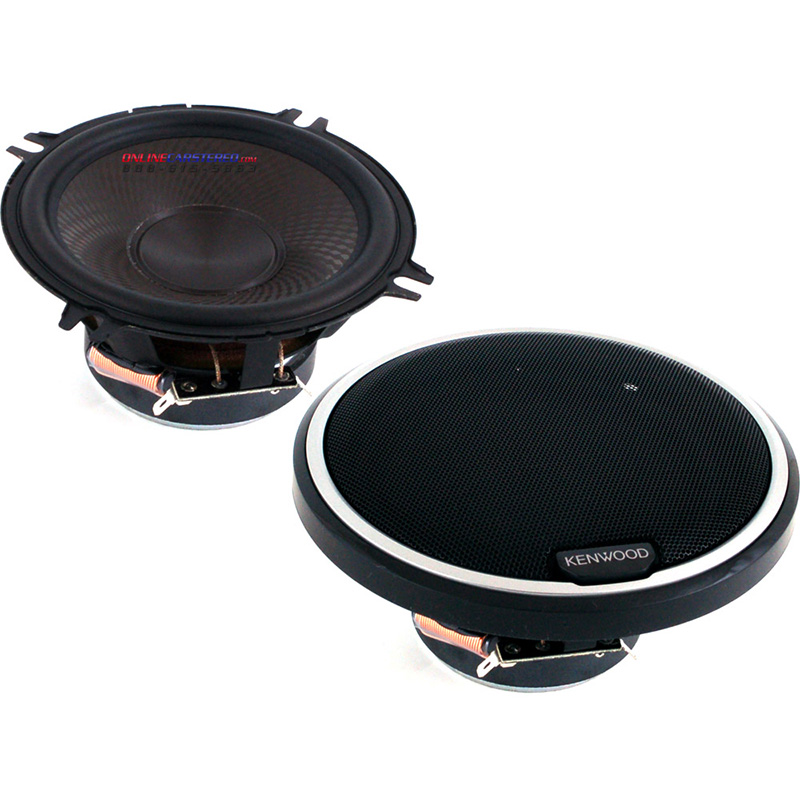

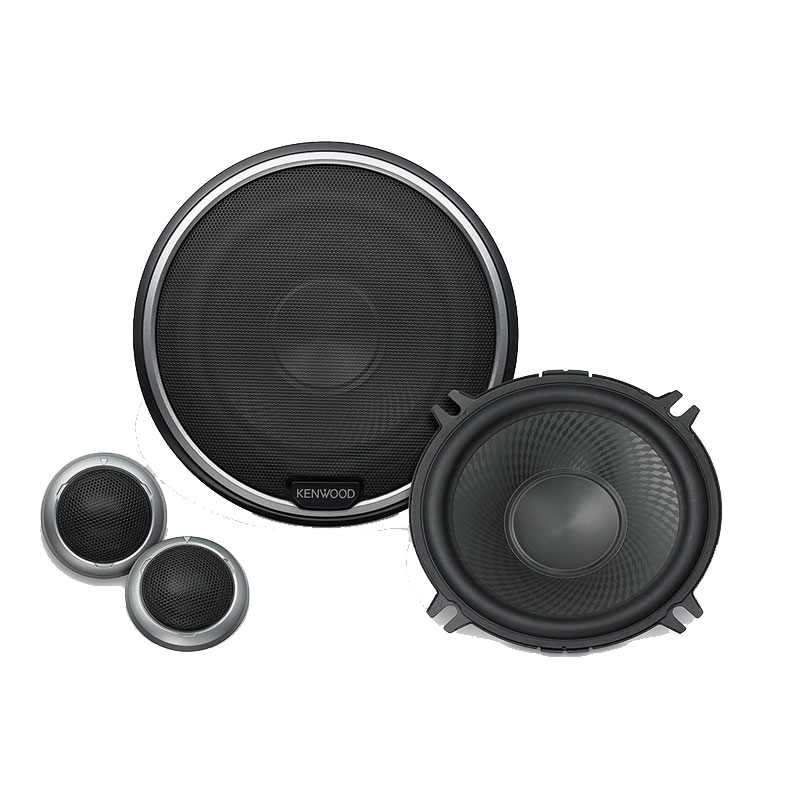

- package includes two 5-1/4" woofers and two tweeters
- Diamond Array Pattern polypropylene woofer with rubber surround
- power range: 5-45 watts RMS (240 watts peak power)
- depth: 2-1/4"
- Diameter : 5.25 (approx) Inch
- Sensitivity : 86 dB
- Frequency Response : 63-24000 Hz
- RMS Power Range : 45 Watts
- Peak Power Handling : 240 Watts

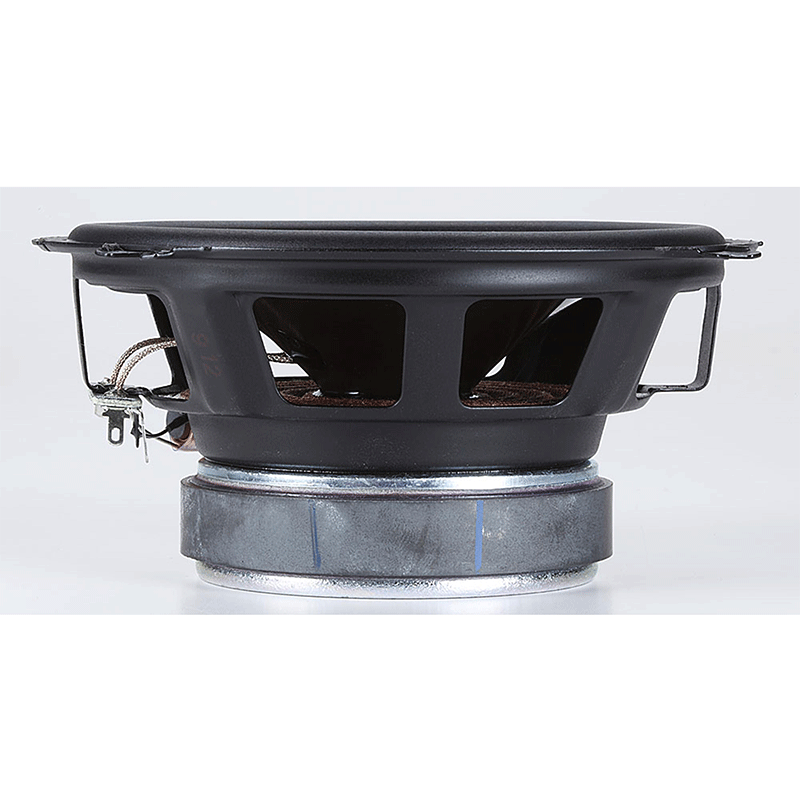

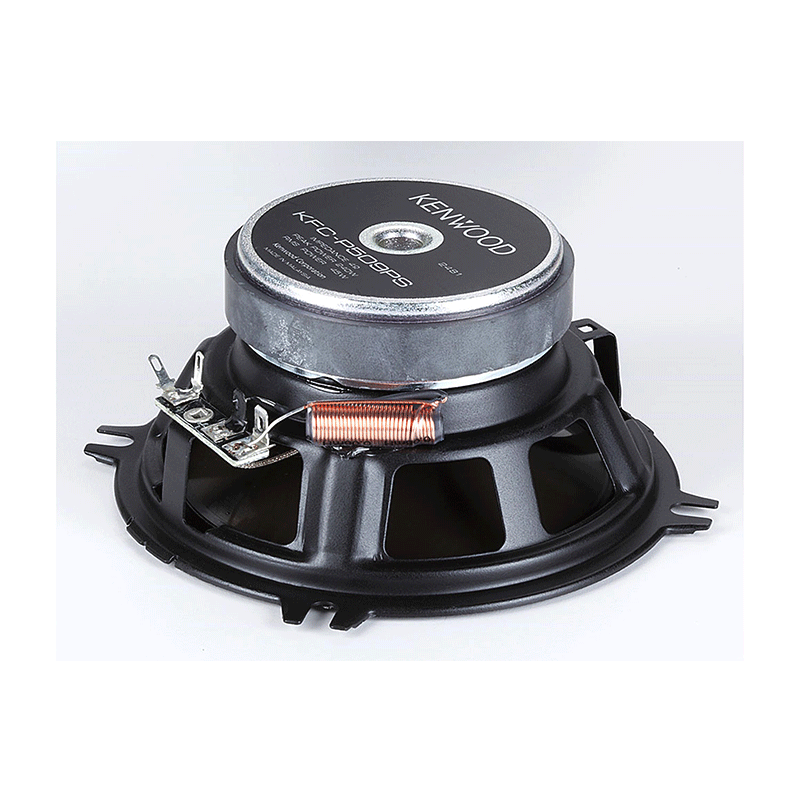

The 5-1/4" woofer cones are textured Polypropylene and use rubber surrounds for added durability and bass response. The woofer basket is designed to fit a standard 4-hole 5-1/4" application.
| Specifications |
| Top-mount Depth (Inches) |
2 3/8 |
| Tweeter Composition |
--- |
| Sensitivity |
86 dB |
| Speaker Size |
5 1/4 |
| Frequency Response |
63 - 24k Hz |
| Woofer Composition |
Poly |
| Impedance (Ohms) |
4 |
| Bottom-mount Depth (Inches) |
2 1/2 |
| Cutout Diameter or Length (inches) |
4 3/4 |
| RMS Power Range (Watts) |
5-45 |
| Peak Power Handling (Watts) |
240 |
| Design |
2-way |
| Tweeter Design |
1" Dome |
| Woofer Surround |
Rubber |
- UPC: 0019048187574
- Weight: 8
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
