Item# 27439
JL Audio C5-653 - $799.99
Please roll over the image to zoom in. Click on the image to see larger image.

JL Audio C5-653 (99125)

Item# 27439

Condition:  Brand New

  • comments
  • email
  • Facebook
  • Twitter
  • Print

C5 Series 6-3/4" 3-way component speaker system225W Peak Power

Savings Of:
Your Price $799.99

FREE Shipping in US 48!

vehicle fit guide

The smoothness and transparency of a high-end silk dome tweeter combines with top-flight component mid-range driver and woofer performance to create a loudspeaker system with exceptional refinement and dynamic capability.

The C5-653 system features 6.5-inch (165 mm) component woofers with Kurt Müller cones and suspensions and die-cast alloy baskets. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems. The 4-inch (100 mm) midrange drivers also benefit from Kurt Müller cones and suspensions and are built on a stamped steel chassis with removable mounting tabs. This allows them to be installed in a variety of mounting applications.

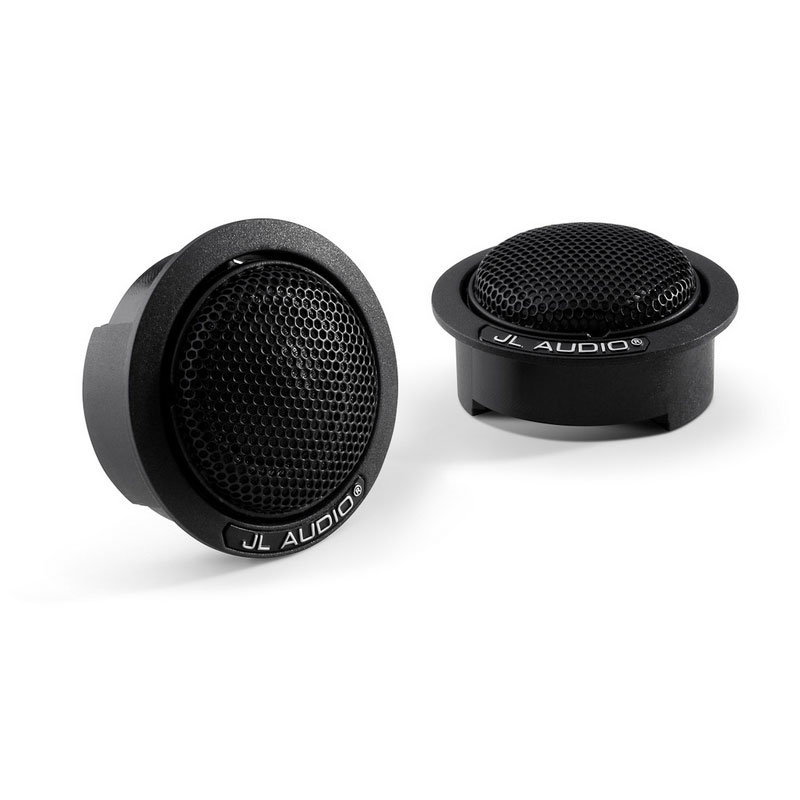

The C5 component tweeters are built with 0.75-inch silk dome diaphragms that deliver smooth, extended response, on and off axis. Flush-mounting and surface-mounting fixtures are included to fit a wide variety of installation needs. The flush-mount fixtures feature our RSR (Ratcheting Swivel Rotation) mechanism to allow precise tweeter aiming after installation.

C5 crossover networks are compact and built with premium component parts, including Mylar® capacitors and segmented air-core inductors. Four levels of tweeter attenuation are provided, as well as three levels of mid-range presence adjustment, for twelve possible voicing combinations!

General Features:

  • 6.5" Evolution C5 Series 3-way Component Car Speakers
  • Power Handling:
  • Peak: 450 watts per set / 225 watts per channel
  • RMS: 150 watts per set / 75 watts per channel
  • Woofer Dimensions:
  • Top-mount depth: 2.54"
  • Cutout Dimensions: 5.56"
  • Mid-Range Dimensions:
  • Top-mount depth: 1.62"
  • Cutout Dimensions: 3.625"
  • Tweeter Dimensions: (Flush Mount)
  • Top-mount depth: 0.56"
  • Cutout Dimensions: 1.50"
  • Crossover Dimensions:
  • Width: 4.17"
  • Height: 1.68"
  • Depth: 5.86"
  • Nominal Impedance: 4 ohm
  • Efficiency: 89.5 dB @ 1 watt / 1 meter
  • Frequency Response: 48 Hz - 25 KHz ± 3 dB
  • Recommended Power Range: 25 - 150 watts per channel
  • 6.5" Woofer Specifications:
  • Mineral-Filled Polypropylene Cone
  • Butyl Rubber Surround
  • Cast Alloy Frame/Basket
  • Elevated Frame Cooling
  • Ferrite Woofer Magnet
  • 1.00" Voice Coil on Kapton® Former
  • Low-Profile, Symmetrical Roll Spider
  • Dynamic Motor Analysis (DMA) Optimized Motor
  • 4" Mid-Range Specifications:
  • Mineral-Filled Polypropylene Cone
  • Butyl Rubber Surround
  • Ferrite Woofer Magnet
  • 1.00" Voice Coil on Kapton® Former
  • Low-Profile, Symmetrical Roll Spider
  • Dynamic Motor Analysis (DMA) Optimized Motor
  • 0.75" Tweeter Specifications:
  • Silk Soft Dome Tweeter
  • Ferrofluid Cooling and Damping
  • Neodymium Magnet
  • 2-way Crossover Network w/ 2nd Order Low-Pass and 2nd Order High-Pass Circuit
  • Premium Mylar® Capacitors w/ Air-Core Inductors
  • 4-Position Adjustable Tweeter Output Level
  • 3-position Mid-range Presence Control
  • Polyswitch Tweeter Protection
  • Black Steel Mesh Grille with An Electroformed JL Audio Logo Included
  • Product Highlights:

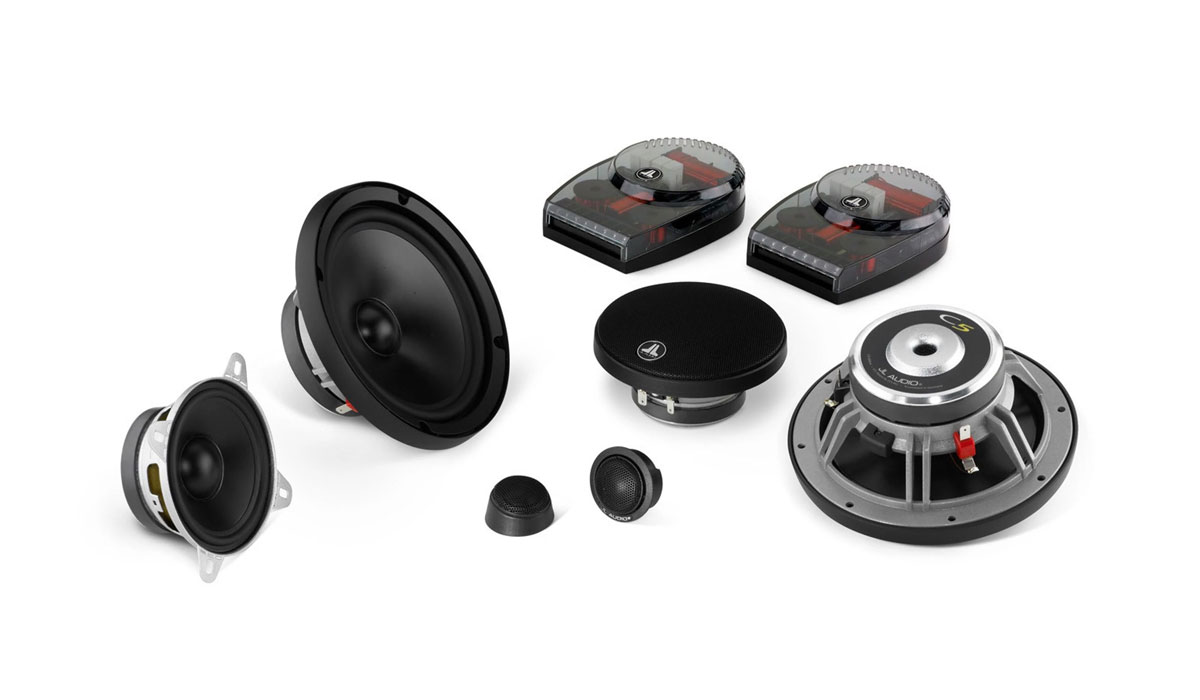

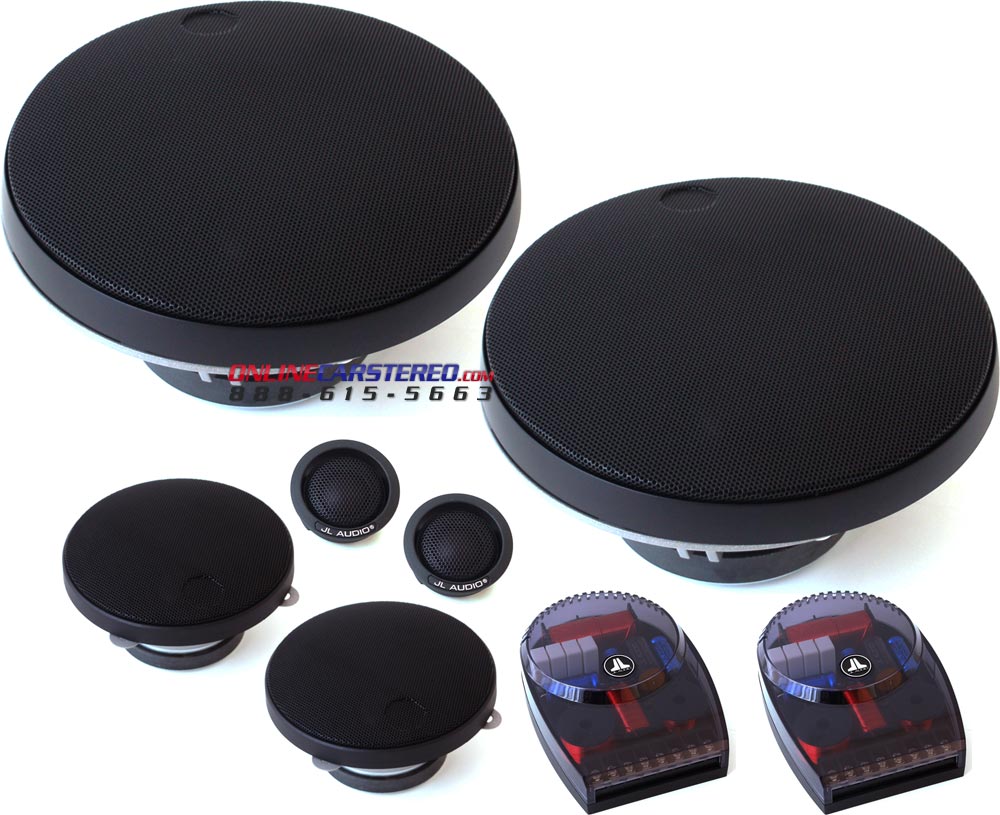

  • component speaker system includes two 6-3/4" woofers, two 4" midrange drivers, 2 tweeters, and two external crossovers
  • 6-3/4" mineral-filled polypropylene woofer with butyl rubber surround
  • cast alloy frame with Elevated Frame Cooling
  • 4" mineral-filled polypropylene midrange driver with butyl rubber surround
  • 3/4" silk dome tweeter
  • 3-way external crossover with 4-position tweeter level and 3-position midrange control
  • includes two woofer grilles and two midrange grilles
  • quick slides and other speaker connectors included (package does not include speaker wire)
  • 4-ohm impedance
  • power range: 25-75 watts RMS (225 watts peak)
  • frequency response: 48-25,000 Hz
  • sensitivity: 89.5 dB
  • woofer top-mount depth: 2-9/16"
  • UPC: 699440991254
  • Weight: 11
  • Sku: 99125
*Warranty: 1 Year Onlinecarstereo.com warranty.
1 Year warranty from Onlinecarstereo.com implies that repairs must be returned to Onlinecarstereo.com, not the manufacturer. More information can be found in our help section under returns & warranties.
What's not covered : Misuse, abuse, defacement, physical damage of any kind, and improper installation / operation. Video and multimedia equipment with damaged or cracked screens.Subwoofers and speakers are not warranted against being blown, burned or abused.

Do you own this product?  Write a review

   Harvey From Florida
These fit perfect in my Gen 2 Mini Cooper. They sound great for books on tape, classical, jazz OE rock. Happy I bought them.

   Billy From Sarasota, fl.
These are very nice sound,quality speakers . I've had 2 way and 3 way sets and I would recommend spending the cash for the 3 way. The crossovers are about twice as heavy as the 2 way ones. Very happy with them (speakers)and online car stereo.

   Tim W. From PA
Honestly the best speakers I've owned for the price. These easily compete with 900-1000 dollar sets from Hertz, Morel, and Focal. I have these install in my 96 Saab with the mids and tweeters mounted in the factory dash location and the woofer in a custom kick panel. They are being powered active off a XD600.6 amp and they get extremely loud, but are so smooth. The woofers are very punchy in the kick panel and that blends perfect with my Sundown SA-8 subwoofer. While the mid range and tweeter provide a natural vocals and instrumentals. These are awesome for listening to any type of music, i listen to a lot of The Police, Bad Company, Blondie, Pink Floyd, David Bowie, etc... and it literally sounds like a live concert in my car. I highly recommend these speakers if you want a high end sound for half the cost of a equal comparison.
