Alpine :: TME-S370 :: $199.00

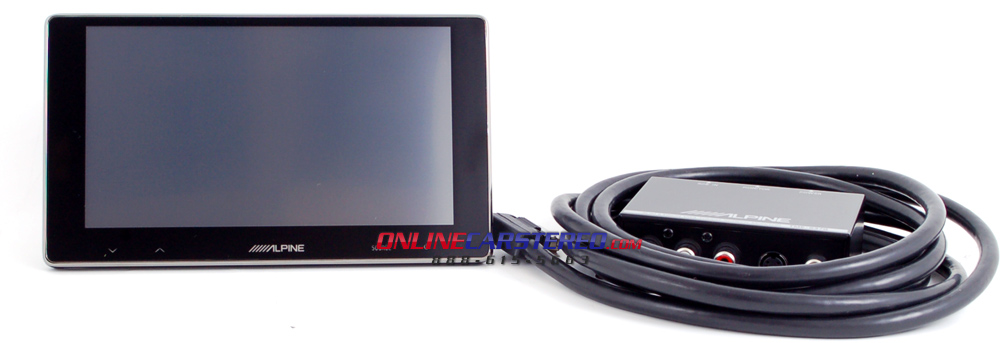

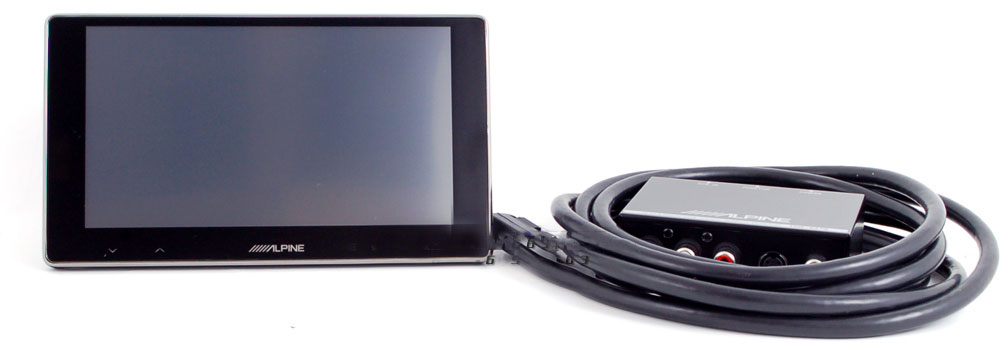

Alpine TME-S370

Item# 27851

6-1/2" Touchscreen Monitor with Slim Profile

Sorry, this product is no longer available.


  • 6.5" Widescreen Touchscreen Display Monitor
  • Perfect add-on for trucks, vans, SUVs, and other vehicles
  • Front panel soft-touch controls for volume, source mode, and power on/off functions
  • Resolution of 800 x 480 for optimum detailed viewing
  • Can be used for front or rear seat video, control panel/display for navigation, and rear camera system
  • Includes four 4mm threaded mounting screen holes in universal AMPS pattern compatible with Pro Fit universal mounting solutions
  • Built-in speaker on rear panel and internal amplifier with outputs from Auxiliary input and Navigation guidance
  • Menu allows user to set monitor to NTSC, PAL, or Auto
  • Includes hideaway unit with 8' cable to attach to monitor screen
  • Hideaway unit has all input connections plus an 8-pin harness
  • Connected to an optional Sirius Backseat TV to allowing user to change channels, select display mode, and turn power to device on or off
  • Fully adjustable brightness, color, tint, contrast, sharpness, and visual EQ
  • Optional rear-view camera allows user to access flip functions and "camera interrupt" mode
  • Built-in IR remote sensor for connecting to an Alpine video source with remote control input lead
  • Ambient light sensor along front of panel detects light inside the vehicle to automatically adjust the brightness of the monitor
  • Compatible with the NVE-N872A Satellite In-Car Navigation System, PMD-B200 GPS Navigation w/ Bluetooth, and NVE-P1 GPS Navigation Add-on with PMD-DOK2
  • Slim monitor with full flat surface design with no bezel or frame
  • PAL/NTSC Compatible
  • Multi-language OSD (On-Screen Display)
  • Left and Right RCA A/V inputs
  • Composite video input
  • S-Video input
  • Proprietary 13-pin input for Navigation system
  • Add-on navigation drive for select Alpine DVD receivers such as the Alpine NVE-M300
  • Compatible with optional DVD player or changer to control head units audio, play/pause, menu controls, subtitles, shuffle, power on/off, and etc.
  • Screen Size: 6-1/2"
  • Aspect Ratio: 16:9
  • Resolution: WVGA 800 x 480 pixels
  • Base color is selectable between blue, green, red, or amber
  • Operation System: TFT active matrix
  • Number of Picture Elements: 1,152,000 pcs
  • Illumination: LED
  • Power Requirements: 14.4V DC
  • Also found as: TMES370, TME S370
  • Dimensions (Monitor): 1-7/16"D x 7"W x 3-15/16"H
  • Dimensions (Hideaway): 1-1/8"D x 3-7/16"W x 2-3/8"H


  • UPC: 793276200679
*Warranty: 1 Year warranty.
1 Year warranty from implies that repairs must be returned to, not the manufacturer. More information can be found in our help section under returns & warranties.
What's not covered : Misuse, abuse, defacement, physical damage of any kind, and improper installation / operation. Video and multimedia equipment with damaged or cracked screens.Subwoofers and speakers are not warranted against being blown, burned or abused.
