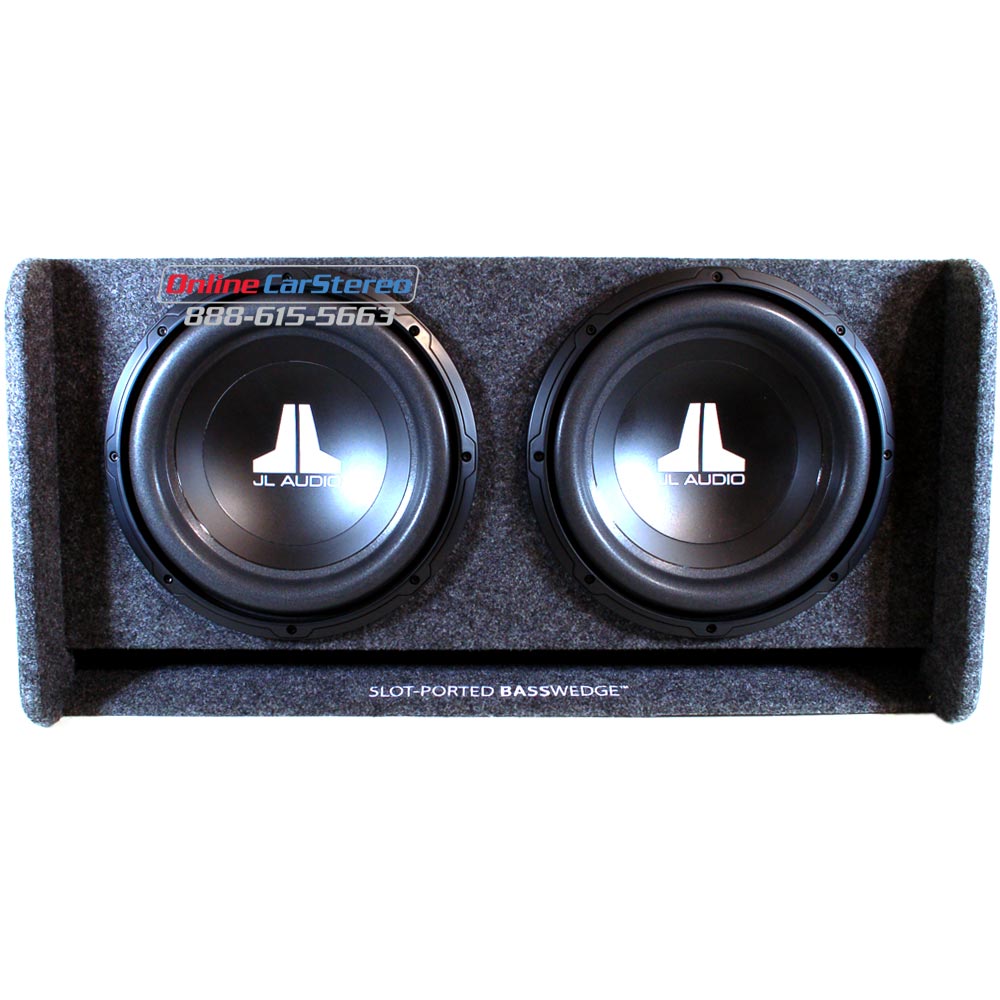

This powerful slot-ported BassWedge™ subwoofer system delivers awesome output at an unsurpassed value. The slot-port runs along the bottom of the enclosure and fires on the same plane as the woofers to produce excellent extension and response smoothness.
The port mouth is flared to minimize air-flow noises. The ultra-versatile BassWedge™ shape has extended sides so that it can be placed with the woofers firing out or straight down, off the floor of the vehicle. The shape works equally well in forward or rear-firing installations.
This gives you plenty of options for tweaking the loading of the enclosure into your vehicle. This subwoofer system is shipped wired, loaded and ready to connect via a push-button terminal. Finish: Dark gray, high-grade automotive carpet with "JL AUDIO" embroidery on the top edge and "Slot-Ported BassWedge™" embroidered on the port mouth. Construction: MDF Recommended amplifier power: 150 - 600W
- 0" Single 4 Ohm W0v3 Series Subwoofer
- Power Handling:
- Peak: 600 watts
- RMS: 300 watts
- 2" High temperature voice coil
- Sensitivity: 84.07 dB
- Xmax: 11.4 mm
- 5-1/16" Magnet diameter
- Mounting Depth: 4-15/16"
- Cutout Diameter: 9-1/16"
- Impedance: 4 Ohm
- Mineral-filled, polypropylene cone woofer for excellent durability
- Large roll surround for generous amounts of excursion
- Elevated frame cooling brings air directly to the voice coil
- Designed for compact sealed enclosures or medium-sized ported enclosures
- Large excursion for louder bass and less distortion
- DMA Optimized motor system reduces distortion and tight, clean bass
- Lead wire woven into spider for added strength
- Metallic silver frame finish
- slot-ported enclosure with two 10" W0v3 subwoofers
- 5/8" medium density fiberboard construction covered with dark gray carpet
- 2-ohm impedance
- power handling: 150-600 watts RMS (1200 watts peak power)
- frequency response: 25-250 Hz
- sensitivity: 84 dB
- 29-5/8"W x 13-7/8"H x 17-1/2"D1 x 14"D2
- Subwoofers are usually sold as a single unit unless otherwise noted.
- UPC: 699440932653
- Weight: 55
- Sku: 93265
