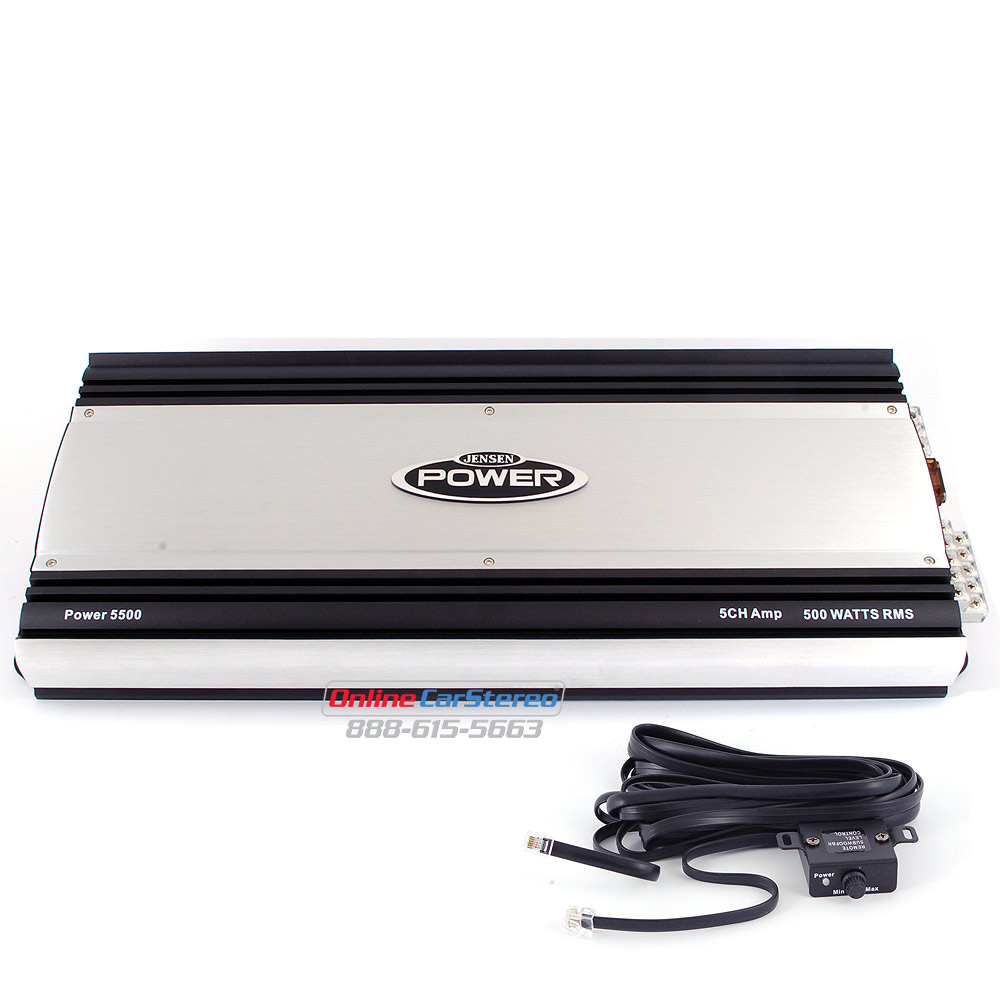

Jensen  Power 5500

660W RMS 5-Channel Class-B Power Series Car Audio Amplifier

Item #28848

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:


Other products you might be interested in:


Huge Saving on Other items:



SPECIFICATIONS


  • Maximum Power : 660 Watts
  • Number of Channels : 5
  • Built In Crossovers : Yes
  • Channel Separation : Yes
  • RMS Power Range : 570 Watts
  • Amplifier Class : A/B
  • Fuse Rating : 70x1 A

FEATURES


Power Handling:

  • 60W RMS x 4 @ 4 Ohms + 160W x 1 Ch.
  • 75W RMS x 4 @  2 Ohms + 250W x 1 Ch.
  • 160W x 2 [Bridged] @ 4 Ohms + 160 x 1 Ch.

General Features:

  • MOSFET power supply
  • High-Current bi-polar output transistors
  • Remote bass input level control included
  • LED power (green) and protect (red) indicators
  • Bass Boost EQ (0-12 dB @ 45 Hz)
  • 5/4/3/2 channel operation
  • 3-Way System Protection circuitry (thermal, overload, and short circuit protection)
  • Heavy duty aluminum alloy heatsink for extreme heat dissipation
  • 3 pair of RCA outputs (Front/Rear/Sub)
  • Nickel-plated RCA level inputs
  • Nickel-plated screw terminals
  • Variable high-pass filter (16-160 Hz)
  • Variable low-pass filter (30-160 Hz)
  • Subsonic filter (16-160 @ 30 Hz)
  • CEA-2006 compliant amplifier
  • Frequency response: 10-60,000 Hz
  • Input Voltage: 14.4V
  • Signal-to-Noise Ratio: 100 dB
  • THD (Total Harmonic Distortion): 1%
  • Fuse Rating: 70 Amp x 1
  • Dimensions: 8-15/16"D x 21-1/2"W x 2-1/4"H



  • UPC:
  • Weight: 0
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
