JL Audio :: JX500/1 :: $178.00

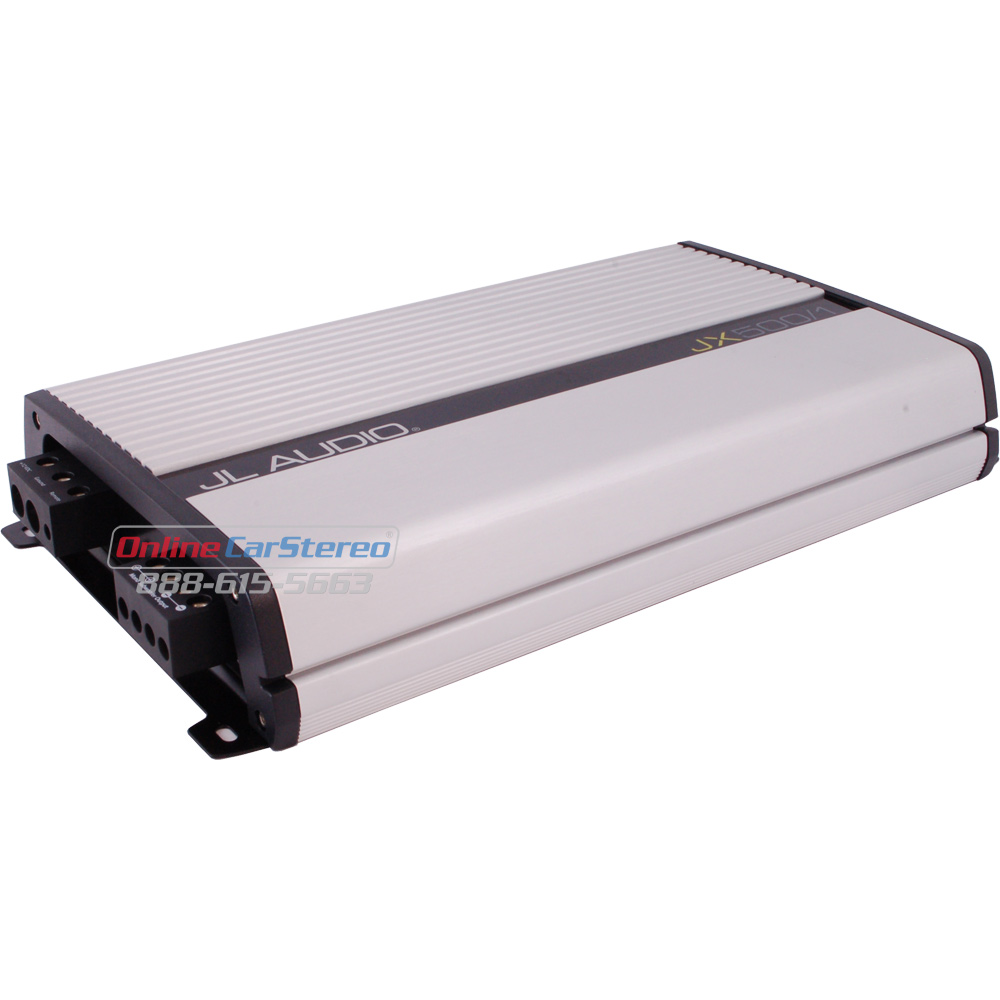

JL Audio JX500/1

Item# 29601

500W Mono Block Class A/B JX Series Car Amplifier


Sorry, this product is no longer available.

RMS Power Rating (@ 14.4V):

  • 340W x 1 @ 4-Ohms
  • 420W x 1 @ 2-Ohms
  • 420W x 1 @ 1-Ohms

RMS Power Rating (@ 12.5V):

  • 270W x 1 @ 4-Ohms
  • 340W x 1 @ 2-Ohms
  • 410W x 1 @ 1-Ohms

General Features

  • Unregulated PWM switching type power supply
  • Remote bass level input (JL Audio RBC-1 sold separately)
  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +12 dB bass boost centered at 45 Hz)
  • Soft start turn-on prevent clicking and popping when system turns on
  • 1 channel operation
  • Speaker-level (high-level) inputs with signal sensing for automatic turn-on
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-Way System Protection circuitry (thermal, low impedance, and speaker short protection)
  • Heavy duty aluminum alloy heatsink for effective heat dissipation
  • Nickel-plated RCA level inputs
  • Nickel-plated screw terminals
  • Variable low-pass filter (50-200 Hz, 12 dB/octave)
  • Damping factor: >160 @ 4 ohms / >80 @ 2 ohm
  • Frequency response: 10-150 Hz (+/– 1 dB)
  • Dimensions: 13-3/4"L x 7-3/4"W x 2-1/8"H
  • UPC: 699440993968
  • Weight: 10
  • Sku: JX5001
  • Authorized Internet Dealer
*Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 30 days from the original date of purchase with proper return authorization. After the 30 day time period, products must be returned to their original manufacturer for the remainder of the manufacturer's warranty period.
