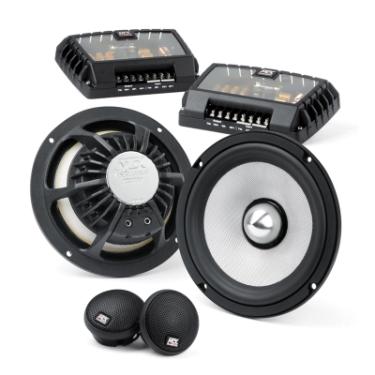

Thunder Axe High End Components—a new line of high-end component speakers that will have any listener begging for more.
Each Axe High End Component loudspeaker is designed to reproduce frequencies in a given range. Used in tandem with each other, these component speakers will reproduce the entire audio spectrum with exceptional dynamics and detail. The drivers are kept operating within their designed audio band by a series of the highest quality crossover networks. These components are made of better materials, handle more power and have a larger X-max than many of its competitors.
Featuring glass fiber woofer cones with aluminum deposition and a 25mm Teteron® tweeter, Thunder Axe High End Components were designed for superior imaging, detail, sound quality, and dynamic range. The specifically designed crossover distributes frequencies properly to maximize the musical performance of each driver.
Engineered with superior components, the 2-way, bi-ampable, 18dB/octave crossover network is designed for accurate imaging and sound quality. They have been optimized for off-axis or on-axis listening and include a 5 level tunable tweeter network for optimum imaging regardless of tweeter placement or positioning. In addition, the woofer has a 0°, 30°, and 60° off-axis compensation.
With the addition of the Thunder Axe High-End Component line, MTX offers high performance, installation-friendly solutions. Whether you are upgrading from factory speakers or you are an audiophile looking to build the ultimate mobile sound stage, Thunder Axe High-End Components deliver the ultimate in sound quality.
- Diameter : 5.25 (approx) Inch
- Sensitivity : 90 dB
- Frequency Response : 44-20000 Hz
- RMS Power Range : 90 Watts
- Peak Power Handling : 180 Watts
General Features
- Extended low frequency reproduction for bigger, fuller sound.
- 25mm soft dome tweeter can be mounted anywhere to improve imaging and exceed expectations, with the ability to clearly recreate the crispest highs.
- The specially designed crossover uses mylar capacitors for superior signal integrity.
- Concave cone design for improved off-axis response.
- 2-Way crossover and adjustable tweeter level.
- Tweeter can be mounted in flush or surface mount adaptor and swivels within adaptor for superior imaging.
General Specifications
- Cone Material: Polypropylene
- Tweeter: 25mm Soft Dome
- Impedance: 4 Ohms
- Frequency Response: 44Hz - 20kHz
- RMS Power (Watts): 90
- Peak Music Power (Watts): 180
- Sensitivity: 90dB (2.83V/1m)
- Voice Coil: 1.0" (2.54 cm)
- Woofer Mounting Depth: 2.19" (5.56 cm)
- Woofer Cut Out Diameter: 5.0" (12.7 cm)
- Tweeter Mounting Depth: 1.0" (2.54 cm)
- Tweeter Cut-out Diameter: 1.88" (4.76 cm)
- Tweeter Mounting Options: Flush or Surface (Angle in both)
- Crossover: 2-Way, 18dB/6dB
- Adjustable Tweeter Level: 0, -3
- UPC: 715442470273
- Weight: 10.4
- Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 year from the original date of purchase with proper return authorization.
