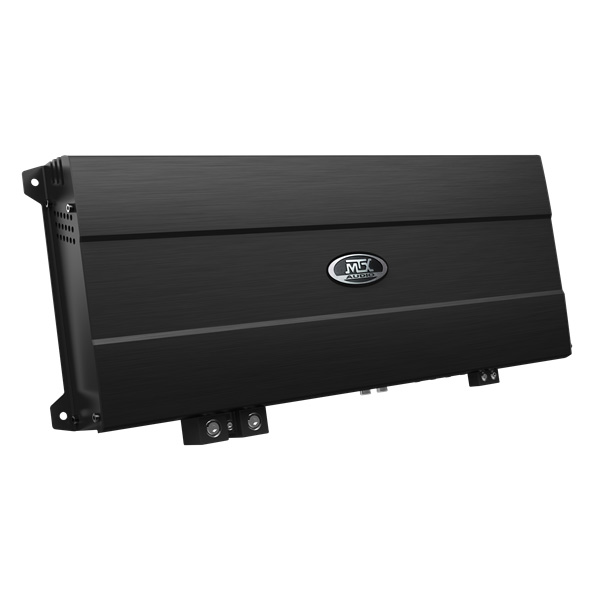

The TH Series amplifiers are the lastest version of Thunder that are designed to exceed your expectation for how an amplifier should perform. Featuring anodized aluminum top covers and subtle MTX badging, these amplifiers incorporate high end materials with convection cooling functionality. Each TH Series amplifier is designed to perform to the highest standard and has undergone rigorous quality testing to ensure this standard is met. Three class D mono blocks and two class A/B multi channel amplifiers offer every car audio enthusiast a solution that fits their needs.
- Number of Channels : 1
- Frequency Response : 20-200 Hz
- Built In Crossovers : Yes
- RMS Power Range : 400-1200 Watts
- Amplifier Class : D
Power Output
- 400W x 1 @ 4-Ohms
- 800W x 1 @ 2-Ohms
- 1200W x 1 @ 2-Ohms
General Features
- Anodized Aluminum Heat Sink
- External Bass Control Included with Mono Blocks
- "Clip" Light LED on Mono Blocks
General Specifications
- Patented Adaptive Class D Technology
- Recommended StreetWires Amp Kit: ZN5K-00 OR ZN3K-00
- 4Ω RMS Power Output: 400W x 1 Channel
- Signal-to-noise Ratio (1 Watt): 75dB
- 2Ω RMS Power Output: 800W x 1 Channel
- THD+N (Distortion) (1 Watt): < 1%
- 1Ω RMS Power Output: 1200W x 1 Channel
- Topology: Class D
- Frequency Response (-3dB): 20Hz to 200Hz
- Crossover: Variable Low @40Hz to 200Hz, 24dB/Oct
- Subsonic: 20Hz to 50Hz,12dB/Oct, Variable
- Bass Boost: +12dB @ 40Hz
- Maximum Input Signal: 5V
- Maximum Sensitivity: 250mV
- Height: 7 1/16" (17.94 cm)
- Width: 17 1/4" (43.82 cm)
- Depth: 2 1/8" (5.4 cm)
- UPC: 715442241590
- Weight: 10.5
- Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 year from the original date of purchase with proper return authorization.
