What's Included:
Product Highlights:
- 75W x 4 @ 4-Ohms
- Small Footprint
- Maximum Sensitivity: 200mV
- Crossover: Variable LPF 50Hz to 750Hz (Rear), Variable HPF 10Hz-200Hz (Front), Variable HPF 50Hz-750Hz (Rear), 12dB/Oct
- Surface Mount PCB Design
- 100W x 4 @ 2-Ohms
- Length: 10" (25.4 cm)
- Recommended StreetWires Amp Kit: ZN3K-04 or ZN3KI-04
- Variable Crossovers
- Width: 5 1/2" (13.97 cm)
- Extruded Aluminum Heat Sink
- Frequency Response: 15Hz to 25kHz
- Topology: Class A/B
- Maximum Input Signal: 5V
- Height: 2 1/8" (5.4 cm)
- Number of Channels : 4
- Frequency Response : 15-25000 Hz
- Amplifier Class : A/B

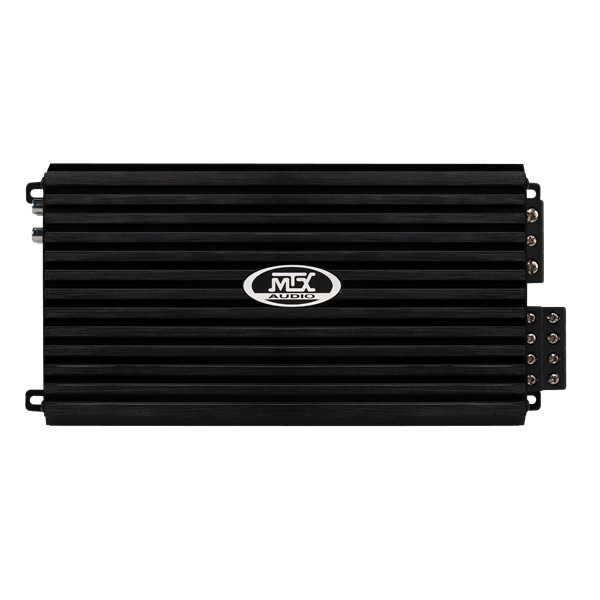

The TD series amplifiers are designed to bring big power in a small footprint. Available in two size mono blocks and a single 4 channel, TD series amplifiers offer excellent system flexibility at a great price. Featuring surface mount design that resists vibration and an extruded aluminum heat sink that dissipates heat effectively, these amps have everything you need to make your system bang.
| Specifications |
| Maximum Input Signal: |
5V |
| Length: |
10" (25.4 cm) |
| Topology: |
Class A/B |
| Height: |
2 1/8" (5.4 cm) |
| RMS: |
75W x 4 @ 4-Ohms, 100W x 4 @ 2-Ohms |
| Recommended StreetWires Amp Kit: |
ZN3K-04 or ZN3KI-04 |
| Frequency Response: |
15Hz to 25kHz |
| Crossover: |
Variable LPF 50Hz to 750Hz (Rear), Variable HPF 10Hz-200Hz (Front), Variable HPF 50Hz-750Hz (Rear), 12dB/Oct |
| Maximum Sensitivity: |
200mV |
| Width: |
5 1/2" (13.97 cm) |
- UPC: 715442241644
- Weight: 5
- Authorized Internet Dealer
Warranty: 90 Days Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 90 Days from the original date of purchase with proper return authorization.
