Lanzar  MNX1800D

1800W @ 1ohm SMD Mini Digital Mono Block Amplifier

Item #31228

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:



Huge Saving on Other items:


Related Video:


coming_soon

What's Included:


  • Line In & Line Out
  • Gold-Plated RCA Connectors & Screw Terminals
  • Owner's Manual

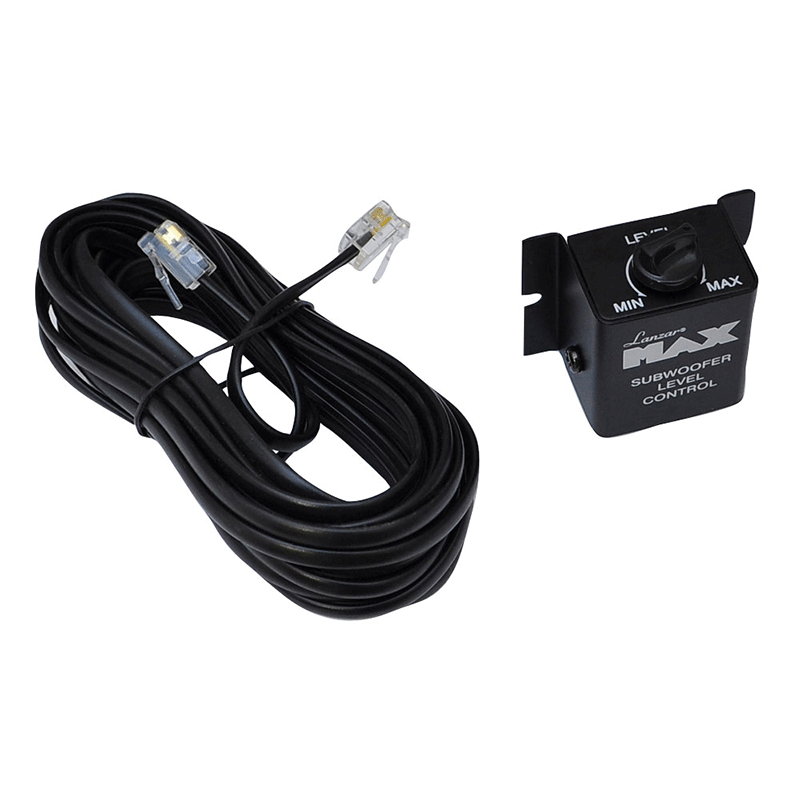

  • Remote Subwoofer Level Control
  • Thermal, Over load & Speaker Short Protection
  • Power & Protection LED Indicators
  • Product Information Inside Box
  • Thermal, Over load & Speaker Short Protection
  • High Technology SMD Circuit
  • Power & Protection LED Indicators
  • Double Side Epoxy PCB Circuit Board
  • Soft Turn-on/Turn-Off

Product Highlights:


  • S/N Ratio (4 Ohm): 80dB
  • Dimensions: 8.11'' (W) x 2.12'' (H) x 6.23'' (L)
  • Input Sensitivity: 200mV-6V
  • Variable Subsonic: 15Hz-45Hz
  • 1800 Watts Peak Power @ 1 Ohm
  • Variable LPF: 20Hz-350Hz
  • 1 Ohm Stable
  • 700 Watts Peak Power @ 4 Ohm
  • 1200 Watts Peak Power @ 2 Ohm
  • THD 4 Ohm Power 0.5%
  • Frequency Response: 10Hz-350Hz
  • Phase Shift Control: 0-180°
  • Bass Boost Variable: 0-18dB (45Hz FIX)
  • Fuse Rating: 30Ax2
  • Sold as : Unit

SPECIFICATIONS


  • Maximum Power : 700-1800 Watts
  • Number of Channels : 1
  • Frequency Response : 15-45000 Hz
  • Amplifier Class : D
  • Fuse Rating : 2 x 30 A

FEATURES


The MNX1800D is a single-channel monoblock amplifier powered digitally for maximum efficiency. This amplifier can push up to 1800 watts at 1 ohm. It's equipped with variable low pass and subsonic filters so you can get the most out of your vehicle's speakers without blowing them out. The included wired remote allows you to adjust the bass boost level from the comfort of your vehicle. Gold-plated RCA connectors and screw down terminals ensure an extremely high-quality connection between your amp and other components. This amplifier is equipped with power and protection LED indicators, so you'll always know its working properly. Soft turn-on/off prevents damage to your speakers while powering the unit on and off. And thermal, overload and speaker short protection keep your equipment safe and secure.



Specifications
Level Control Remote Subwoofer Level Control
@ 4 Ohm 700 Watts Peak Power
@ 2 Ohm 1200 Watts Peak Power
Variable Subsonic: 15Hz-45Hz
RCA Connectors Gold-Plated and Screw Terminals
Circuit Board Double Side Epoxy PCB Circuit Board
LED Indicators Power & Protection LED Indicators
Phase Shift Control: 0-180°
Variable LPF: 20Hz-350Hz
1 Ohm Stable
Circuit High Technology SMD Circuit
Dimensions: 8.11'' (W) x 2.12'' (H) x 6.23'' (L)
LED Indicators Power & Protection LED Indicators
@ 1 Ohm 1800 Watts Peak Power
Input Sensitivity: 200mV-6V
Protection Thermal, Over load & Speaker Short Protection
THD 4 Ohm Power 0.5%
S/N Ratio (4 Ohm): 80dB
Frequency Response: 10Hz-350Hz
Bass Boost Variable: 0-18dB (45Hz FIX)
Fuse Rating: 30Ax2
Sold as : Unit
  • UPC: 068889014501
  • Weight: 5.9
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
