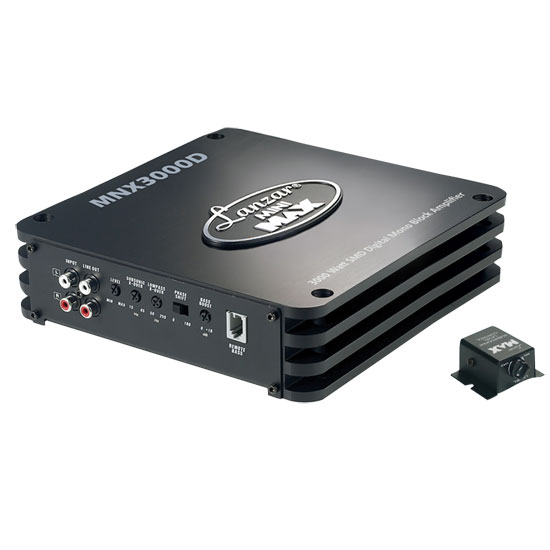

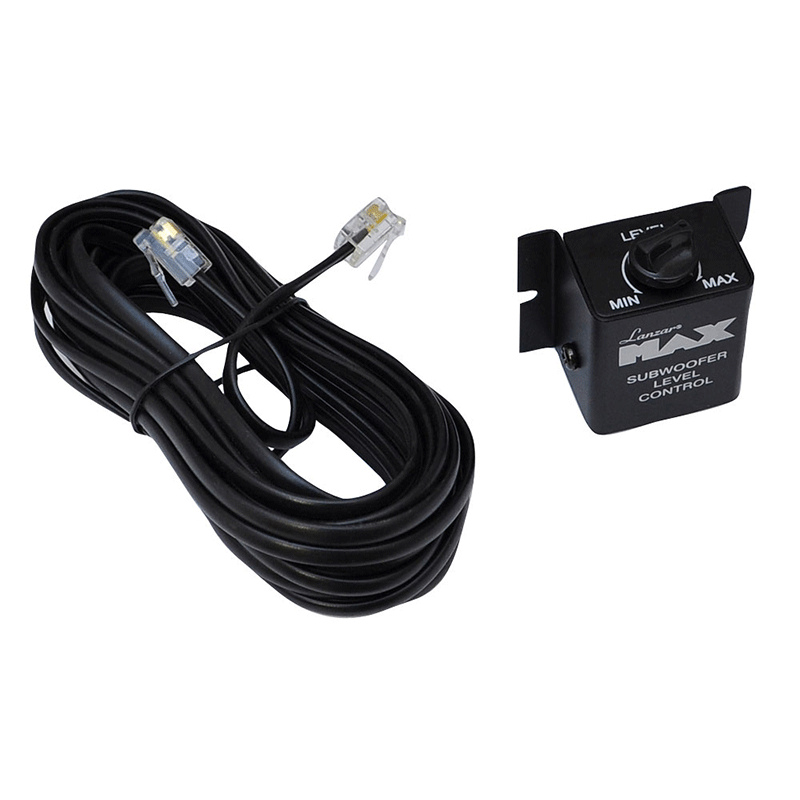

The MNX3000D is a single-channel monoblock amplifier powered digitally for maximum efficiency. This amplifier can push up to 3000 watts at 1 ohm. It's equipped with variable low pass and subsonic filters so you can get the most out of your vehicle's speakers without blowing them out. The included wired remote allows you to adjust the bass boost level from the comfort of your vehicle. Gold-plated RCA connectors and screw down terminals ensure an extremely high-quality connection between your amp and other components. This amplifier is equipped with power and protection LED indicators, so you'll always know its working properly. Soft turn-on/off prevents damage to your speakers while powering the unit on and off. And thermal, overload and speaker short protection keep your equipment safe and secure.
| Specifications | |
|---|---|
| Frequency Response: | 10Hz-350Hz |
| Bass Boost Variable: | 0-18dB (45Hz FIX) |
| LED Indicators | Power & Protection LED Indicators |
| @ 4 Ohm | 1250 Watts Peak Power |
| @ 2 Ohm | 1950 Watts Peak Power |
| Circuit | High Technology SMD Circuit |
| Input Sensitivity: | 200mV-6V |
| Remote Subwoofer | Level Control |
| @ 1 Ohm | 3000 Watts Peak Power |
| Fuse Rating: | 30Ax3 |
| S/N Ratio (4 Ohm): | 80dB |
| RCA Connectors | Gold-Plated & Screw Terminals |
| Protection | Thermal, Over load & Speaker Short Protection |
| Circuit Board | Double Side Epoxy PCB Circuit Board |
| 1 Ohm | Stable |
| Variable LPF: | 20Hz-350Hz |
| Variable Subsonic: | 15Hz-45Hz |
| Phase Shift Control: | 0-180° |
| Dimensions: | 8.11'' (W) x 2.12'' (H) x 7.87'' (L) |
