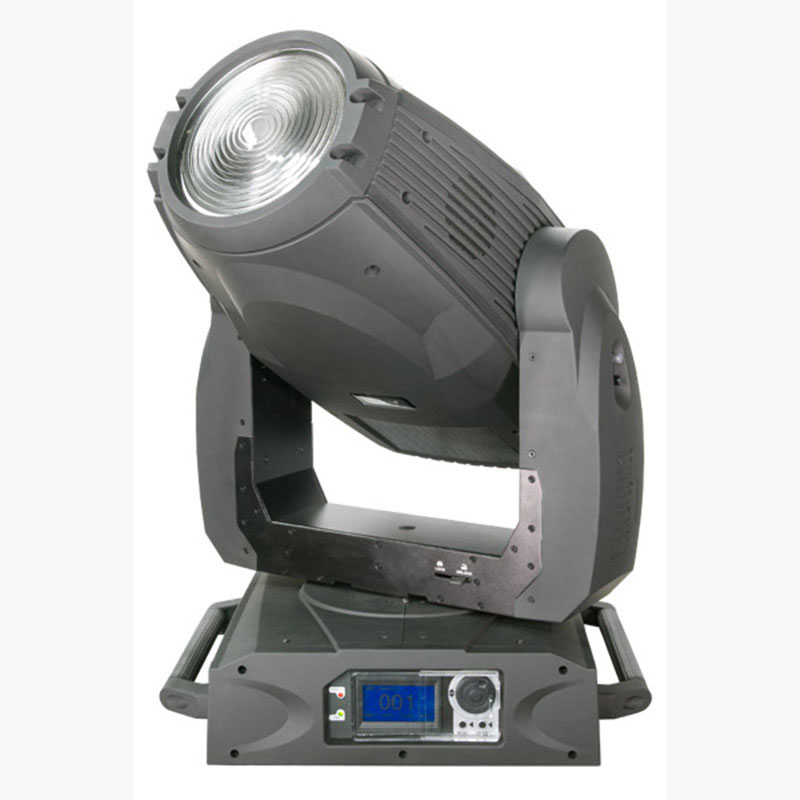

Chauvet LEGEND1200EWash Item# 31593
 High Performance Moving Yoke
Chauvet :: LEGEND1200EWash :: $5,799.99
MSRP: $8,199.99
You Save: $2,400.00 (29%)
Our Price: $5,799.99
 Protect Your Investment (- hide options)

CPS Extended Service Plan (more info)

Condition: Brand New Avg Rating: Not Rated Yet
Free Shipping On This Item
magnifying glass

Please roll over the image to see detail.
Hint: click on the image to see larger image.

Features

General:

  • DMX channels: 16 or 21
  • Pan: 540°
  • Tilt: 270°
  • Colors Wheel 1: Seven colors + white (red, blue, pink, green, magenta, orange, and UV) Split/linear colors - Rainbow color spin at variable speed
  • Colors Wheel 2:  Seven colors + white (5,600 K, magenta, light blue, light green, light yellow, pink, and dark blue) Split/linear colors - Rainbow spin at variable speed
  • Variable CTC filter (3,200 K~6,000 K)
  • CMY color mixing system with vector speed adjustments
  • Variable shutter
  • Variable 16-bit dimming (0~100%)
  • Linear zoom (5.6°~20.75°)
  • Individual reset of pan/tilt, color, gobo, shutter, prism, focus
  • Remote fixture reset, lamp on/off and vector speed adjustments
  • Built-in movement macros with range adjustments
  • Built-in color macros
  • 3-pin and 5-pin DMX connections
  • User-configurable lamp ignition delay
  • User-configurable maintenance reminder
  • Electronic ballast with power factor correction
  • Electronic power supply
  • Automatic pan & tilt correction
  • Pan & tilt locks
  • Lamp & fixture use timers
  • Power saver mode

Specifications:

  • DMX connectors: 3-pin & 5-pin
  • Pan & tilt: 540° / 270°
  • Gobo size: 37.3 mm outside, 30 mm image, 5 mm max thickness
  • Source: Philips MSR Gold 1,200 W FastFit™, 750 hours
  • Beam angle: 5.6°~20.75°
  • Lux: 104,200 (5.6°) - 6,000 (20.75°) @ 5 m
  • Power Consumption 120 V, 60 Hz: N/A
  • Power Consumption 120 V, 60 Hz: 1,584 W, 7.11 A (operating), 3.8 A (inrush), PF: 0.92
  • Dimensions: 20.5 x 21.2 x 31.6 in ( 521 x 539 x 803 mm)
  • Weight: 82.05 lbs (37.22 kg)
  • Certification: CE
  • Environment: IP20, indoor/dry
  • Control: W-DMX transmitter/receiver
  • Authorized Internet Dealer
*Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 30 days from the original date of purchase with proper return authorization. After the 30 day time period, products must be returned to their original manufacturer for the remainder of the manufacturer's warranty period.
