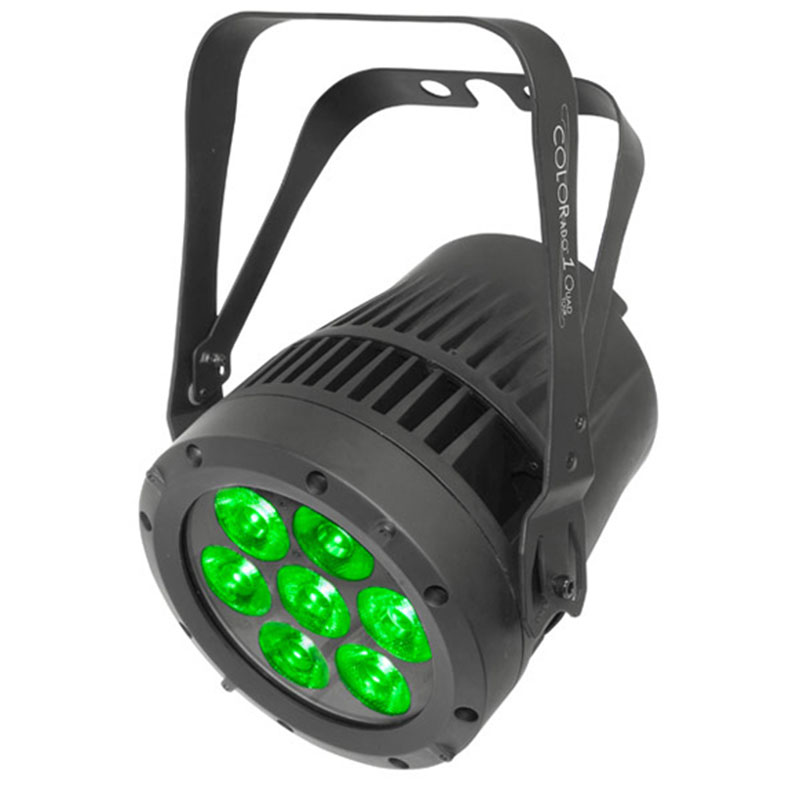

Chauvet  Colorado 1QuadTour

 RGBW Color LED Wash Light

Item #31601

  Free 1-Year Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:


Other products you might be interested in:


Huge Saving on Other items:



SPECIFICATIONS



FEATURES




General

  • 3, 4, 5, 6 or 10 Quad Color LED wash light
  • Operating modes
  •    3-channel: Red, Green, Blue (ARC 1)
  •    3-channel: Hue, Saturation, Value (HSV)
  •    4-channel: Dimmer, Red, Green, Blue (ARC 1+D)
  •    4-channel: Red, Green, Blue, White (ARC 2)
  •    5-channel: Dimmer, Red, Green, Blue, White (ARC 2+D)
  •    6-channel: Dimmer, Red, Green, Blue, White, Strobe (ARC 2+S)
  •    10-channel: Dimmer, Red, Green, Blue, White, Color Macro, Strobe, Auto Programs, Auto Speed Adjust, Dimmer Speed (TOUR)
  • RGBW color mixing with or without DMX control
  • Color temperature presets 3,200  ~ 10,000 K
  • Built-in automated programs via master/slave, DMX
  • Recall custom programs via master/slave or DMX
  • Five distinct dimming curves
  • RGBW Quad Color LEDs
  • Electronic dimmer
  • Color macros with speed adjustment included
  • Electronic power supply
  • Neutrik powerCon connectors
  • LED display with password protection
  • Double-bracket yoke doubles as floor stand
  • Color Calibration

Specifications:

  • DMX connectors: 3-pin and 5-pin
  • Source: 7 (10 W) quad-color LEDs, 50,000 hours
  • Light source: red   (692mA x 2.58vdc = 1.79W)
  •    Green (687mA x 3.90vdc = 2.68W)
  •    Blue  (685mA x 3.69vdc = 2.53W)
  •    White (681mA x 3.63vdc = 2.47W)
  • Strobe Speed: 0 - 20hz
  • Beam Angle: 11.5°
  • Field Angle: 25°
  • Lux: 1,650 @ 5 m
  • AC Voltage Range: 100~240 V, 50/60 Hz (auto-ranging)
  • Power Consumption 120 V, 60 Hz: 66 W, 0.6 A (operating)
  • Power Consumption 230 V, 50 Hz: 65 W, 0.3 A (operating)
  • Power linking: 10 units @ 120 V (max.) / 18 units @ 230 V (max.)
  • Dimensions: 8.7 x 9.3 x 13.1 in (222 x 235 x 335mm)
  • Weight: 11.5 lbs (5.2 kg)
  • Power Connection: NEUTRIK® powerCON® power input and output connector
  • Certification: CE, MET
  • Environment: IP20, dry location
  • Cabling: NEUTRIK® powerCON® extension (18 in, 5/10/25 ft)



  • UPC:
