Chauvet  ColoradoBat72Tour

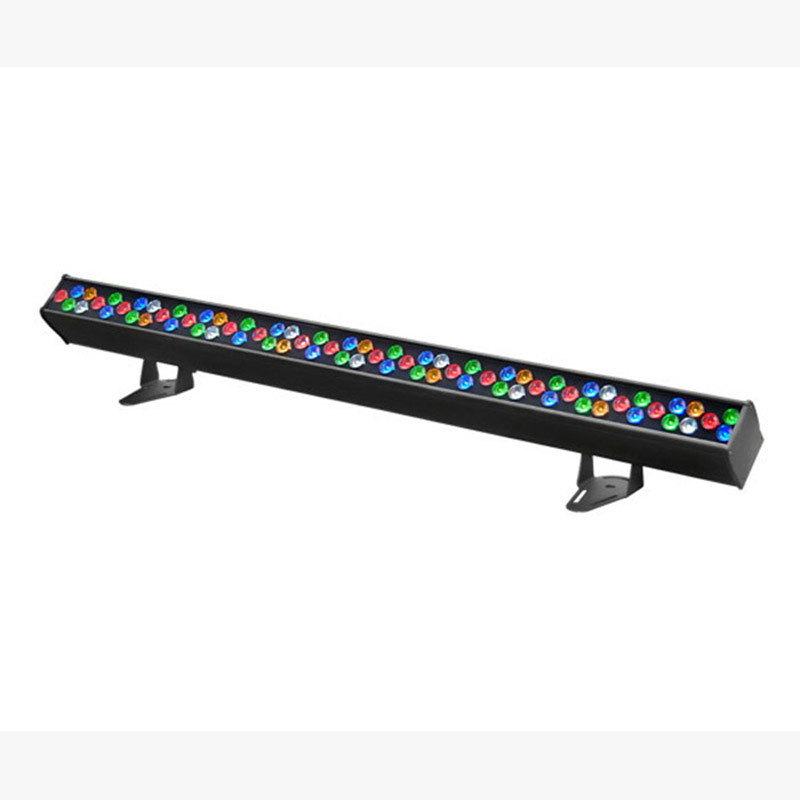

COLORADO Batten 72 Tour - LED Powered Wash Light

Item #31606

  Free 1-Year Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:


Other products you might be interested in:


Huge Saving on Other items:



SPECIFICATIONS



FEATURES


General:

  • DMX channels: 3, 4, 5, 6, 7, 9, 13, or 15
  • Operating Modes
  •    3-channel: HSV control
  •    3-channel: RGB control
  •    4-channel: RGB, dimmer
  •    5-channel: RGBWA
  •    6-channel: RGBWA, dimmer
  •    7-channel: RGBWA, dimmer, strobe
  •    9-channel: RGB control per block
  •    13-channel: RGBWA, ID addressing, dimmer, dimmer speed, strobe, macro, auto/custom, and module select
  •    15-channel: RGBWA control per block
  • Five distinct dimming curves
  • Additional power output: max 6 units @ 120 V
  • LED display with lock-out feature
  • NEUTRIK® powerCON® power input and output connector
  • 3-pin and 5-pin DMX input and output connectors
  • Adjustable feet double as hanging bracket
  • Color calibration

Specifications:

  • DMX connectors: 3-pin & 5-pin
  • Source: 72 (1 W) LEDs, 50,000 hours
  • Configuration: 18 red (350 mA), 18 green (350 mA), 18 blue (350 mA), 9 white (350 mA), 9 amber (350 mA)
  • Installed Optic(s): 30°
  • Beam angle: 30°
  • Field angle: 39.6°
  • Lux: 669 @ 5 m
  • AC Voltage Range: 100~240 V, 50/60 Hz (auto-ranging)
  • Power Consumption 120 V, 60 Hz: 87 W, 1.43 A (operating)
  • Power Consumption 230 V, 50 Hz: 87 W, 0.78 A (operating)
  • Power linking: 6 units @ 120 V / 11 units @ 230 V
  • Dimensions: 2.9 x 38.9 x 6.1 in (74 x 989 x 156 mm)
  • Weight: 9.8 lbs (4.4 kg)
  • Power Connection: NEUTRIK® powerCON® power input and output connector
  • Control Connection: 3-pin and 5-pin DMX input and output connectors
  • Certification: CE, ETLc
  • Environment: IP20, dry location
  • Optics: 15°
  • Cabling: NEUTRIK® powerCON® extension (18 in, 5/10/25 ft)



  • UPC:
  • Weight: 0
