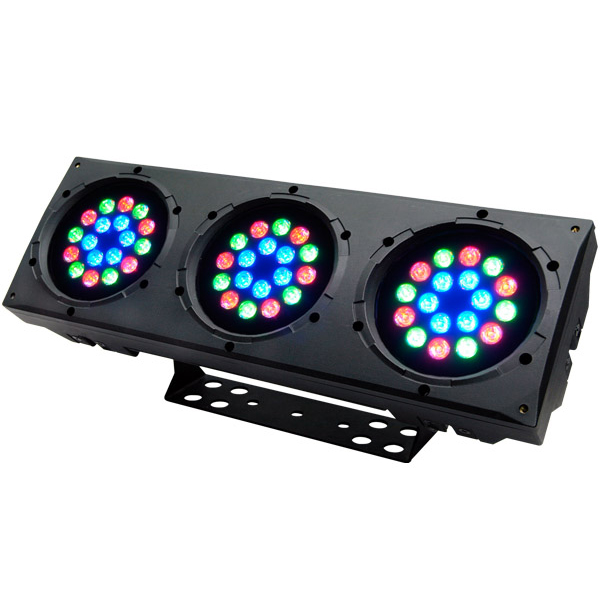

• 3, 4, 9, or 12-channel indoor/outdoor RGB LED bank system
• Operating modes:
  •     3-channel: RGB control
  •     4-channel: RGB, dimmer
  •     9-channel: RGB, ID addressing, dimmer, macro, strobe, auto/custom, DMX modes
  •     9-channel: RGB control for each separate section (pod)
  •     12-channel: RGB, CMY, ID addressing, dimmer, macro, strobe, auto/custom, DMX modes
• Individual pod control
• Pre-programmed color macros for each section
• RGB static color mixing with or without DMX controller
• Built-in automated programs
• Customizable programs
• Recall auto/custom programs via DMX or COLOR-CON
• Electronic power supply
• Protection: IP66
• RGB LEDs
• 3-pin input and output connectors
• Interlock multiple units to create blinder, wall, or strip light effects
• Additional power output: 15 units @ 120 V (max.)
• LCD display with password protection

Specifications:

• DMX connectors: 3-pin
• Source: 54 (1 W) LEDs, 50,000 hours
• Configuration: 18 red (350 mA), 18 green (350 mA), 18 blue (350 mA)
• Lux: 304 @ 5 m
• AC Voltage Range: 100~240 V, 50/60 Hz (auto-ranging)
• Power Consumption 120 V, 60 Hz: 88 W, 0.6 A (operating)
• Power Consumption 230 V, 50 Hz: 87.9 W, 0.39 A (operating)
• Power linking: 13 units @ 120 V / 25 units @ 230 V
• Dimensions: 22.5 x 7.5 x 8.9 in (570 x 190 x 225 mm)
• Weight: 18 lbs (8.2 kg)
• Power Connection: Edison to proprietary IP66 input power cord (65 in / 1,651 mm)
• Control Connection: 3-pin DMX to proprietary IP66 input cable (6.5 in / 165 mm)
• Certification: CE, ETLc
• Environment: IP66, outdoor/wet, with pressure equalizing M12 GORE® valve
