Chauvet :: LEDsplash 86B :: $67.94

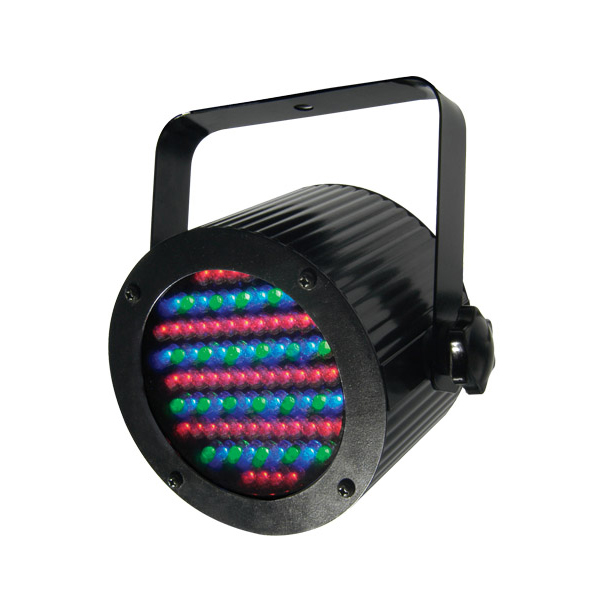

Chauvet LEDsplash 86B

Item# 31874

 Compact and Lightweight RGB LED Wash Fixture with 3/7 Channels of DMX Control

Sorry, this product is no longer available.

  • 3 or 7-channel DMX-512 LED wash
  • Operating modes:
    •  3-channel: RGB control
    •  7-channel: RGB, macros, run/strobe speed, automatic/sound, dimmer
  • Static colors and RGB color mixing with or without DMX controller
  • Built-in automated programs via master/slave or DMX with variable speed
  • Built-in sound activated programs via master/slave or DMX
  • Pulse effect with adjustable speed
  • Additional power output: max 37 units @ 120V (see manual for details)
  • Beam angle: 19°
  • Field angle: 36°
  • Lux: 254 @ 2m
  • Light Source: 86 (44 red, 21 green, 21 blue) LEDs
  • Power and current: 120V, 60Hz: 9W, 0.2A operating, 0.2A inrush
  • Power and current: 230V, 50Hz: 5W, 0.1A operating, 0.1A inrush
  • AC power: Autoswitching 100V-240V 50/60Hz
  • Weight: 1.8lbs (0.8kg)
  • Size: 4.9in x 6in x 6.2in / 124mm x 153mm x 157mm

  • Authorized Internet Dealer
*Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to for replacement within 30 days from the original date of purchase with proper return authorization. After the 30 day time period, products must be returned to their original manufacturer for the remainder of the manufacturer's warranty period.
