Chauvet :: MMEBAR :: $4,499.99

Chauvet MMEBAR

Item# 32106

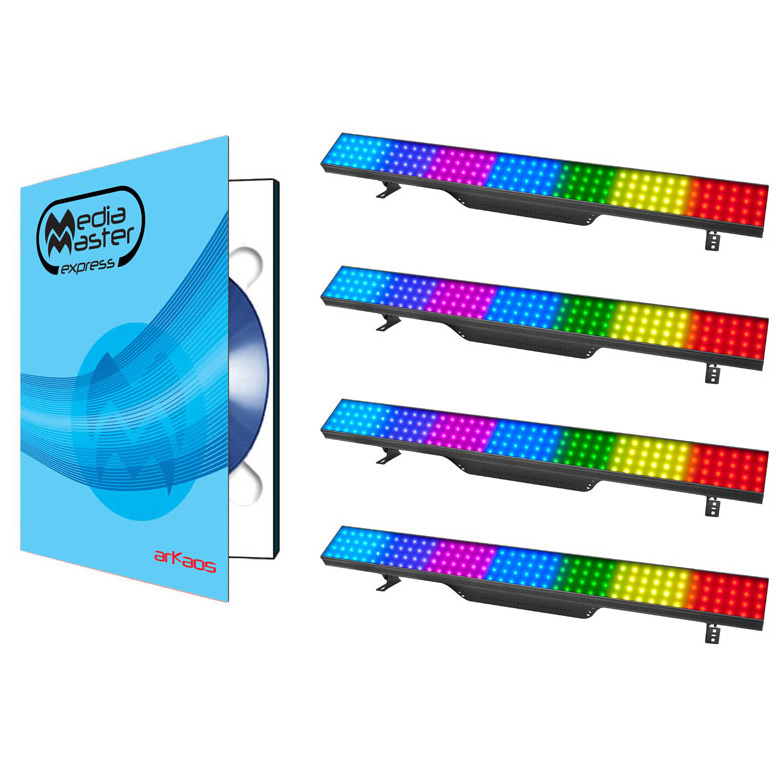

 ArKaos Media Master Express + KN & 4pc EPIX Bar

Sorry, this product is no longer available.

ArKaos Media Master Express + KN

  • Video playback control software with a practical interface
  • Multi-threaded engine delivers incredible performance by taking advantage of multi-core machines
  • Easily control video layers with the standard keyboard/mouse, MIDI, or DMX
  • Organize your shows with up to 4,096 user-configurable layers
  • Play back up to 8 simultaneous layers
  • Control up to 3 parameters per layer
  • Optional fade time on trigger provides smooth playback for live events
  • Kling-Net support allows for fast & easy plug-and-play configuration of EPIX™ Products
  • Support for Syphon on Mac, allowing to natively output to any other application that supports Syphon as input
  • Included LED pixel mapper module to easily drive video content to any pixel array via Art-net
  • Multi-monitor support on Windows™ Vista and 7 provides support for independent playback and integration of multiple projectors
  • 8 independent video layers allows picture-in-picture, picture-over-picture or a wide range of layering of multiple videos to create your own custom show
  • Full support for SD and HD in all popular video formats, including AVI, MPEG, MPG, MOV, WMV, MP4, JPEG, GIF, BMP, PNG, SWF, and many more
  • Intuitive user interface allows fast learning curve that anyone can learn in a few minutes!
  • 60+ effects
  • Audio Visualization Generators that react to any audio input, including laptop microphones, microphone/line input, or onboard audio playback
  • Content DVD included with every purchase which includes an additional 25 text layers, 26 Audio Visualizations, and 169 source visuals (4.1 GB in SD and HD)
  • Native support for video inputs (PCI card, FireWire DV / HDV, USB, etc.)
  • Frame blending for smooth playback even at very slow speed (adjustable)
  • Software Genlocking to the output monitors for perfect playback up to 60fps without dropping frame
  • Direct mouse and DMX control over master brightness & contrast
  • Keystone correction from within the Media Master software
  • Internal MPEG2-MPEG4 codec for enhanced reliability
  • Native support of H.264 through FFMPEG 0.5
  • Support of all common media formats (AVI, MPEG, QuickTime MOV, Flash, WMV, picture files, etc)
  • Audio playback supported along with the video layers, along with a master volume control
  • PC
    • OS: Windows™ XP, Vista or 7
    • Processor: Pentium™ IV 2Ghz (and up)
    • RAM: 512MB, 1GB recommended
    • Media Component: QuickTime™ 6.5.x (and up), Adobe FlashPlayer™ 9.0 (and up), DirectXTM 9.0c (and up)
  • MAC
    • OS: Mac OS X 10.5 (and up)
    • Processor: Any Intel Mac, G4/1Ghz (and up)
    • RAM: 512MB, 1GB recommended
    • Media Component: QuickTime™ 6.5.x (and up), Adobe FlashPlayer™ 9.0 (and up)


  • Controlled via Arkaos Kling-Net which provides fast and easy assignment and control
  • A video/pixel mapping system that doesn't require years of experience or technical know-how to design, set-up or operate
  • Does NOT require piles of processing, driver and signal distribution equipment to create large scale displays
  • Independent system of strip style fixtures that can be used for video and pixel mapping applications with countless layout options
  • Tri-color SMD LEDs covered by a smooth diffuser plate give excellent color rendering and wide viewing angles
  • Utilizes powerCON in and out connections for power and RJ45 for Kling-Net protocol communication
  • Video Source: See EPIX Drive 640
  • Source: Tri-color 5050 SMD LEDs
  • Pixels/Bar: 160 Pixels
  • Pixel Pitch: 25 mm
  • Display Refresh Rate: 400 Hz
  • Video Refresh Rate: 60 fps
  • Viewing Angle: 120°
  • Luminance: 850 NIT
  • Input voltage: Auto-ranging 100-240 VAC 50/60 Hz
  • Power and current: 132 W, 1.1 A @ 120 V 60 Hz
  • Power and current: 125 W, 0.6 A @ 208 V 60 Hz
  • Power and current: 138 W, 0.6 A @ 230 V 50 Hz
  • Power linking: 8 units @ 120 V / 16 units @ 208 V / 16 units @ 230 V
  • Control: Kling-Net protocol via Arkaos MediaMaster Express + KN
  • Size: 4.6 x 39.3 x 5 in (118 x 997 x 126 mm)
  • Weight: 11.5 lbs (5.2 kg)
  • Mounting Design: Mounting Bracket
  • Housing Material: Steel
  • Power Connection: Neutrik powerCON
  • Control Connection: RJ45
  • IP20, dry location
