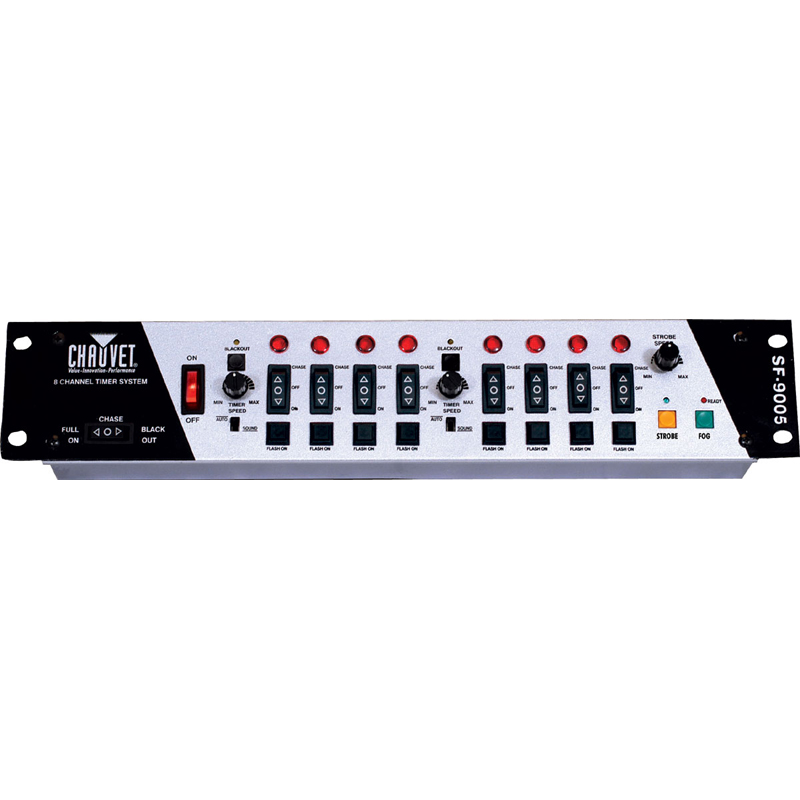

Chauvet SF-9005 Item# 32858
 Timer System Package
Chauvet :: SF-9005 :: $154.99
MSRP: $154.99
Our Price: $154.99
 Protect Your Investment (- hide options)

CPS Extended Service Plan (more info)

Condition: Brand New Avg Rating: Not Rated Yet
Free Shipping On This Item
magnifying glass

Please roll over the image to see detail.
Hint: click on the image to see larger image.



  • Includes:
    • 1 x rack mount controller (2U)
    • 1 x 8-channel relay pack (SR-8)
    • 1 x SF-EXCB linking cable (25ft)
  • Individual control of 2 separate zones with 4 channels each (8 channels total)
  • Each zone contains:
    • 4 channels with LED indicator and flash button
    • Separate blackout button
    • Selector switch for automatic or sound-activated programs
    • Speed control knob for automatic programs (20sec – 15min)
  • Controls external 16-pattern controller (CH-866, sold separately)
  • Connect up to 2 relay packs together (SR-8, sold separately)
  • Fog & strobe control buttons (with strobe speed adjustment)
  • Non-switched output for linking relay packs (on SR-8)
Controller Specifications:
  • Power and current: 120V, 60Hz: 1W, 0.1A operating, 0.1A inrush
  • AC power: Switchable 115V/230V 50/60Hz
  • Weight: 4.6lbs (2.1kg)
  • Size: 19in x 3.5in x 3.7in / 482mm x 88mm x 94mm
Relay Pack Specifications:
  • Input voltage equals output voltage
  • Output (115V): 5A (575W) per channel, 15A (1,725W) max
  • Output (230V): 5A (1,150W) per channel, 15A (3,450W) max
  • AC power: Autoswitching 100V – 240V 50/60Hz
  • Weight: 2.5lbs (1.3kg)
  • Size: 14in x 3.8in x 1.8in / 3562mm x 97mm x 46mm

  • Authorized Internet Dealer
*Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to for replacement within 30 days from the original date of purchase with proper return authorization. After the 30 day time period, products must be returned to their original manufacturer for the remainder of the manufacturer's warranty period.
