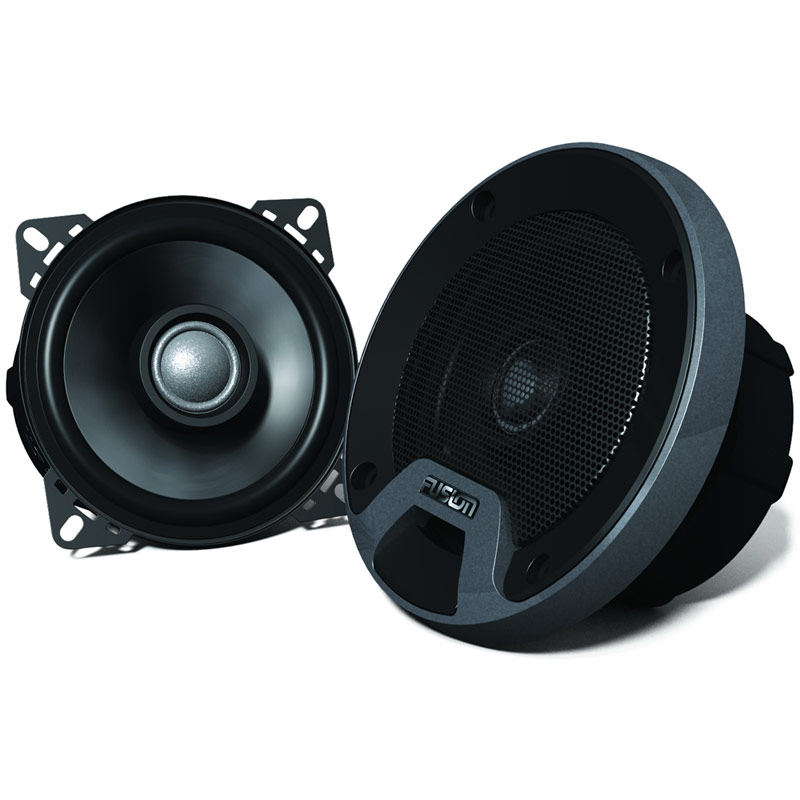

Fusion  CPFR4020

4" 180W 2-Way Full Range Speakers

Item #33531

  Free 1-Year Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:



Huge Saving on Other items:



SPECIFICATIONS


  • Diameter : 4 (approx) Inch
  • Sensitivity : 86 dB
  • Impedance : 4 Ohm
  • Frequency Response : 42-25000 Hz
  • RMS Power Range : 50 Watts
  • Peak Power Handling : 280 Watts
  • Design : 2 Way

FEATURES


Power Handling

  • 50W RMS
  • 280W Max

Product Features

  • Injection molded polypropylene cone - A lighter, thinner yet more rigid cone material.
  • Large magnet assembly - High efficiency output, high power handling.
  • Silk dome tweeters - Very accurate, high frequency response tweeters.
  • FFFT ferro fluid filled tweeters - High heat dissipation - greater reliability.
  • 4"x6" Adapter Plate

Product Specifications

  • Basket - Steel Frame
  • Cone Material - IMPP
  • Frequency Response - 42Hz - 25kHz
  • Peak Power (Watts) - 180
  • Rated Power (Watts) - 35
  • Protection Boot - Yes
  • Sensitivity (dB) - 86
  • Surround Material - PU

Thiele Small Parameters

  • Compliance (Cms) (?M/N) - 673.74
  • Cone Area (Sd) (cm²) - 50
  • D.C. Coil Resistance (Re) (Ohm) - 3.6
  • Diaphragm Mass (Mmd) (Kg) - 0.00416
  • Electrical Q (Qes) - 0.818
  • Force Factor (Bl) (TM) - 3.346
  • Free Air Resonance (Fs) - 92.884
  • Mechanical Q (Qms) - 3.461
  • Total Loudspeaker Q (Qts) - 0.661
  • VAS (CuFt) - 0.084
  • VAS (L) - 2.392
  • Voice Coil Impedance - 4 Ohm

Mounting Dimensions

  • Mounting Depth     2-1/32”
  • Mounting Diameter  4-1/16”
  • UPC: 878816005850
  • Weight: 4.5
