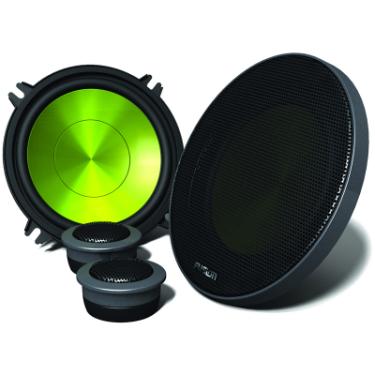

Fusion  CSCM50

5-1/4" 220W Shallow Mount Component Speakers

Item #33538

  Free 1-Year Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:



Huge Saving on Other items:



SPECIFICATIONS


  • Diameter : 5.25 (approx) Inch
  • Sensitivity : 85 dB
  • Frequency Response : 41-26000 Hz
  • RMS Power Range : 35 Watts
  • Peak Power Handling : 220 Watts

FEATURES


Power Handling

  • 35W RMS
  • 220W Max

Product Features

  • Shallow Mount Design - Shallow design with flush-profile tweeter for simple “behind panel” installation. Slim-line front grille cover.
  • FFFT Ferro Fluid Filled Tweeters - High heat dissipation - better reliability.

Product Specifications

  • Basket - Steel Frame
  • Cone Material - Polypropylene
  • Frequency Response 41Hz - 26kHz
  • Peak Power (Watts) - 220
  • Protection Boot - No
  • Rated Power (Watts) - 35
  • Sensitivity (dB) - 85
  • Surround Material - Rubber

Thiele Small Parameters

  • Compliance (Cms) (?M/N) - 307
  • Cone Area (Sd) (cm²) - 87
  • D.C. Coil Resistance (Re) (Ohm) - 3.4
  • Diaphragm Mass (Mmd) (Kg) - 0.00924
  • Electrical Q (Qes) - 1.82
  • Force Factor (Bl) (TM) - 3.241
  • Free Air Resonance (Fs) - 92.18
  • Mechanical Q (Qms) - 3.263
  • Total Loudspeaker Q (Qts) - 1.168
  • VAS (CuFt) - 0.117
  • VAS (L) - 3.301
  • Voice Coil Impedance - 4 Ohm

Mounting Dimensions

  • Mounting Depth 1-11/16”
  • Mounting Diameter  4-21/32”
  • UPC: 878816005966
  • Weight: 3.2
  • Authorized Internet Dealer
Warranty: 0 Months Onlinecarstereo.com warranty.
0 Months warranty from Onlinecarstereo.com implies that repairs must be returned to Onlinecarstereo.com, not the manufacturer. More information can be found in our help section under returns & warranties.
What's not covered : Misuse, abuse, defacement, physical damage of any kind, and improper installation / operation. Video and multimedia equipment with damaged or cracked screens.Subwoofers and speakers are not warrantied if the defect is due to physical damage.
