Fusion CSFR4020 Item# 33540

4" 160W 2-Way Full Range Speakers

Fusion :: CSFR4020 :: $19.00
MSRP: $33.74
Regular Price: $26.99
You Save: $14.74 (43%)
Our Price: $19.00
 Protect Your Investment (- hide options)

CPS Extended Service Plan (more info)
Condition: Brand New Avg Rating: Not Rated Yet
Free Shipping On Items Over $99
magnifying glass

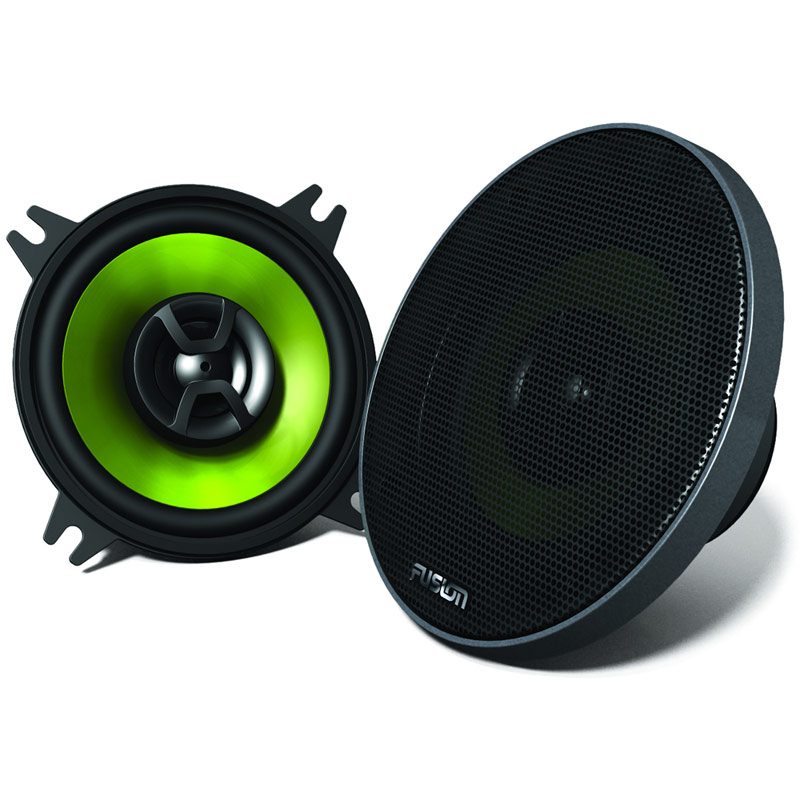

Please roll over the image to see detail.
Hint: click on the image to see larger image.

Features

Power Handling

  • 30W RMS
  • 160W Max

Product Features

  • Shallow Mount Design - Shallow design with flush-profile tweeter for simple “behind panel” installation. Slim-line front grille cover.
  • FFFT Ferro Fluid Filled Tweeters - High heat dissipation - better reliability.
  • 4"x6" Adapter Plate

Product Specifications

  • Basket - Steel Frame
  • Cone Material - Polypropylene
  • Frequency Response  44Hz - 24kHz
  • Peak Power (Watts) - 160
  • Protection Boot - No
  • Rated Power (Watts) - 30
  • Sensitivity (dB) - 83
  • Surround Material - Rubber

Thiele Small Parameters

  • Compliance (Cms) (?M/N) - 558
  • Cone Area (Sd) (cm²) - 52.81
  • D.C. Coil Resistance (Re) (Ohm) - 3.14
  • Diaphragm Mass (Mmd) (Kg) - 0.00443
  • Electrical Q (Qes) - 3.622
  • Force Factor (Bl) (TM) - 1.583
  • Free Air Resonance (Fs) - 98.8
  • Mechanical Q (Qms) - 4.051
  • Total Loudspeaker Q (Qts) - 1.912
  • VAS (CuFt) - 0.078
  • VAS (L) - 2.2012
  • Voice Coil Impedance - 4 Ohm

Mounting Dimensions

  • Mounting Depth   1-3/4"
  • Mounting Diameter   4-1/16"
  • UPC: 878816005980
  • Weight: 2.8
*Warranty: Limited 30 Day Onlinecarstereo.com warranty.
Limited 30 Day warranty from Onlinecarstereo.com implies that repairs must be returned to Onlinecarstereo.com, not the manufacturer. More information can be found in our help section under returns & warranties.
