Fusion :: CSFR6020 :: $29.00

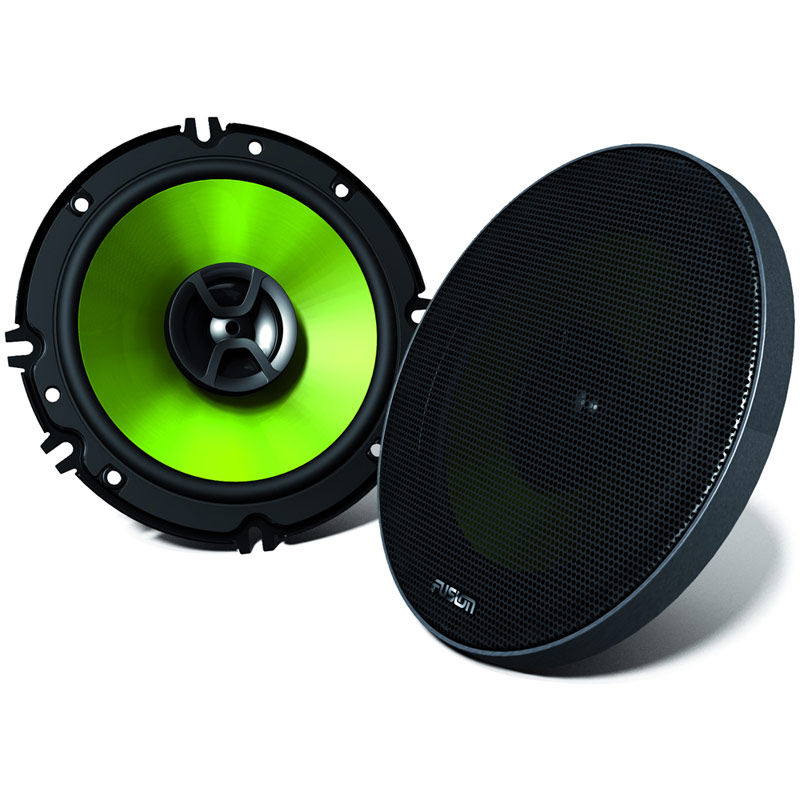

Fusion CSFR6020

Item# 33542

6" 210W 2-Way Shallow Mount Full Range Speakers

Sorry, this product is no longer available.

Power Handling

  • 40W RMS
  • 210W Max

Product Features

  • Shallow Mount Design - Shallow design with flush-profile tweeter for simple “behind panel” installation. Slim-line front grille cover.
  • FFFT Ferro Fluid Filled Tweeters - High heat dissipation - better reliability.
  • Multi-Fit Basket

Product Specifications

  • Basket - Steel Frame
  • Cone Material - Polypropylene
  • Frequency Response  35Hz - 24kHz
  • Peak Power (Watts) - 210
  • Protection Boot - No
  • Rated Power (Watts) - 40
  • Sensitivity (dB) - 85
  • Surround Material - Rubber

Thiele Small Parameters

  • Compliance (Cms) (?M/N) - 213
  • Cone Area (Sd) (cm²) - 120.76
  • D.C. Coil Resistance (Re) (Ohm) - 3.55
  • Diaphragm Mass (Mmd) (Kg) - 0.01037
  • Electrical Q (Qes) - 4.187
  • Force Factor (Bl) (TM) - 2.476
  • Free Air Resonance (Fs) - 103.5
  • Mechanical Q (Qms) - 4.647
  • Total Loudspeaker Q (Qts) - 2.202
  • VAS (CuFt) - 0.155
  • VAS (L) - 4.3889
  • Voice Coil Impedance - 4 Ohm

Mounting Dimensions

  • Mounting Depth   1-11/16"
  • Mounting Diameter    5"
  • UPC: 878816006000
  • Weight: 3.7
*Warranty: 1 Year Onlinecarstereo.com warranty.
1 Year warranty from Onlinecarstereo.com implies that repairs must be returned to Onlinecarstereo.com, not the manufacturer. More information can be found in our help section under returns & warranties.
What's not covered : Misuse, abuse, defacement, physical damage of any kind, and improper installation / operation. Video and multimedia equipment with damaged or cracked screens.Subwoofers and speakers are not warranted against being blown, burned or abused.
