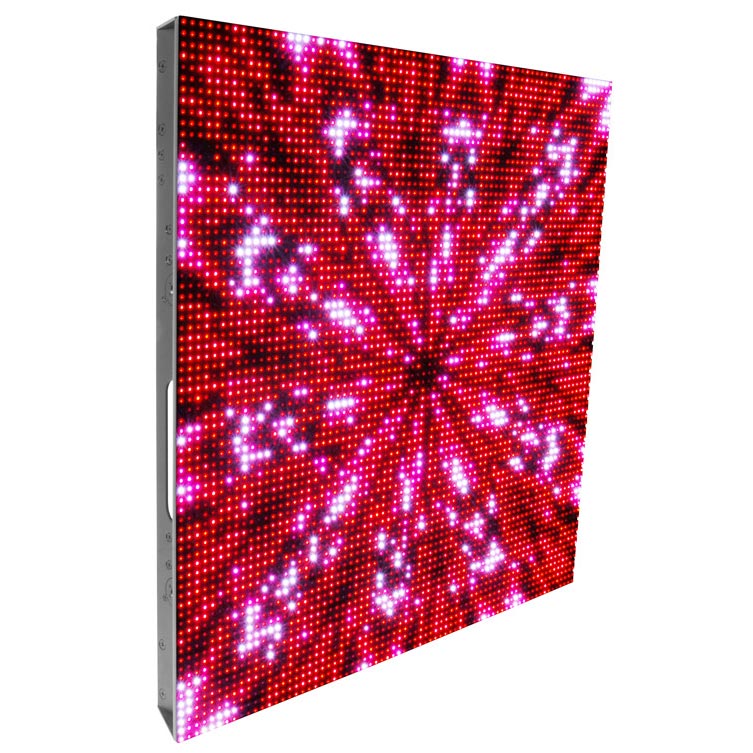

Chauvet MVPTA8CURVEX2 Item# 34516
Tri-Colored SMD LED Modular Video Panel 2-Pack with Road Case & Data Cables
Chauvet :: MVPTA8CURVEX2 :: $6,269.99
MSRP: $9,379.99
Regular Price: $6,699.99
You Save: $3,110.00 (33%)
Our Price: $6,269.99
Condition: Brand New Avg Rating: Not Rated Yet
Free Shipping On This Item
magnifying glass

Please roll over the image to see detail.
Hint: click on the image to see larger image.

Features

General Features:

  • 8.33 mm pixel pitch panels with integrated hardware allows units be hung straight, or in convex/concave curves
  • Innovative rigging hardware lets the panels curve +/-18 degrees, without losing pixel pitch.
  • Superb contrast through the use of blackface SMD LEDs
  • Tight binning of LEDs ensures consistent color rendering across panels
  • Durable and modular system for high-resolution graphics
  • Easy installation and connectivity using Neutrik® powerCON® and etherCON® connectors
  • Solid construction makes these a perfect product for both touring and long term installation
  • Tight pixel pitch allows for equally effective close range and long range viewing
  • Designed for temporary outdoors use and can be viewed during daylight operation
  • Works with VIP™ Driver and VIP™ Signal Distributor
  • Compatible mounting options: MVP™ Curve Rig Kits (truss mounting), or M10 bolt/clamp (rear mounting)
  • Designed for temporary, outdoor use and can be viewed during daylight operation

Specifications:

  • Pixel pitch: 8.33 mm
  • Compatible mounting options: MVP™ Rig Kit (truss mounting), or M10 bolt/clamp (rear mounting)
  • Pixels / screen: 72 x 72 (5,184 total)
  • Pixel density: 14,400/m2
  • Transparency: 12.5%
  • Display rate: 720 Hz
  • Light source: Tri-color SMD 3528 LEDs 50,000 hrs
  • Color wavelengths: Red: 622~627 nm; green: 520~525 nm; blue: 465~470 nm
  • Housing material: Aluminum alloy
  • Viewing angle: 140°
  • Curving angle: ± 18°
  • Illuminance: 4,800 NITS
  • IP rating: IP 54
  • Power linking: 9 units @ 120 V/ 15 units @ 208 V/ 16 units @ 230 V
  • Input voltage: Auto-ranging 100-240 VAC 50/60 Hz
  • Power and current: 231 W, 1.92 A @ 120 V 60 Hz
  • Power and current: 238 W, 1.17 A @ 208 V 60 Hz
  • Power and current: 247 W, 1.12 A @ 230 V 50 Hz
  • Weight: 27 lbs (12.25 kg)
  • Size: 23.6 x 23.6 x 2.6 in (600 x 600 x 66 mm)
  • Approvals: CE



  • Authorized Internet Dealer
*Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 30 days from the original date of purchase with proper return authorization. After the 30 day time period, products must be returned to their original manufacturer for the remainder of the manufacturer's warranty period.
