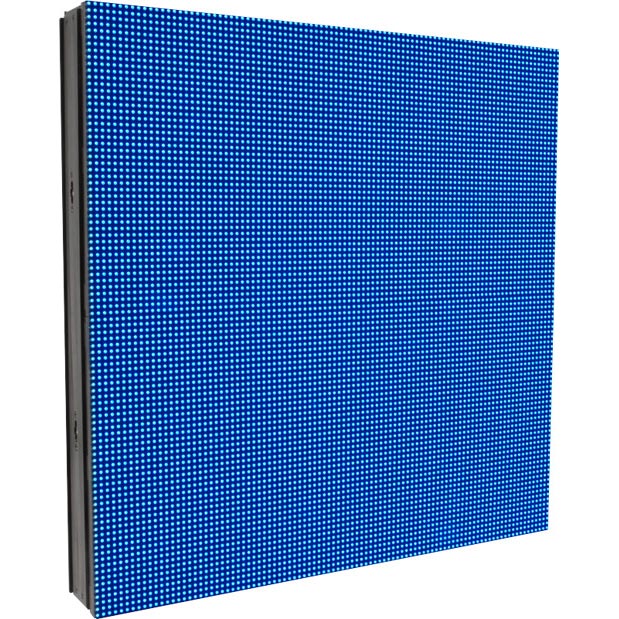

Chauvet  PVPS5X2

5.2mm Pixel Pitch High Definition Video Panel with Blackface SMD LEDs 2-Pack in Road Case and Data Cables

Item #34518

  Free 1-Year Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:


Other products you might be interested in:


Huge Saving on Other items:



SPECIFICATIONS



FEATURES


General Features:

  • 5.2mm pixel pitch video panel system featuring superb contrast through the use of blackface SMD LEDs
  • Tight binning of LEDs ensures consistent color rendering across panels
  • Lightweight and modular system for high-resolution graphics
  • Easy installation and connectivity using Neutrik® powerCON® and etherCON® connectors
  • Solid construction makes these a perfect product for long term installation
  • Interchangeable with the PVP™ S7 panels to create large wall designs
  • Tri-color SMD LEDs provide better image quality and wider viewing angle
  • Tight pixel pitch allows for equally effective close range and long range viewing
  • Designed for touring and permanent indoor installation
  • Use with PVP™ Rigging Kits and integrated, interlocking hardware for fast and easy setup

Specifications:

  • Pixel pitch: 5.2 mm
  • Compatible mounting options: PVP™ Rig Bar (truss mounting), or M10 bolt/clamp (rear mounting)
  • Pixels / screen: 96 x 96 (9,216 total)
  • Pixel density: 36,864 /m2
  • Display rate: 1,200 Hz
  • Light source: Tri-color SMD LEDs 50,000 hrs
  • Color wavelengths: Red: 620-625 nm; green: 520-525 nm; blue: 465-470 nm
  • Housing material: Aluminum alloy
  • Viewing angle: 140°
  • Illuminance: 1,500 NITS
  • IP rating: IP50
  • Power linking: 9 units @ 120 V/ 16 units @ 208 V/ 18 units @ 230 V
  • Input voltage: Auto-ranging 100-240 VAC 50/60 Hz
  • Power and current: 126 W, 1.05 A @ 120 V 60 Hz
  • Power and current: 128 W, 0.62 A @ 208 V 60 Hz
  • Power and current: 129 W, 0.56 A @ 230 V 50 Hz
  • Weight: 16.3 lbs (7.39 kg)
  • Size: 19.7 x 19.7 x 2.5 in (500 x 500 x 63 mm)
  • Approvals: CE



  • UPC:
  • Weight: 0
