Chauvet :: ColoradoDQuad1Tour :: $139.99

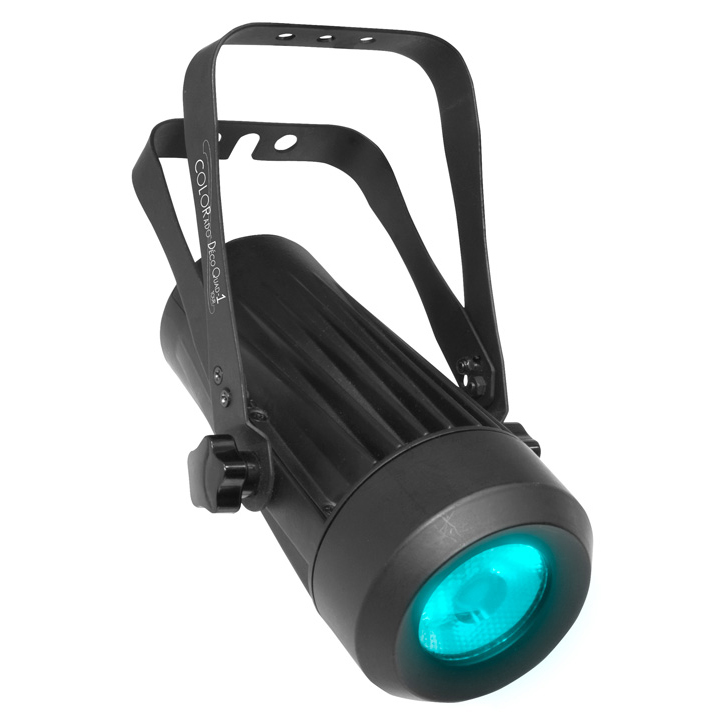

Chauvet ColoradoDQuad1Tour

Item# 34539

Colorado Deco-Quad 1-Tour - Washlight with Single 10W Quad-Colored RGBW LED


Sorry, this product is no longer available.

General Features:

  • Smooth color mixing and fading
  • Five distinct dimming curves
  • Three button LED digital display
  • DMX channels: 3, 4, 5, 6, or 9-channel
  • Operating modes
    • 3-channel: RGB control
    • 3-channel: HSV control
    • 4-channel: Dimmer, RGB control
    • 4-channel: RGBW control
    • 5-channel: Dimmer, RGBW control
    • 6-channel: Dimmer, RGBW control, Strobe
    • 9-channel: Dimmer, RGBW, Macro, Strobe, Auto Program, Auto Program Speed Adjustment
  • Colors LED: RGBW
  • Dimmer: Electronic
  • RGBW color mixing with or without DMX control
  • Built-in automated programs via master/slave or DMX
  • Double-bracket yoke doubles as floor stand
  • Flicker free operation

Specifications:

  • DMX connectors: 5-pin
  • Source: 1 (10 W) Quad LED, 50,000 hours
  • Light source: red   (582mA x 2.44vdc = 1.42W)
    • Green (751mA x 3.86vdc = 2.89W)
    • Blue  (760mA x 3.69vdc = 2.80W)
    • White (762mA x 3.67vdc = 2.79W)
  • Installed Optic: 25°
  • Beam angle: 12.5°
  • Field angle: 24°
  • Lux: 225 lx @ 5 m
  • AC Voltage Range: 100~240 V, 50/60 Hz (auto-ranging)
  • Power Consumption 120 V, 60 Hz: 15 W, 0.122 A (operating)
  • Power Consumption 208 V, 50 Hz: 16 W, 0.075 A (operating)
  • Power Consumption 230 V, 50 Hz: 16 W, 0.070 A (operating)
  • Dimensions: 4.72 x 3.15 x 8.35 in (120 x 80 x 212 mm)
  • Weight: 2.2 lbs (1 kg)
  • Power Connection: Edison
  • Control Connection: 5-pin DMX
  • Certification: CE, MET
  • Environment: IP20, dry location



  • Authorized Internet Dealer
*Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 30 days from the original date of purchase with proper return authorization. After the 30 day time period, products must be returned to their original manufacturer for the remainder of the manufacturer's warranty period.
