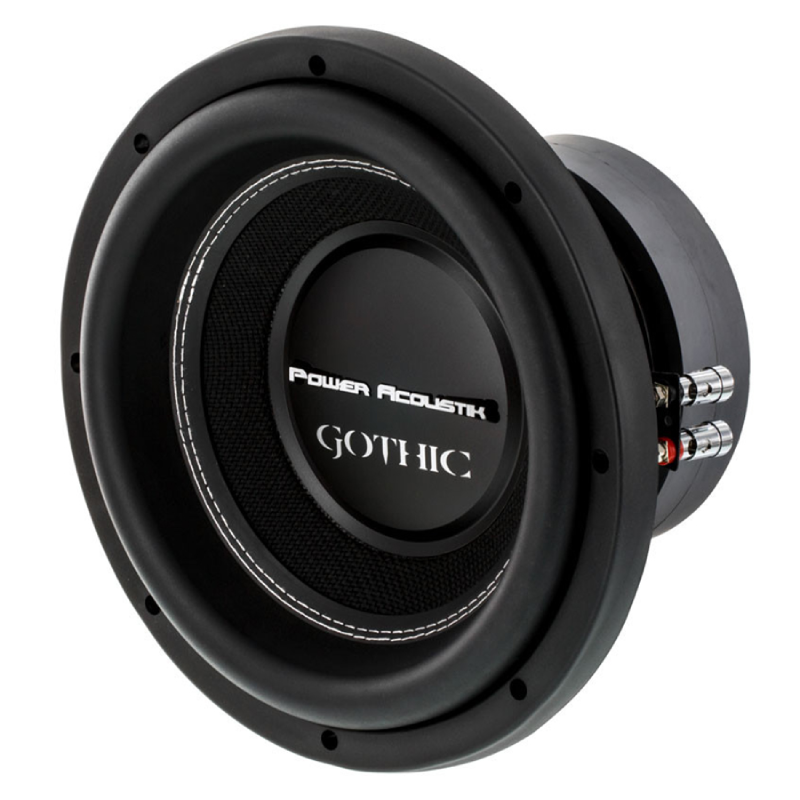

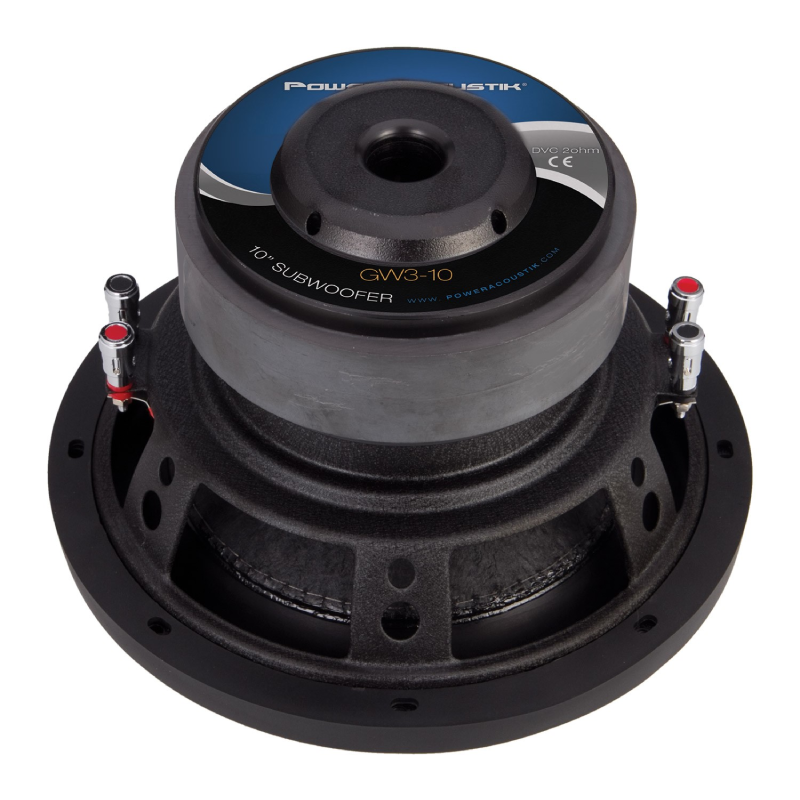

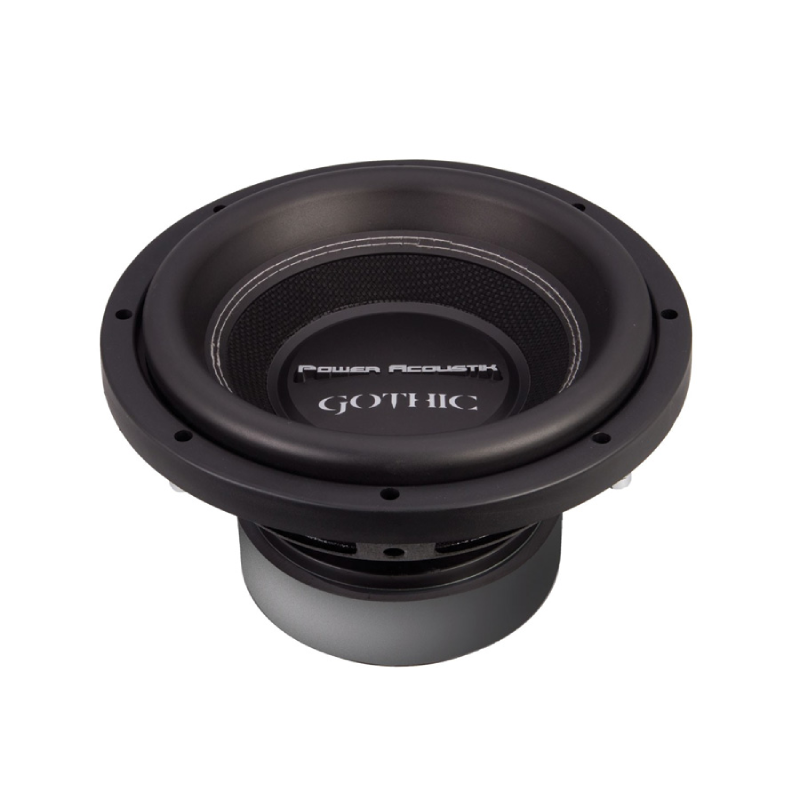

Power Acoustik GW3-10 Gothic Series 10" 2200W Peak Power Handling 2 Ohm, Dual Voice Coil Component Car Subwoofer
We are a Power Acoustik authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 10" 2200W 2 Ohm, Dual Voice Coil Component Car Subwoofer
- • Owner's Manual
Unparalleled Performance
Introducing the GW3-10: a powerhouse subwoofer designed to elevate your audio experience. With a max power handling of 2,200 Watts and RMS power handling of 1,000 Watts, paired with an efficiency rating of 81.3 (1w/1m), this subwoofer delivers unparalleled performance. Featuring a 2.50" dual 2Ω voice coil configuration and a substantial 204oz motor volume, it's engineered for optimal bass response. With a mounting depth of just 6.00", installation is a breeze. Achieve optimal sound quality in either a sealed enclosure of 1.00 ft³ or a ported enclosure of 1.50 ft³. Upgrade your sound system today with the GW3-10.
Durability During Extreme Movement
Experience unrivaled audio performance with our advanced speaker technology. Our twisted and woven flax fiber cone utilizes torsion-twisted Flax fibers woven together for unmatched strength and reduced elasticity, further enhanced with epoxy for superior performance. The extended excursion NBR surround features a strong and flexible heat-resistant compound, nitrile butadiene rubber (NBR), ensuring durability during extreme movement. With integrated venting in the T-Yoke, backplate, and voice coil, heat dissipation is optimized, guaranteeing reliable performance even under the most demanding conditions.
Exceptional Sound Quality
Experience next-level durability and performance with our overcast stitched cone assembly, featuring double overcast stitched surrounds directly to the Flax cone surface. This innovative design enhances durability and ensures optimal performance. Our speaker is equipped with a 100% OFC 4-layer voice coil, boasting a generous 1.50" long, 2.5" diameter construction made of 100% Oxygen-Free Copper (OFC). With a vented Aluminum former, this voice coil improves power handling and efficiency, delivering exceptional sound quality.
- Diameter : 10 Inch
- Sensitivity : 81.3 dB
- Impedance : 2 Ohm
- RMS Power Range : 1000 Watts
- Peak Power Handling : 2200 Watts
- Top Mount Depth : 6.00 Inches
- Shallow Mount : No
- Number of Voice Coils : Dual
- Suggested Sealed Box Volume : 1 Cubic ft.
- Suggested Ported Box Volume : 1.50 Cubic ft.
- Mounting Depth : 6.00 Inches
- RMS Power Handling : 1000 Watts
Features:
- Twisted & Woven Flax Fiber Cone: Utilizes torsion twisted Flax fibers woven together for ultimate strength and reduced elasticity, enhanced with epoxy for superior performance.
- Extended Excursion NBR Surround: Features strong and flexible heat-resistant compound, nitrile butadiene rubber (NBR), for durability during extreme movement.
- Back Plate & T-Yoke Venting: Integrated venting in the T-Yoke, backplate, and voice coil dissipates heat, ensuring reliable performance under demanding conditions.
- Overcast Stitched Cone Assembly: Double overcast stitched surrounds directly to the Flax cone surface, enhancing durability and performance.
- 100% OFC 4-Layer Voice Coil: Generous 1.50" long, 2.5" diameter 100% Oxygen-Free Copper (OFC) voice coils with vented Aluminum former for improved power handling and efficiency.
Specifications:
- Model: GW3-10
- Max Power Handling: 2,200 Watts
- RMS Power Handling: 1,000 Watts
- Efficiency (1w/1m): 81.3
- Voice Coil Configuration: 2.50" Dual 2Ω
- Motor Volume: 204oz
- Mounting Depth: 6.00"
- Optimum Sealed Enclosure ft³: 1.00
- Optimum Ported Enclosure ft³: 1.50
Recommended Enclosure Specifications:
- Recommended Enclosure Type: Ported / Vented, Sealed
- Minimum Sealed Box Volume: 0.75 cubic feet
- Optimum Sealed Box Volume: 1.0 cubic feet
- Minimum Ported Box Volume: 1.0 cubic feet
- Optimum Ported Box Volume: 1.5 cubic feet
- Top-Mount Depth (Mounting Depth): 6 inches
- Shallow Mount Installation: No
Electromechanical Parameters:
- Free-Air Resonance (Fs): 35.29 Hz
- Equivalent Compliance (Vas): 30.38 liters
- Total Speaker Q Value (Qts): 1.1542
- Electrical Q Value (Qes): 1.4673
- Electrical Resistance of Voice Coil (Re): 2.2493 ohms
- Mechanical Q Value (Qms): 5.4091
- UPC: 709483046443
- Weight: 18
- Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 year from the original date of purchase with proper return authorization.
