Item# 35647
JL Audio 1200/1v3 - $1,199.99
Please roll over the image to zoom in. Click on the image to see larger image.

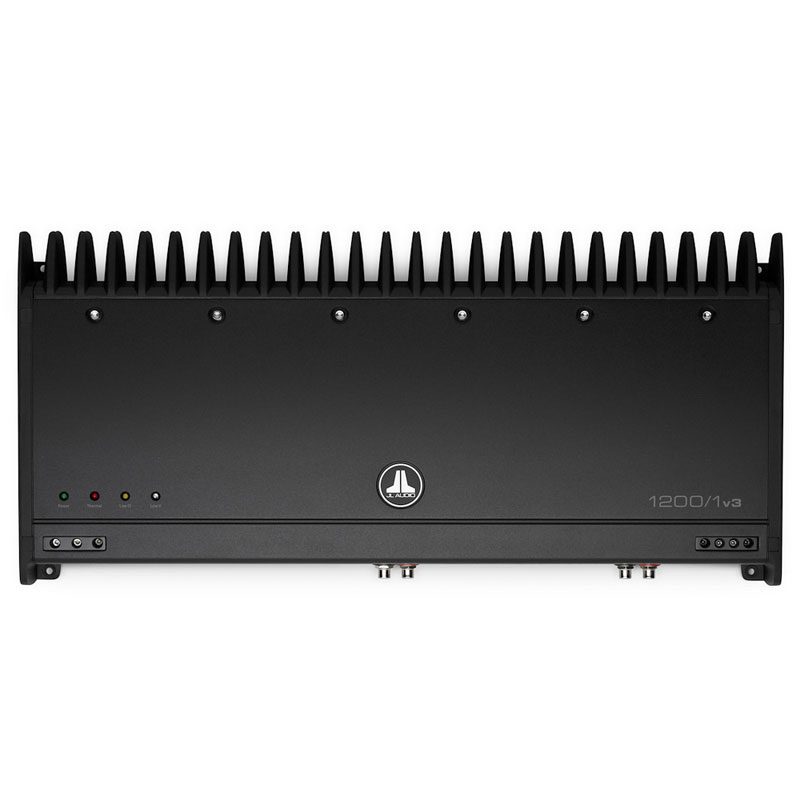

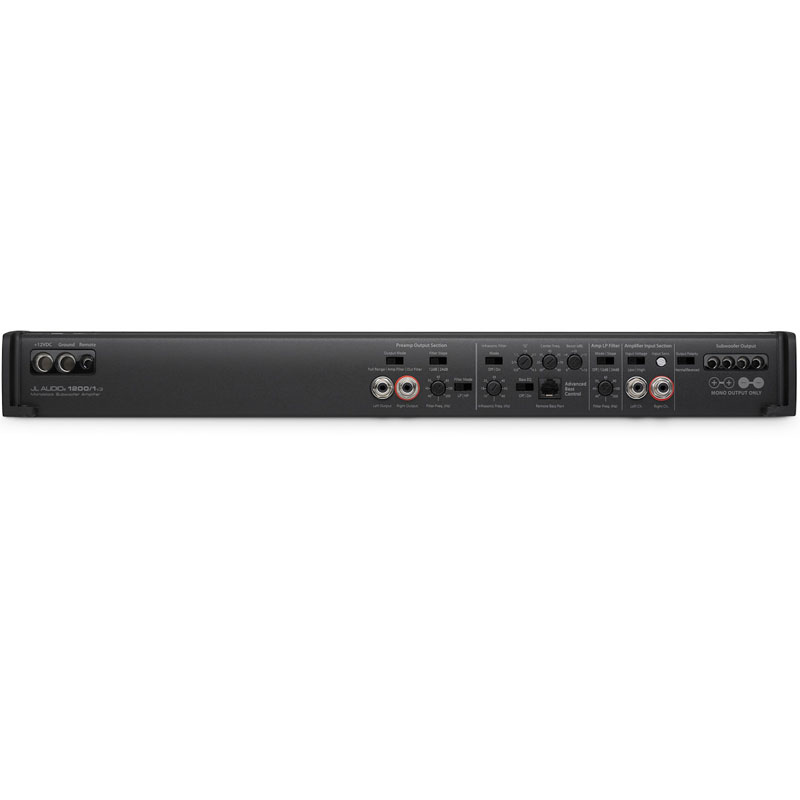

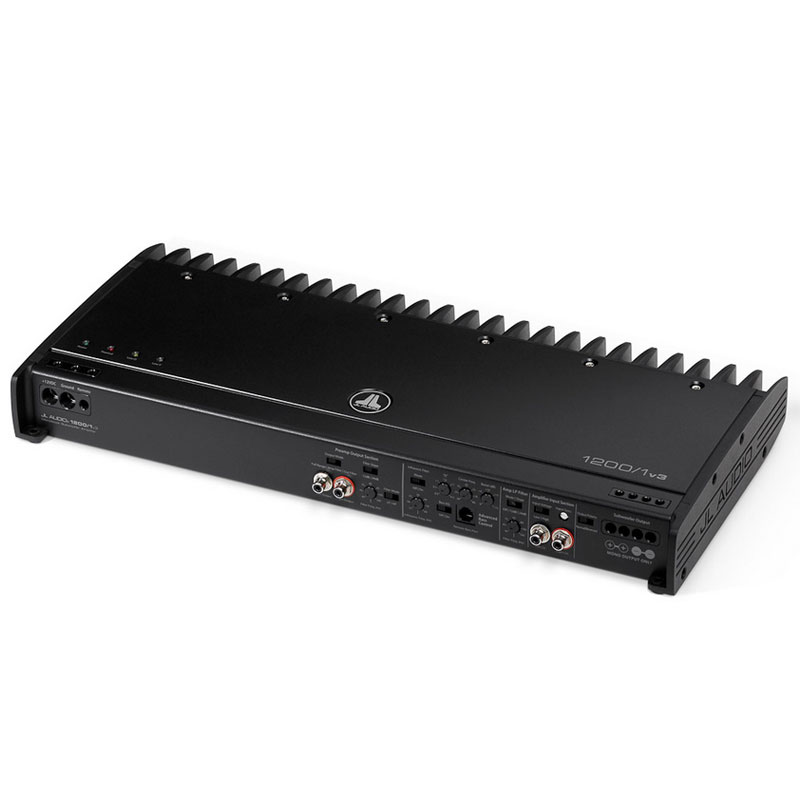

JL Audio 1200/1v3 (98352)

Item# 35647

Condition:  Brand New

  • comments
  • email
  • Facebook
  • Twitter
  • Print

Review this product

Mono Car Subwoofer Amplifier 1,200W RMS x 1

Savings Of:
Your Price $1,199.99

FREE Shipping in US 48!

vehicle fit guide

This high-powered icon has made its mark over a decade-long production run, thanks to its prodigious real-world power delivery, fidelity and ruggedness. Efficient Class D technology with a patented control circuit and JL Audio's signature R.I.P.S. power supply design ensure full power delivery (1200 W) over a wide range of load impedances and vehicle voltages.

The 1200/1v3 also boasts a very complete set of signal processing features, including a parametric bass EQ and fully variable infrasonic filter. This amplifier features an all-black look that is pure, sexy evil, including the powder-coated cast alloy heat sink and end caps.

General Features:

  • Slash v3 Series Class D Monoblock Car Amplifier
  • RMS Power Rating (11V-14.5V):
  • 4 ohms: 1200 watts x 1 chan.
  • 3 ohms: 1200 watts x 1 chan.
  • 2 ohms: 1200 watts x 1 chan.
  • 1.5 ohms: 1200 watts x 1 chan.
  • Subsonic ("Infrasonic") Filter: 15 - 60 Hz
  • Advanced Bass Control:
  • "Q" Bandwidth Control: 0.5 - 4.3
  • Center Frequency: 20 - 85 Hz
  • EQ Boost Control: 0 - +15 dB
  • Selectable output frequency mode: LP / HP
  • Selectable output frequency slop: 12 dB / 24dB
  • Output filter cutoff frequency: 40 - 200 Hz
  • Total Harmonic Distortion: <0.05% @ 4Ω , 50 Hz
  • Signal to Noise Ration: >95 dB
  • Frequency response: 5 - 250 Hz (+0, -3 dB)
  • Damping Factor: >500 @ 4Ω/50 Hz, >250 @ 2Ω/50 Hz
  • Inline 100A x 1 ANL or MaxiFuse Recommended
  • Dimensions: 19.70"L x 9.25"W x 2.36 "H
  • High-Damping H-Bridge, Class D Mono Circuit
  • R.I.P.S. - Regulated, Intelligent Power Supply
  • Pulse width modulation-regulated switching power supply
  • LED power/thermal/low-impedance/low-voltage indicators
  • Differential-balanced input type with RCA jack inputs
  • Speaker level inputs via RCA, JL Audio XD-CLRAIC2-SW required
  • Single-band, fully parametric equalizer with "Q" and boost adjustment
  • Preamp RCA outputs w/ crossover filter options
  • Remote bass port input (JL Audio RBC-1 sold separately)
  • Input sensitivity:
  • Low level: 200mV-2V
  • High level: 800mV-8V
  • State-variable, 12 dB/octave Butterworth or 24 dB/octave Linkwitz-Riley LPF
  • Variable low-pass filter: 40 - 200 Hz
  • Fully variable, 24 dB/octave Butterworth HPF
  • Product Highlights:
  • mono subwoofer amplifier
  • 1,200 watts RMS x 1 at 1.5 to 4 ohms
  • Regulated, Intelligent Power Supply system
  • differential-balanced inputs
  • variable low-pass filter (40-200 Hz, 12 or 24 dB/octave)
  • parametric EQ bass boost (0-15 dB at 20-80 Hz)
  • variable infrasonic filter (15-60 Hz, 24 dB/octave)
  • optional wired remote bass boost
  • Class-D amplifier design
  • MOSFET power and output stages
  • preamp and speaker-level inputs (speaker-level input requires an optional adapter)
  • preamp outputs
  • 4-gauge power and ground leads and a 100-amp fuse recommended — wiring and hardware not included with amplifier
  • no onboard fuses — when installing multiple amps in a system, an additional 100-amp in-line fuse between the distribution block and the amplifier is recommended
  • 19-3/4"W x 2-3/8"H x 9-7/8"D
  • UPC: 699440983525
  • Weight: 20
  • Sku: 98352
*Warranty: 1 Year Onlinecarstereo.com warranty.
1 Year warranty from Onlinecarstereo.com implies that repairs must be returned to Onlinecarstereo.com, not the manufacturer. More information can be found in our help section under returns & warranties.
What's not covered : Misuse, abuse, defacement, physical damage of any kind, and improper installation / operation. Video and multimedia equipment with damaged or cracked screens.Subwoofers and speakers are not warranted against being blown, burned or abused.
